Door Courtesy Switch Circuit
Door Courtesy Switch CircuitCIRCUIT DESCRIPTION
The door courtesy switch goes ON when the door is opened and goes OFF when the door is closed.

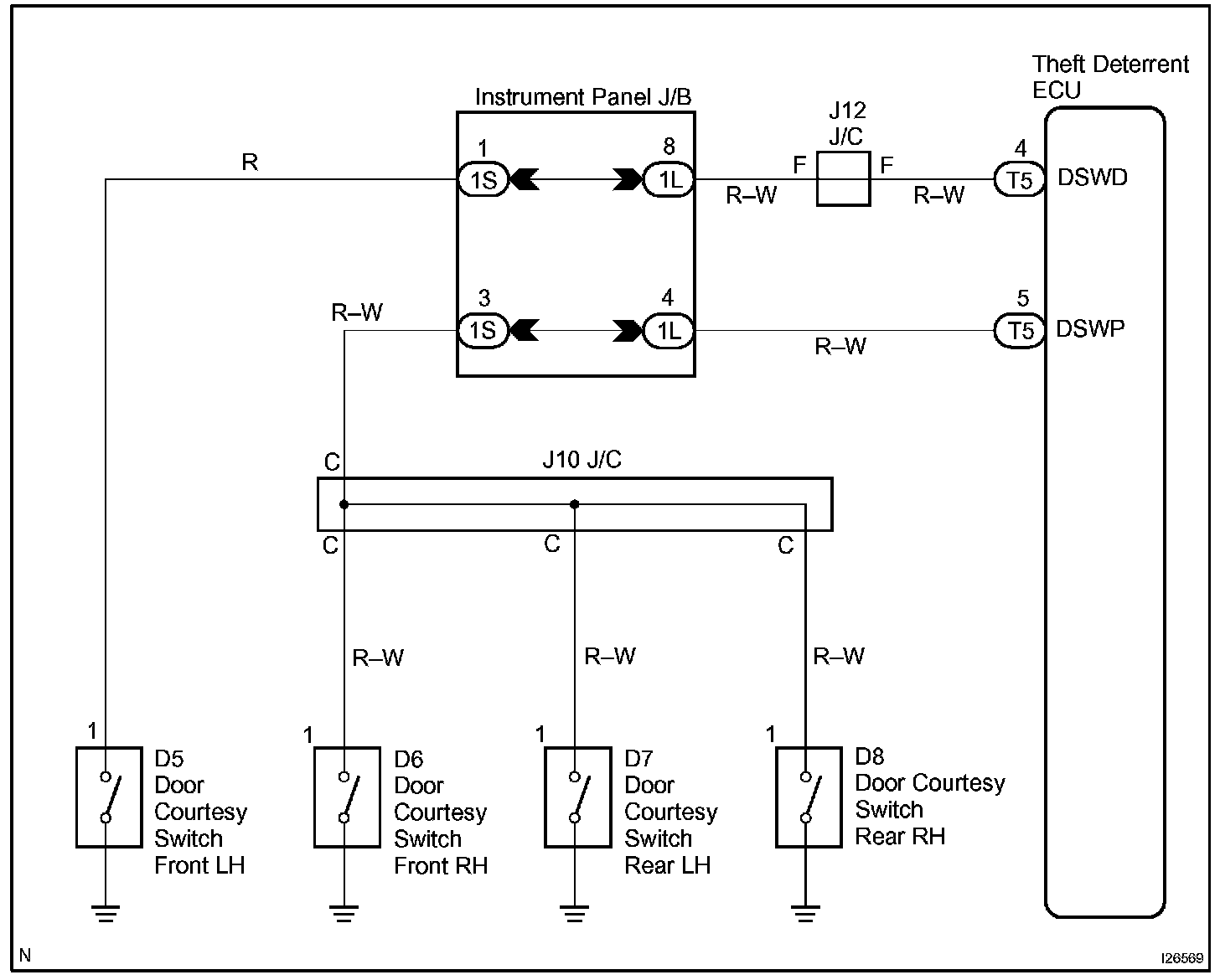

Wiring Diagram:
Step 1 - 2:

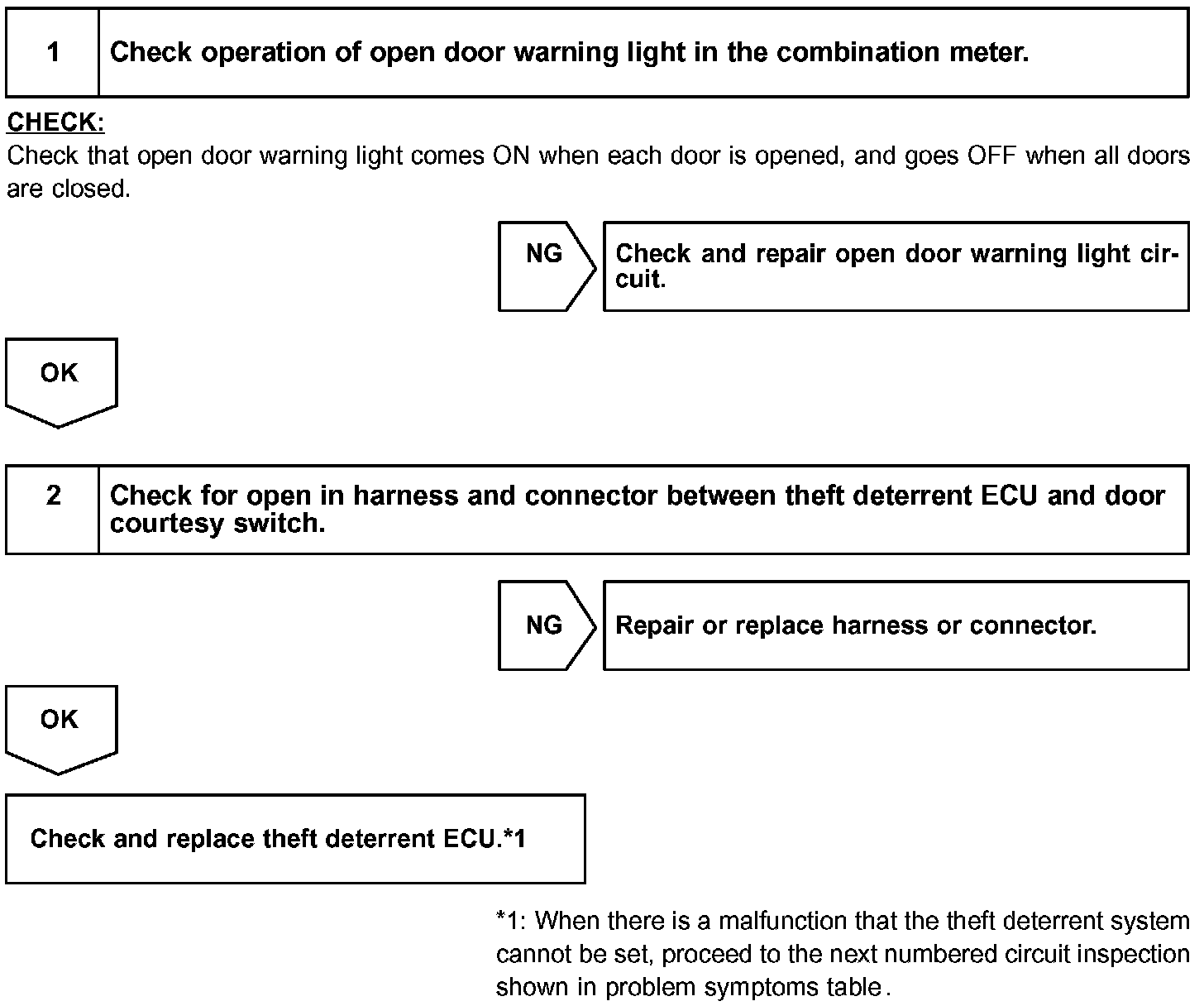

INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
The door courtesy switch goes ON when the door is opened and goes OFF when the door is closed.
INSPECTION PROCEDURE
