Engine Hood Courtesy Switch Circuit

Engine Hood Courtesy Switch Circuit

CIRCUIT DESCRIPTION

The engine hood courtesy switch is built into the engine hood lock assembly and goes ON when the engine hood is opened and goes OFF when the engine hood is closed.

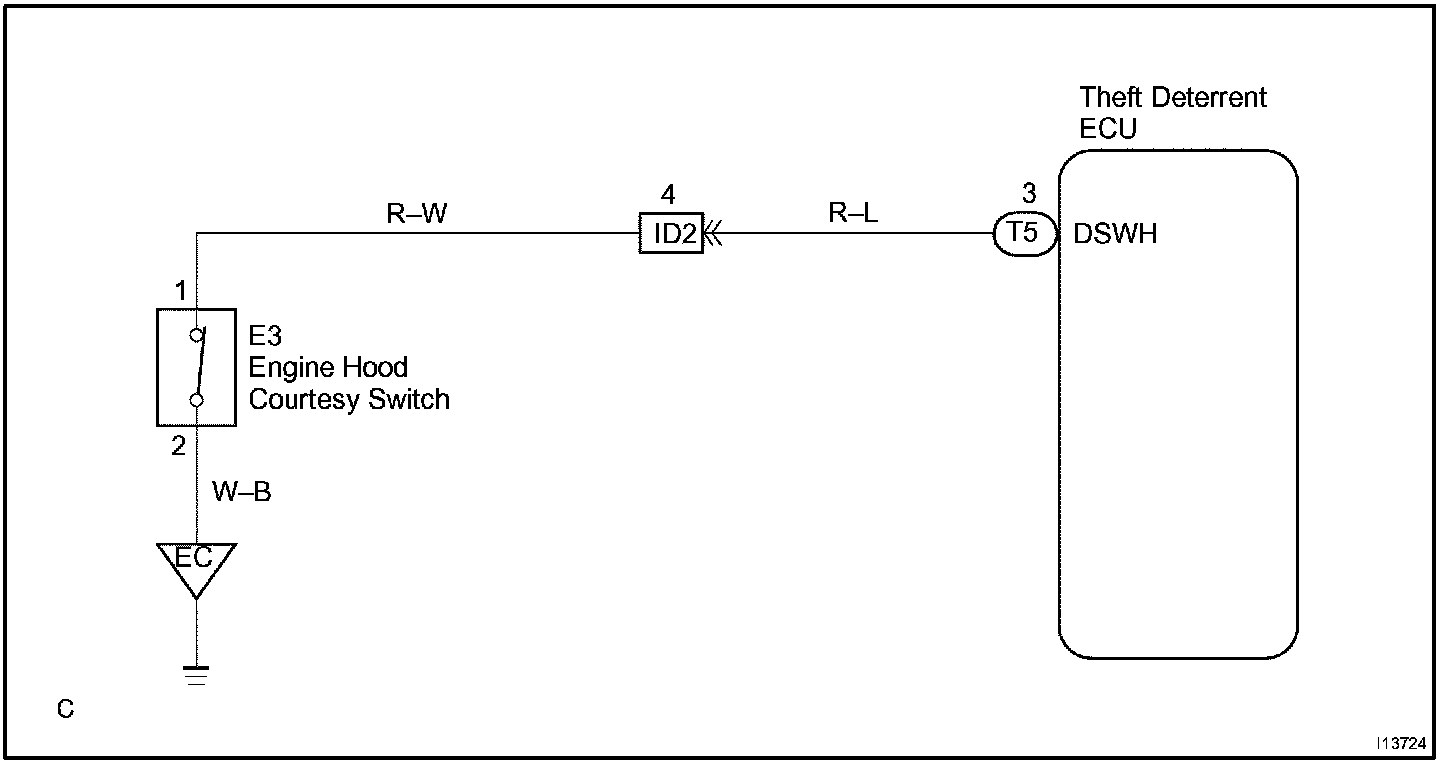

Wiring Diagram:

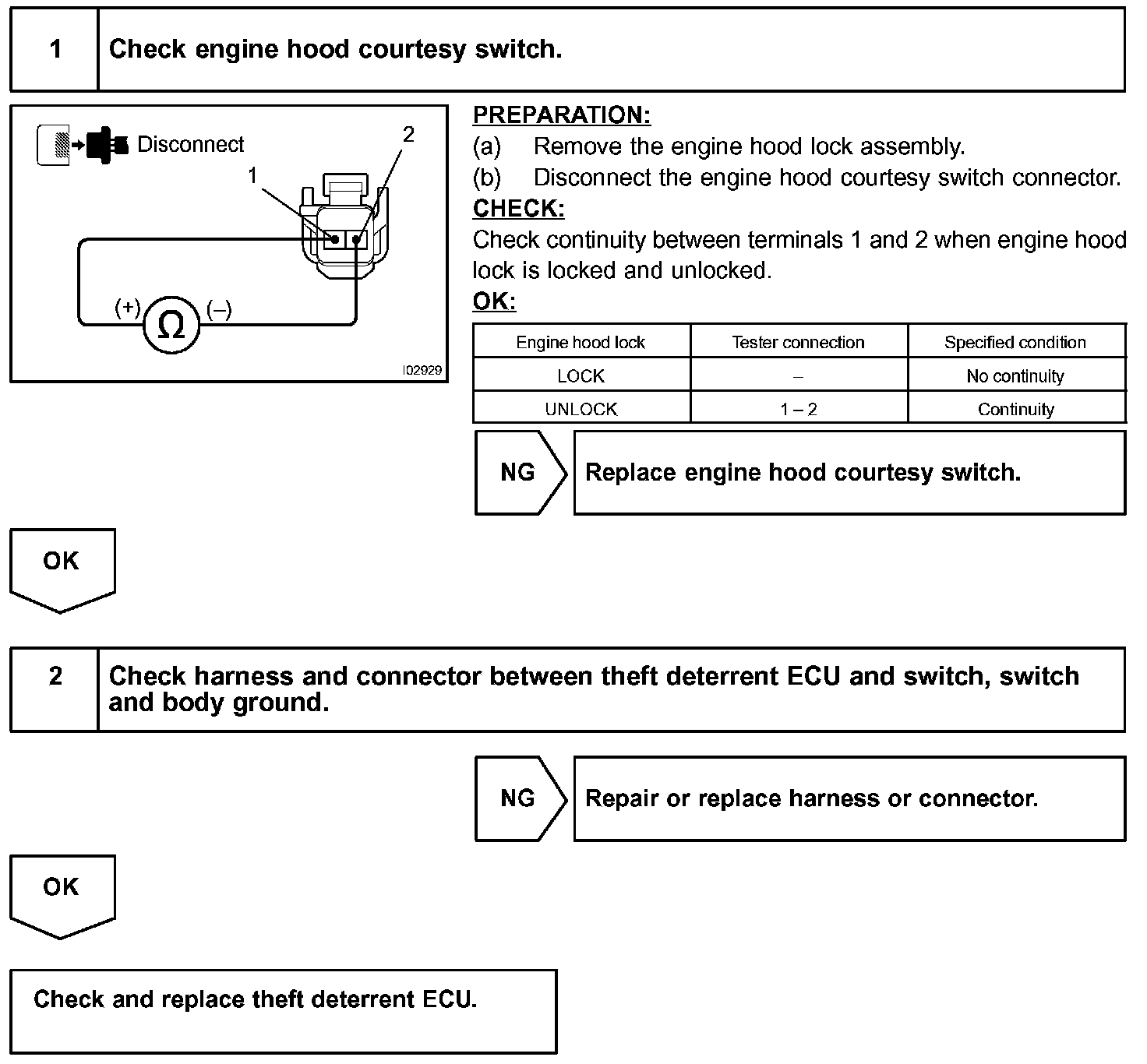

Step 1 - 2:

INSPECTION PROCEDURE
