Clearing Diagnostic Trouble Codes

AUDIO SYSTEM

NOTE: This is the only information provided by the manufacturer for clearing diagnostic trouble codes for this system.




Diagnosis memory clear
1. After error is fixed, start up the diagnosis mode.
2. Continue pressing "5" of PRESET switch for 2 secs. (CLR is displayed.)

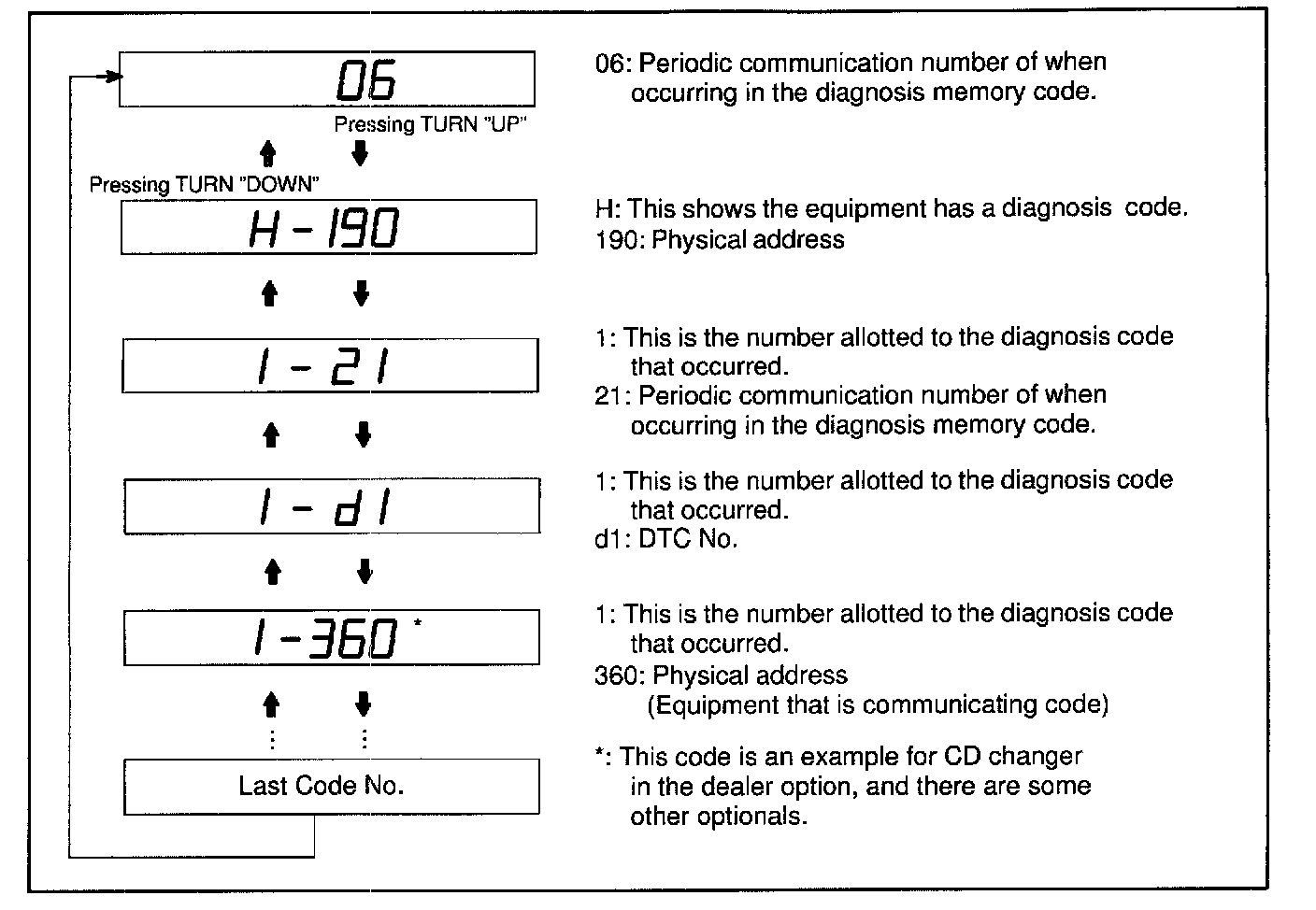

3. Press the "2" of PRESET switch and transfer to the diagnosis memory mode and check that the normal code (00) is output.
