Front Door (Hatchback)

ADJUSTMENT




1. ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS

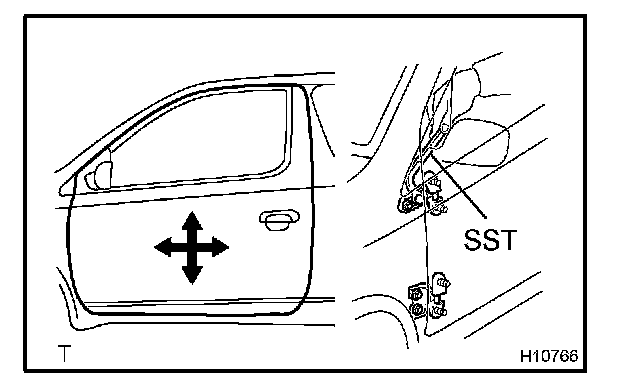

Using SST, adjust the door by loosening the body side hinge bolts.

SST 09812 00010

Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

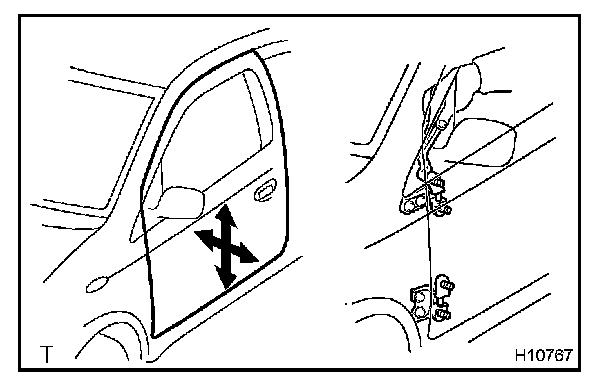

2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Adjust the door by loosen the door side hinge bolts.

HINT: Substitute the standard bolt for the centering bolt.

Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

3. ADJUST DOOR LOCK STRIKER




a. Check that the door is fit and door lock linkages are adjusted correctly.
b. Adjust the door lock striker by loosening the striker mounting screws.

Torque: 23 N.m (230 kgf.cm, 17 ft.lbf)

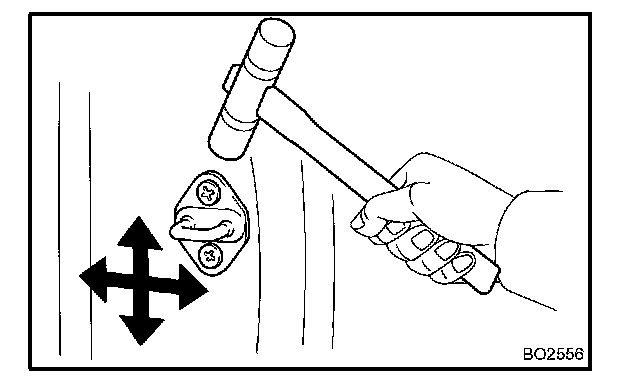

c. Using a plastic hammer, tap the striker to adjust it.
