Rear Door (Sedan)

ADJUSTMENT

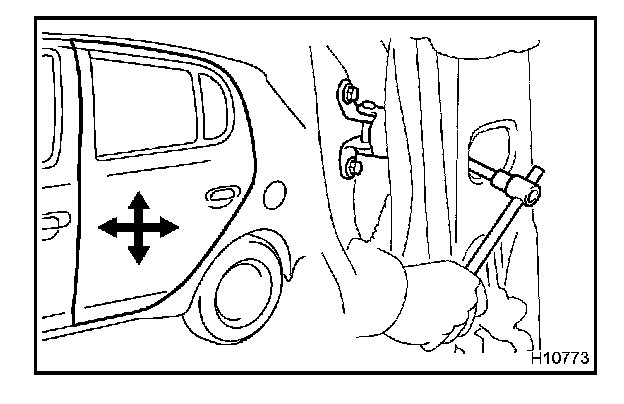

1. ADJUST DOOR IN FORWARD/REARWARD AND VERTICAL DIRECTIONS




a. Remove the front and rear door scuff plates.
b. Remove the center pillar lower garnish.
c. Remove the front seat outer belt.
d. Adjust the door by loosening the body side hinge nuts.

Torque: 26 N.m (260 kgf.cm, 19 ft.lbf)

e. Install the front seat outer belt and center pillar lower garnish.
f. Install the front and rear door scuff plates.

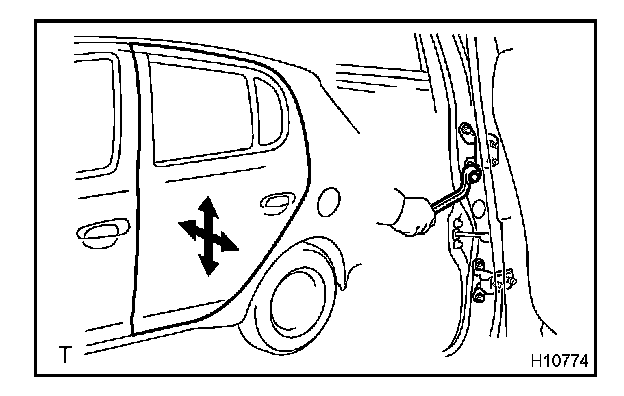

2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS
Adjust the door by loosening the door side hinge bolts to adjust.

Torque: 26 N.m (260 kgf.cm, 19 ft.lbf)

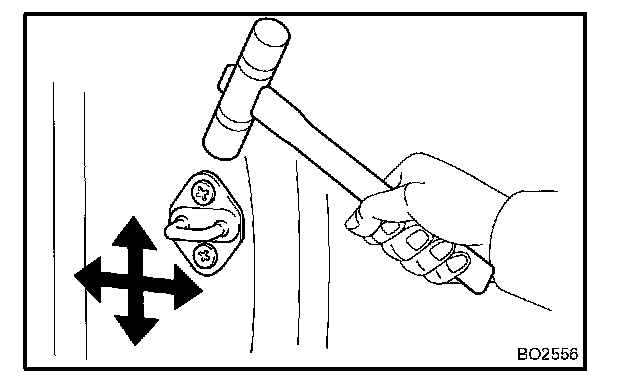

3. ADJUST DOOR LOCK STRIKER




a. Check that the door is fit and door lock linkages are adjusted correctly.
b. Adjust the door lock striker by loosening the striker mounting screws.

Torque: 23 N.m (230 kgf.cm, 17 ft.lbf)

c. Using a plastic hammer, tap the striker to adjust it.
