Luggage Compartment Door and Hinge (Sedan)

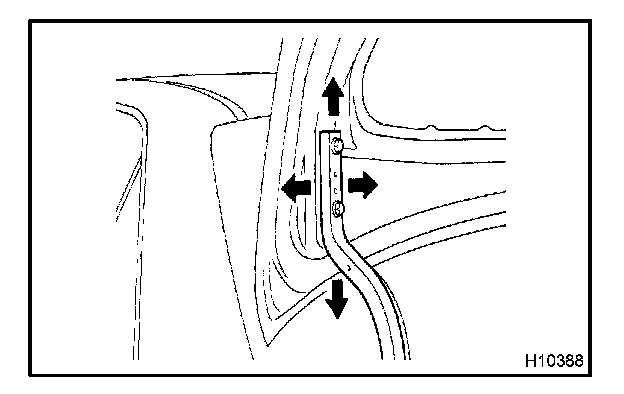

ADJUSTMENT1. ADJUST LUGGAGE COMPARTMENT DOOR
a. Loose the bolts for forward/rearward and left/right adjustments loosen.
b. For vertical adjustment of front end of the door, increase or decrease the number of washers between the hinge and the door.
c. Tighten the bolts again.
Torque: 8.0 N.m (85 kgf.cm, 74 in.lbf)

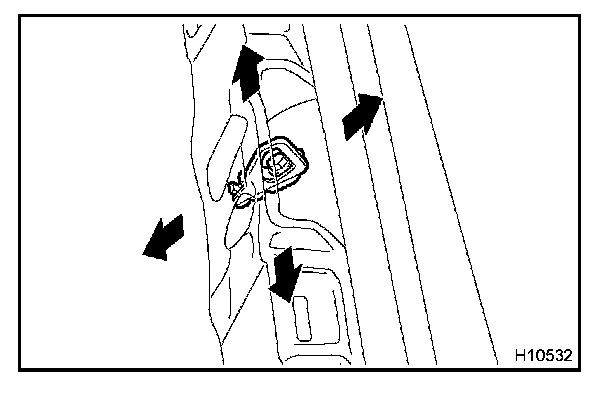

2. ADJUST DOOR LOCK STRIKER
a. Loosen the 2 bolts.
b. Using a hammer and brass bar, tap the striker to adjust it.
c. Tighten the 2 bolts again.
Torque: 5.0 N.m (50 kgf.cm, 43 in.lbf)
