Diesel Data: Automotive Repair
Home >> Toyota >> 2004 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Initial Inspection and Diagnostic Overview

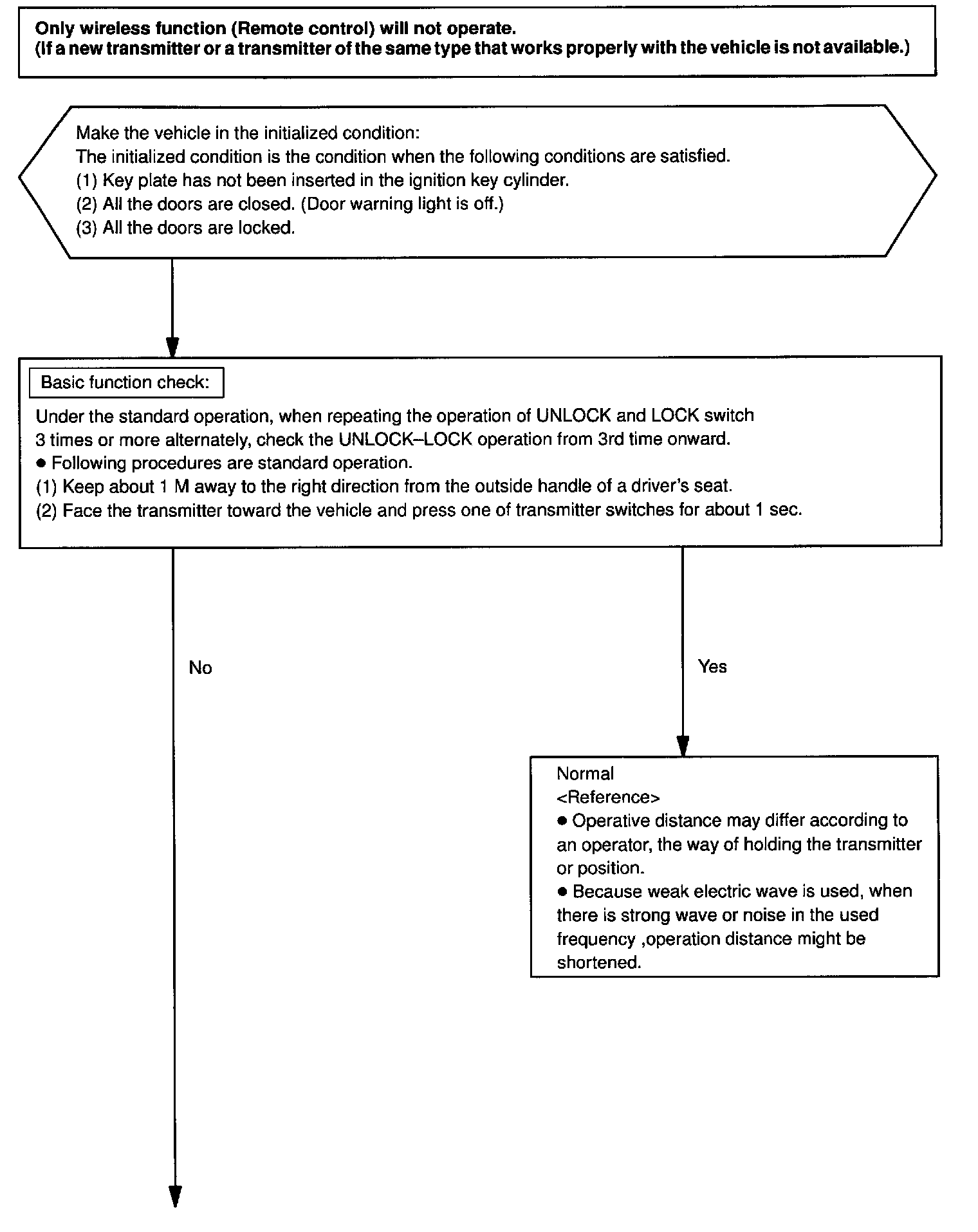

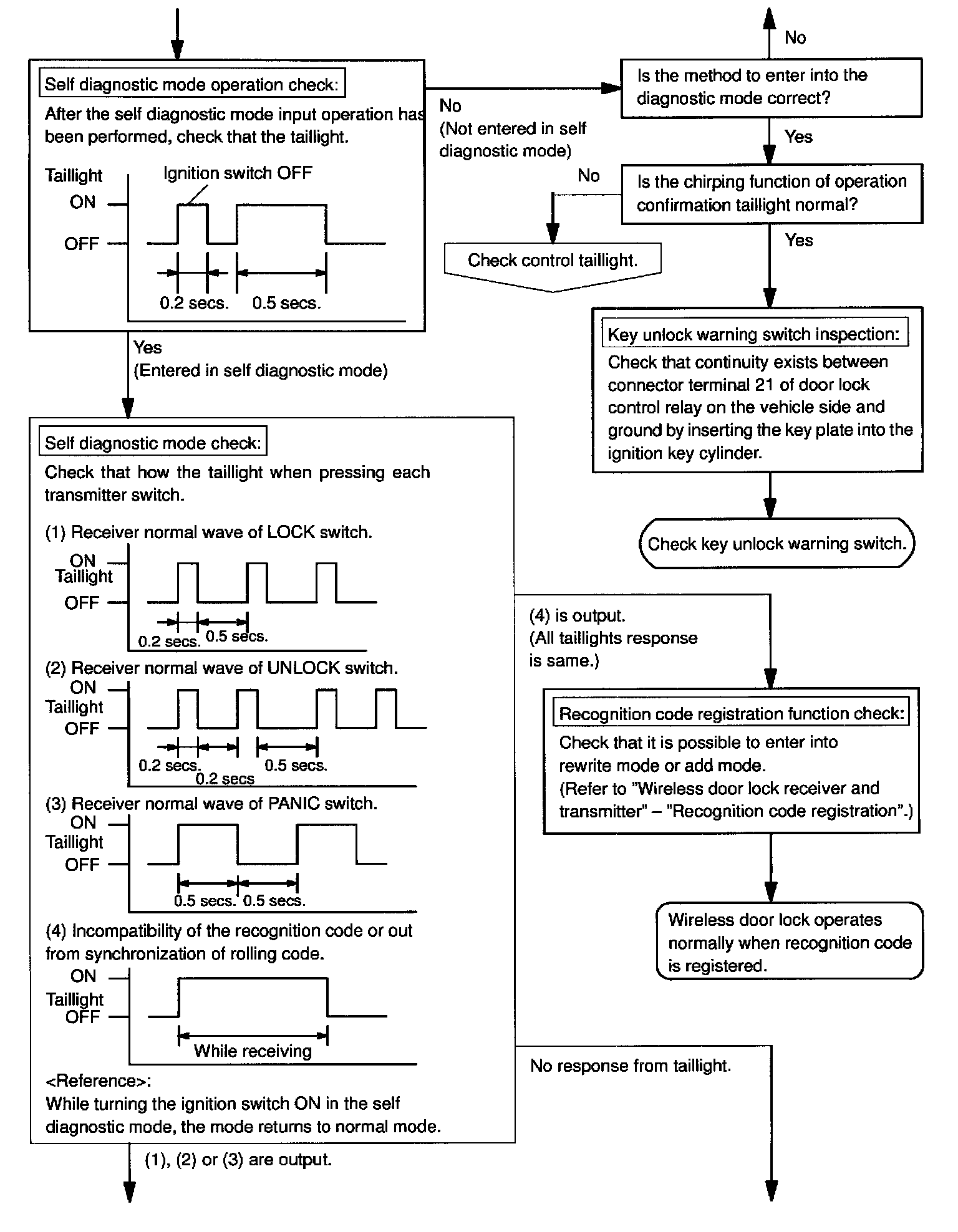

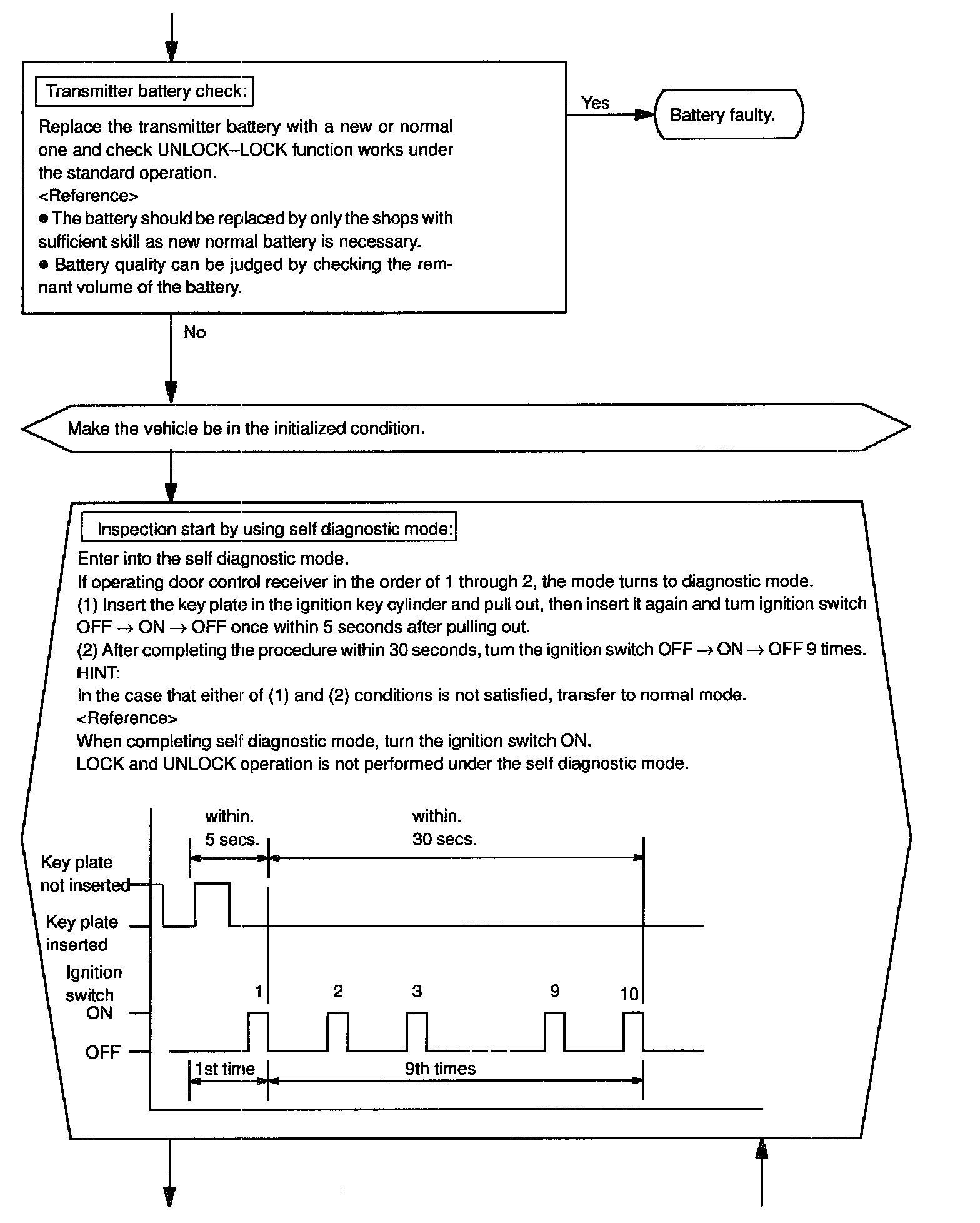

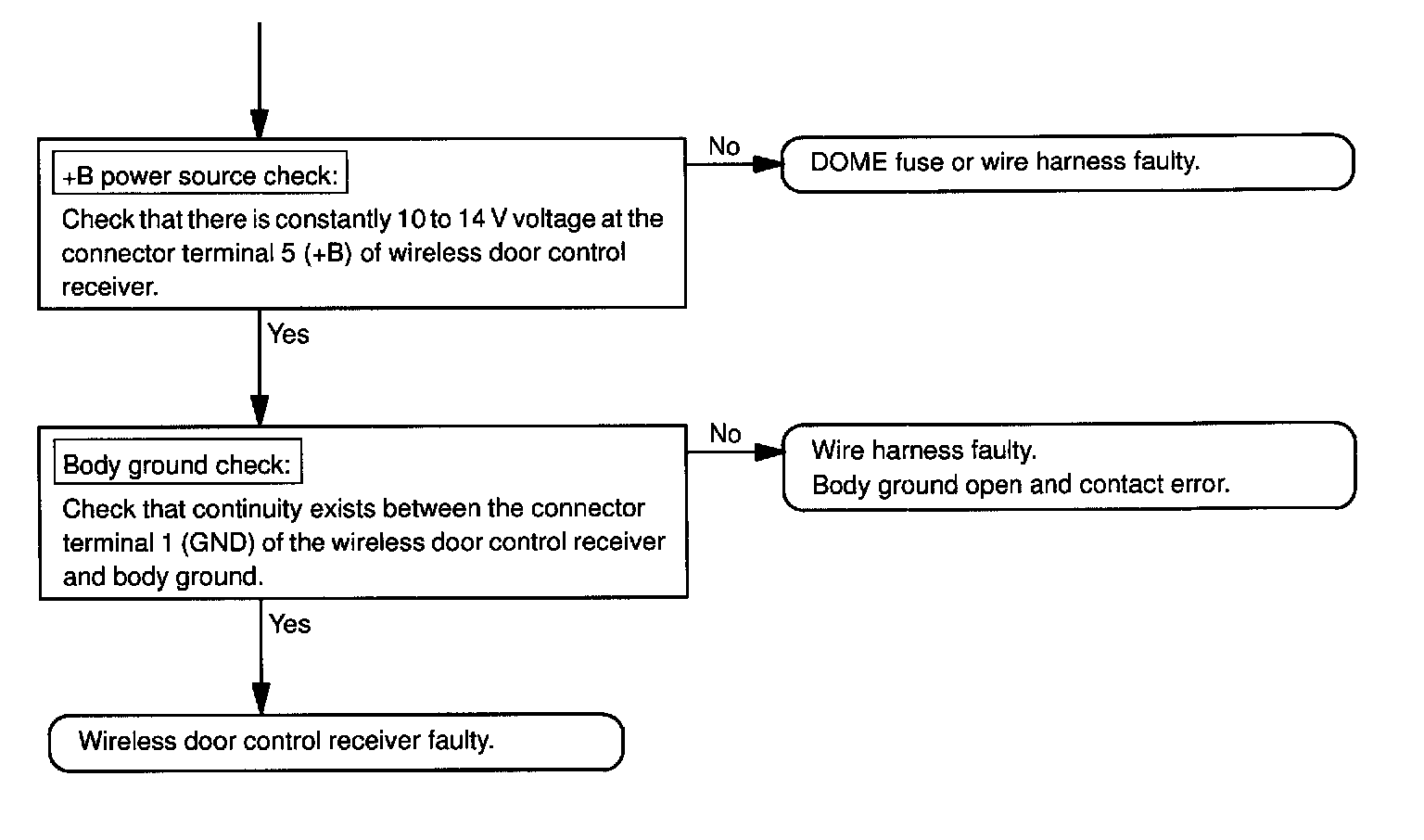

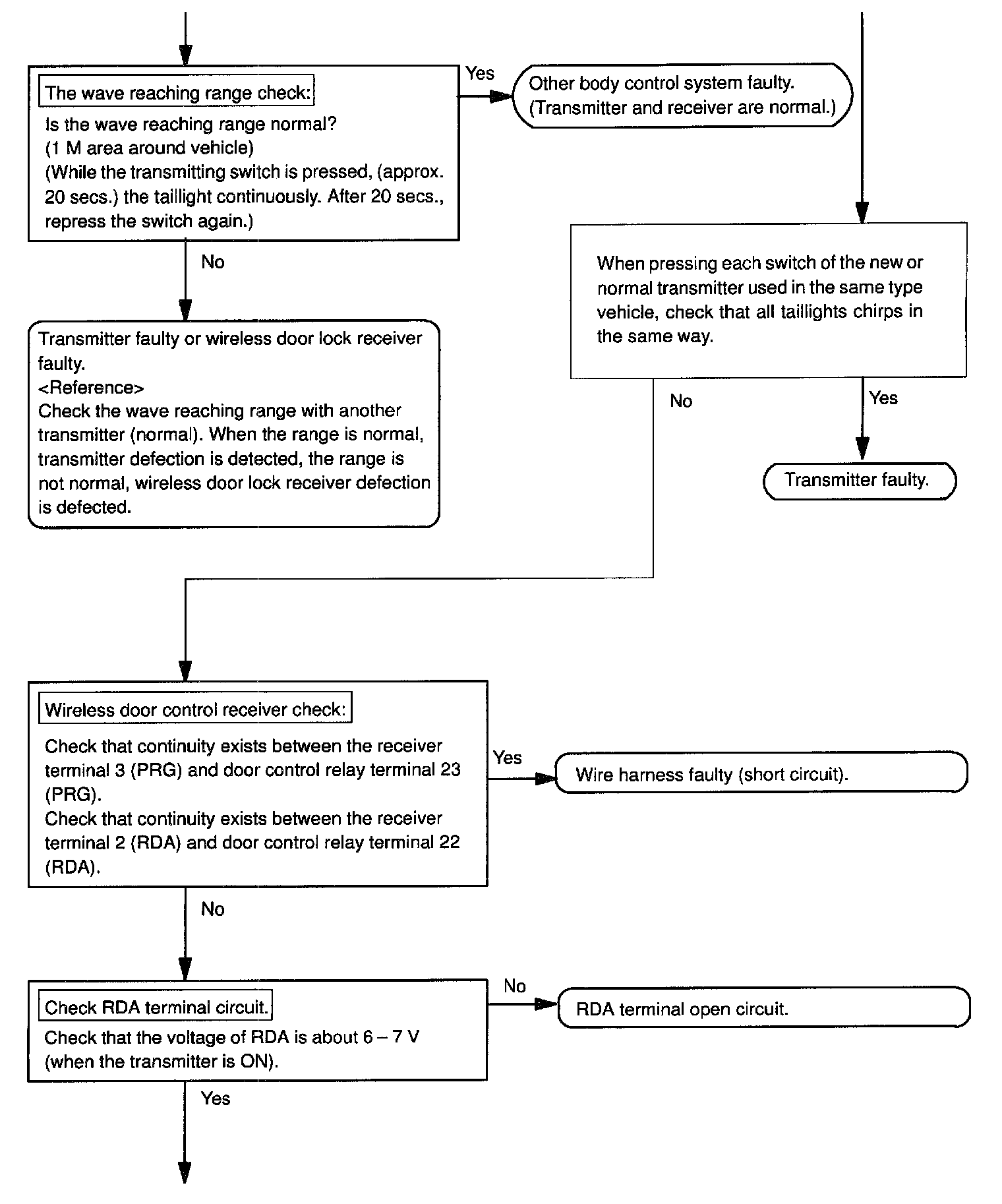

Initial Inspection and Diagnostic Overview

Part 1:



Part 2:



Part 3:



Part 4:



Part 5:
