Hydraulic Control Assembly - Antilock Brakes: Service and Repair
REMOVAL
1. DISCONNECT CONNECTOR FROM ABS ACTUATOR ASSEMBLY
2. REMOVE BATTERY
3. REMOVE NUTS OF ENGINE ROOM RELAY BLOCK NO. 2, AND MOVE ENGINE ROOM RELAY BLOCK NO. 2 ASIDE
4. DISCONNECT BRAKE LINES

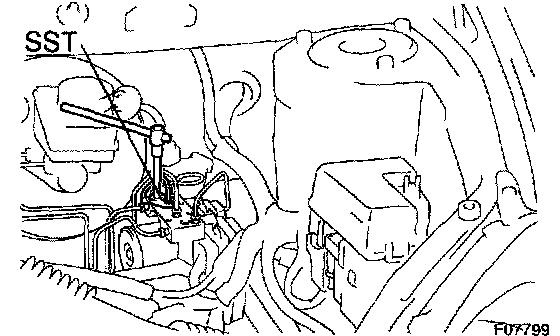

Using SST disconnect the 6 brake lines from the ABS actuator assembly.
SST 09023-00100
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)
5. REMOVE ABS ACTUATOR ASSEMBLY
Remove the 3 bolts and ABS actuator assembly.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)
6. REMOVE ABS ACTUATOR
a. Remove the 3 nuts and ABS actuator from the actuator bracket.
Torque: 4.7 Nm (48 kgf-cm, 42 inch lbs.)
b. Remove the 3 holders from the ABS actuator.
7. REMOVE BOLT AND CLAMP FROM ABS ACTUATOR
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)
INSTALLATION
Installation is in the reverse order of removal.
HINT:
^ After installation, fill the brake reservoir with brake fluid and bleed brake system.
^ Check for leaks.
