Without Scan Tool

CHECK THE DTC




a. Check the indicator
When the ignition switch is turned ON, check that the ABS warning light goes on for approx. 3 seconds.

HINT: If the indicator check result is not normal, proceed to troubleshooting for the ABS warning light circuit.

b. In case of not using TOYOTA hand held tester:
Check the DTC.

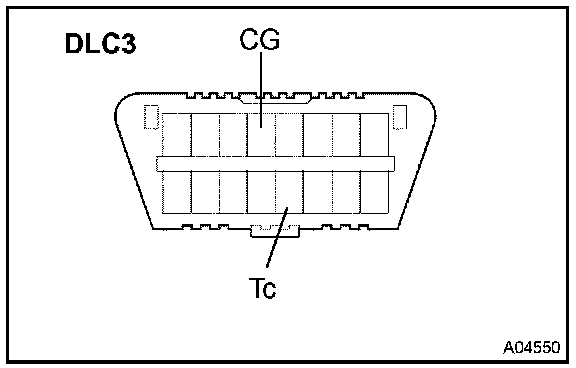

1. Using SST, connect terminals Tc and CG of DLC3.

SST 09843 18040

2. Turn the ignition switch ON.
3. Read the DTC from the ABS warning light on the combination meter.






HINT:
- If no code appears, inspect the diagnostic circuit or ABS warning light circuit.

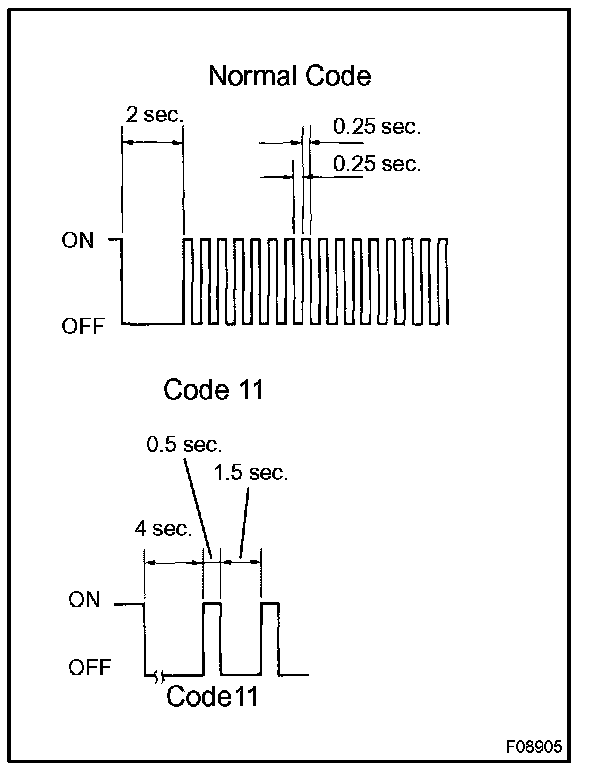

- As an example, the blinking patterns for normal code and codes 11 are shown.

4. Codes are explained in the code table.
5. After completing the check, disconnect terminals Tc and CG, and turn off the ignition switch.

Even if 2 or more malfunctions are detected, the lowest numbered DTC will be displayed.
