Diesel Data: Automotive Repair
Home >> Toyota >> 2004 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Diagrams

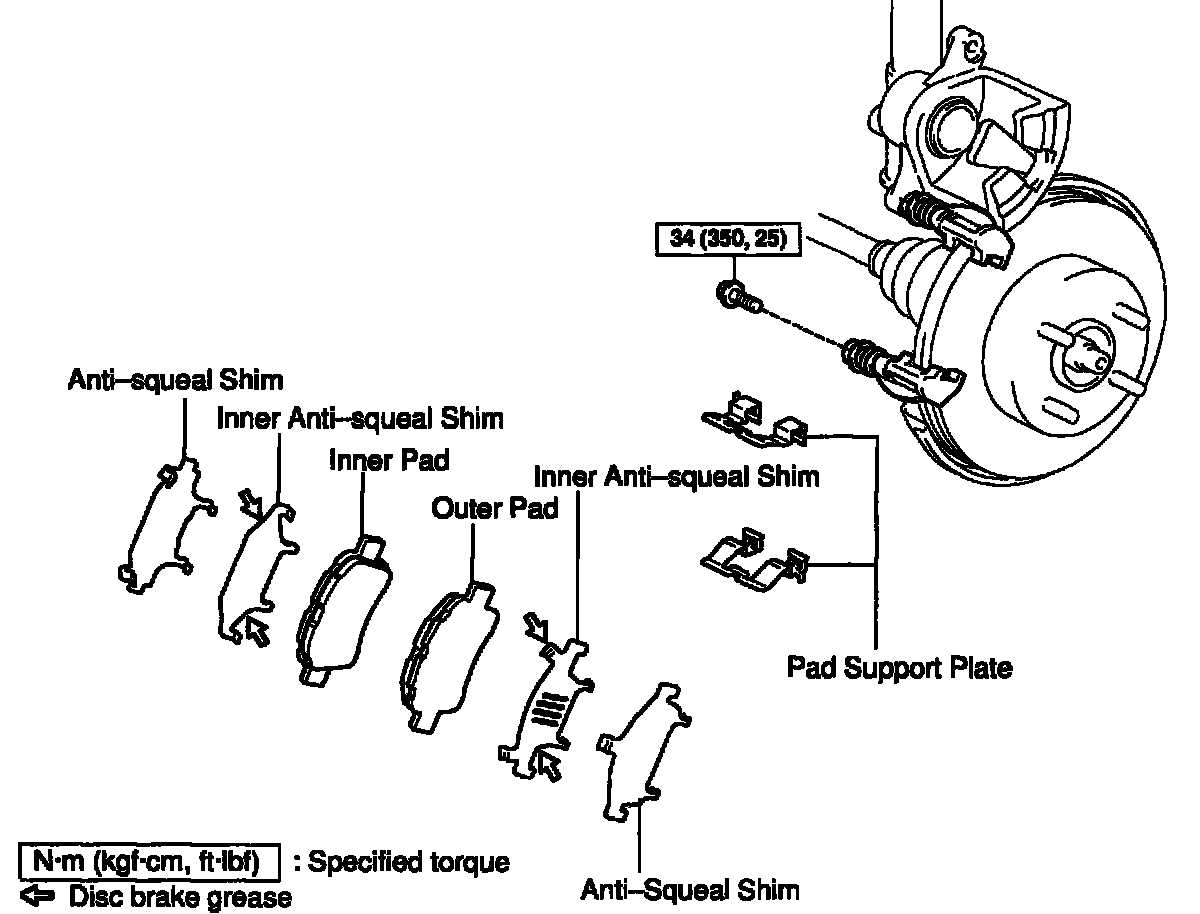

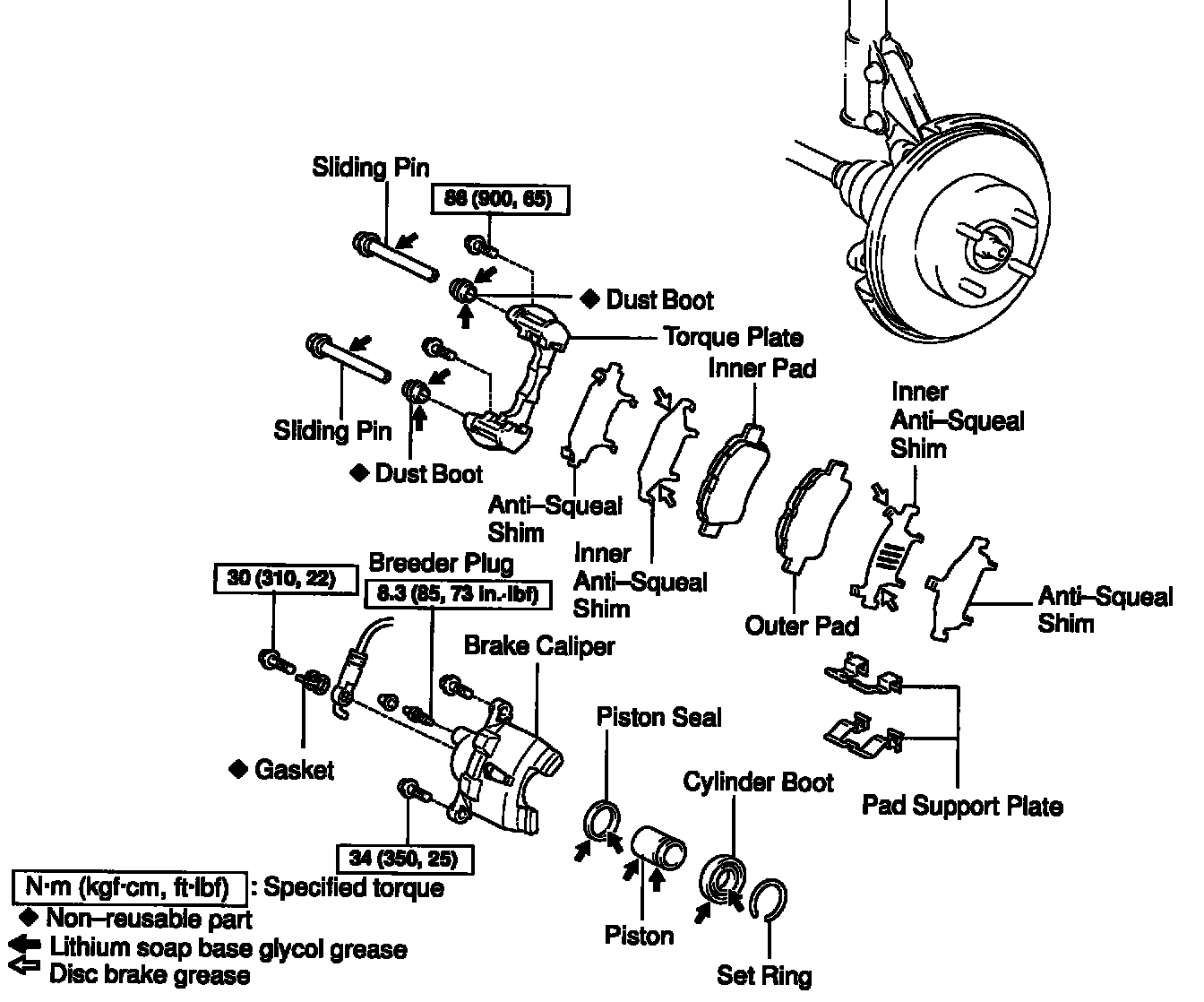

Disc Brake System: Diagrams
