Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Echo L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Clutch, M/T
>>
Clutch Master Cylinder
Clutch Master Cylinder

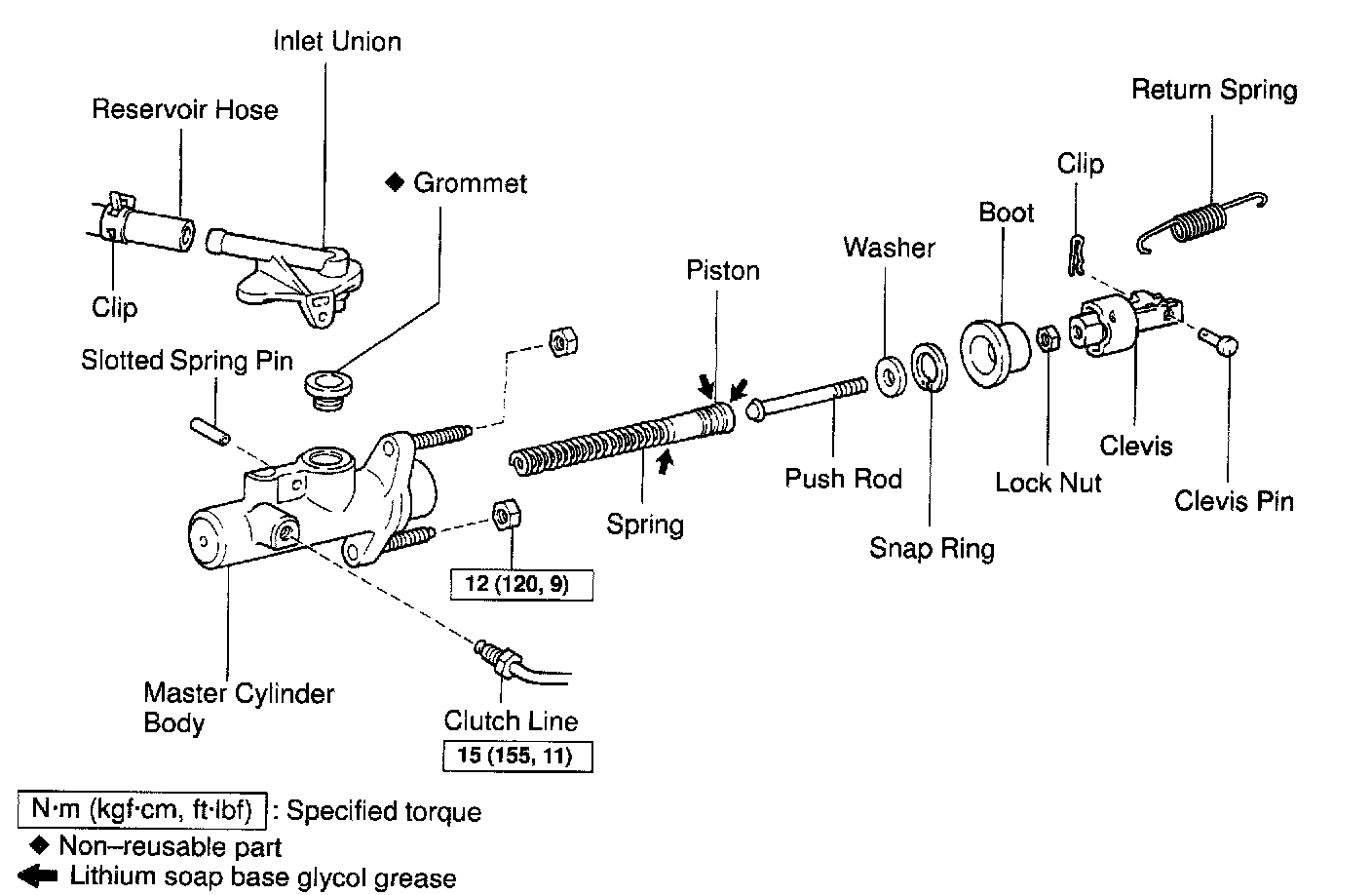

CLUTCH MASTER CYLINDER
