Manual Transmission/Transaxle
>>
System Diagram
>>
Disassembly and Assembly
Disassembly and Assembly

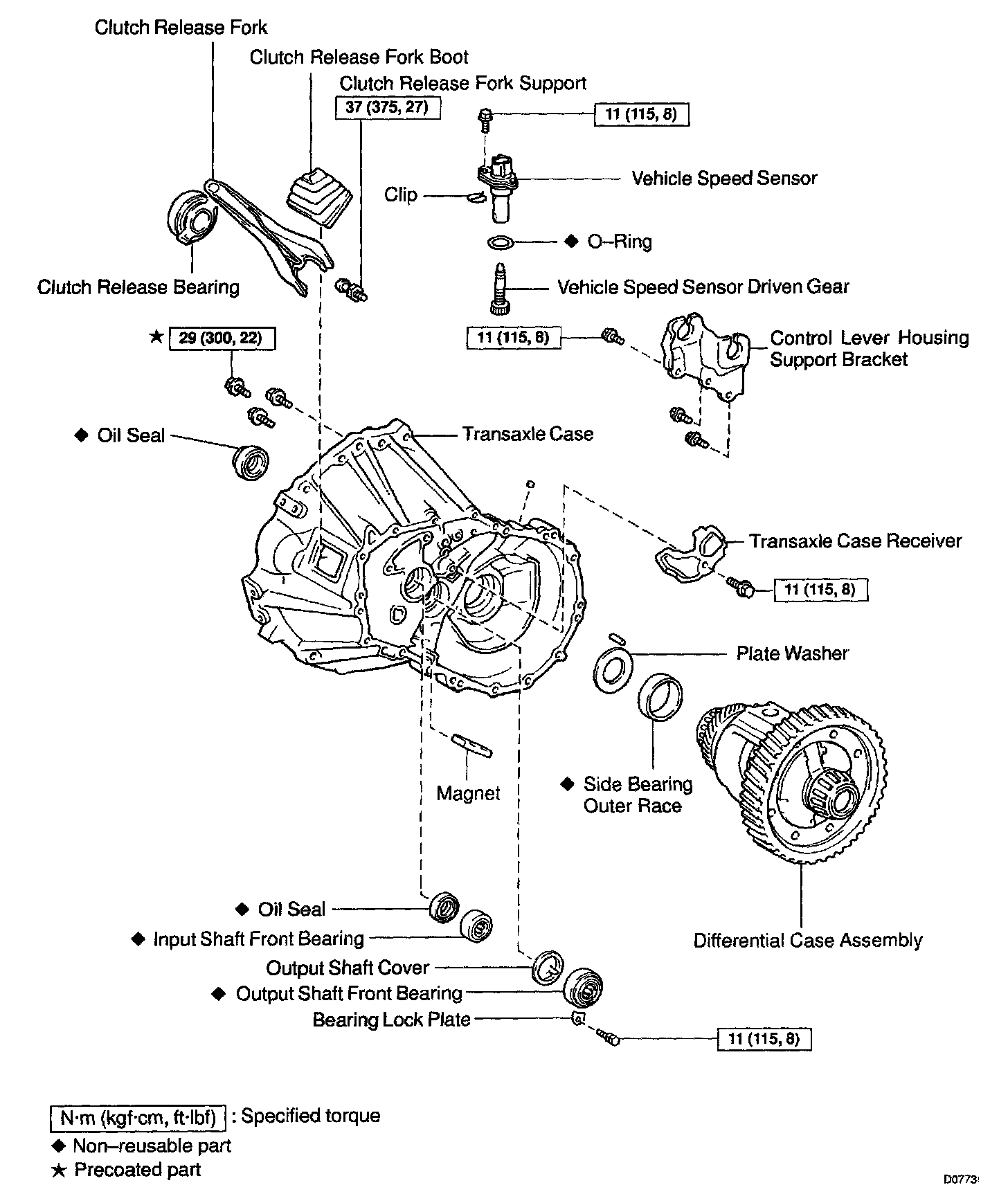

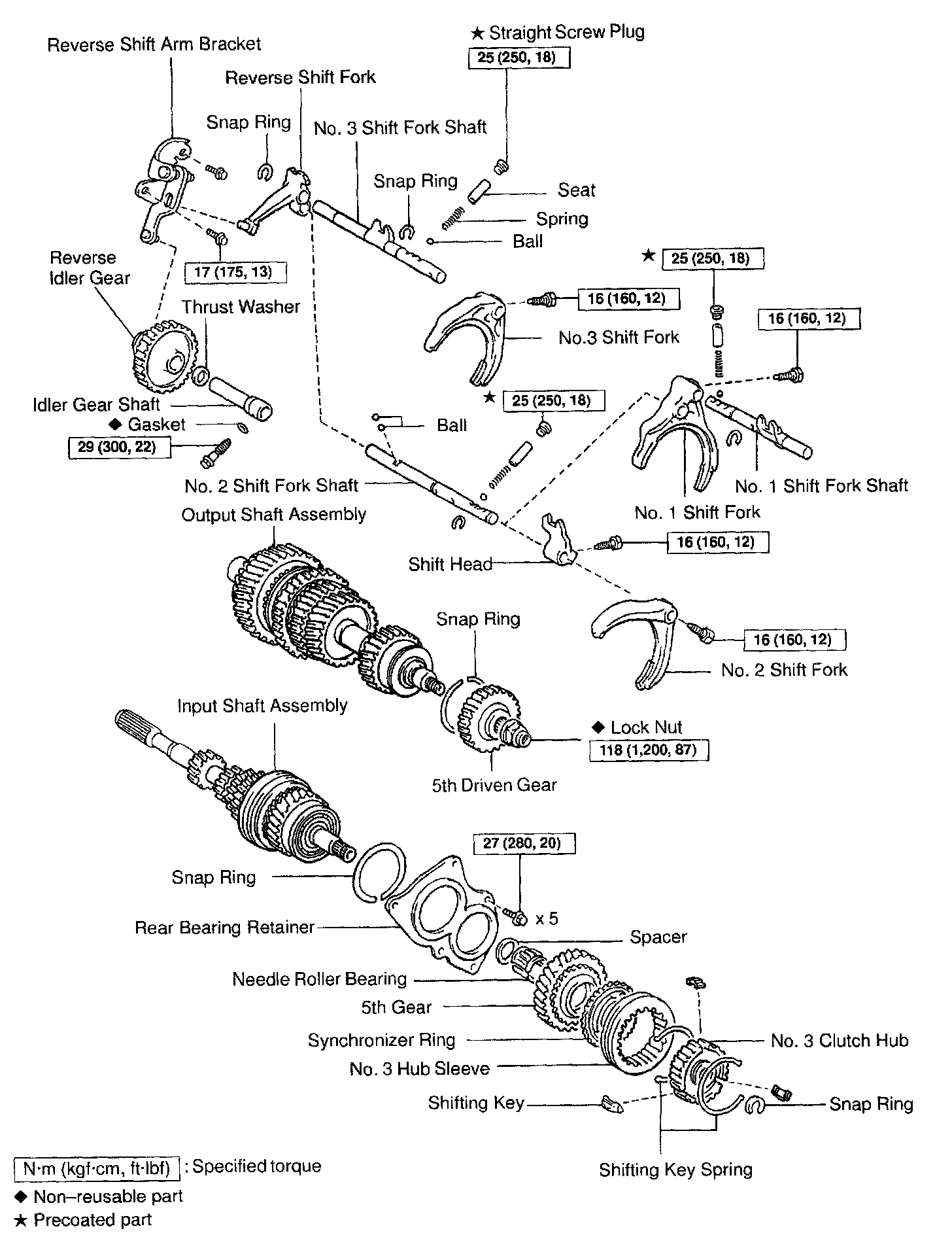

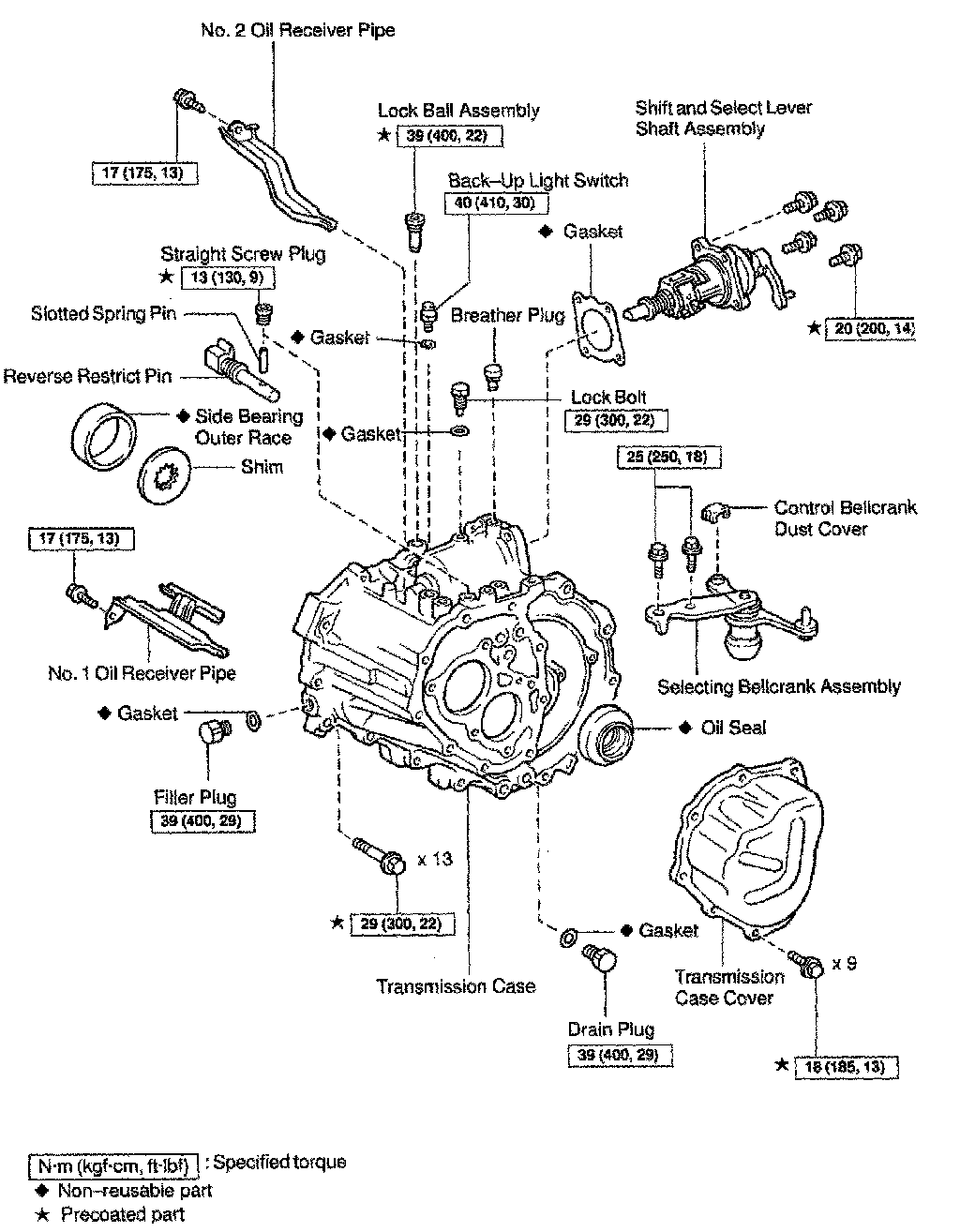

MANUAL TRANSAXLE ASSEMBLY
