Power Steering Gear

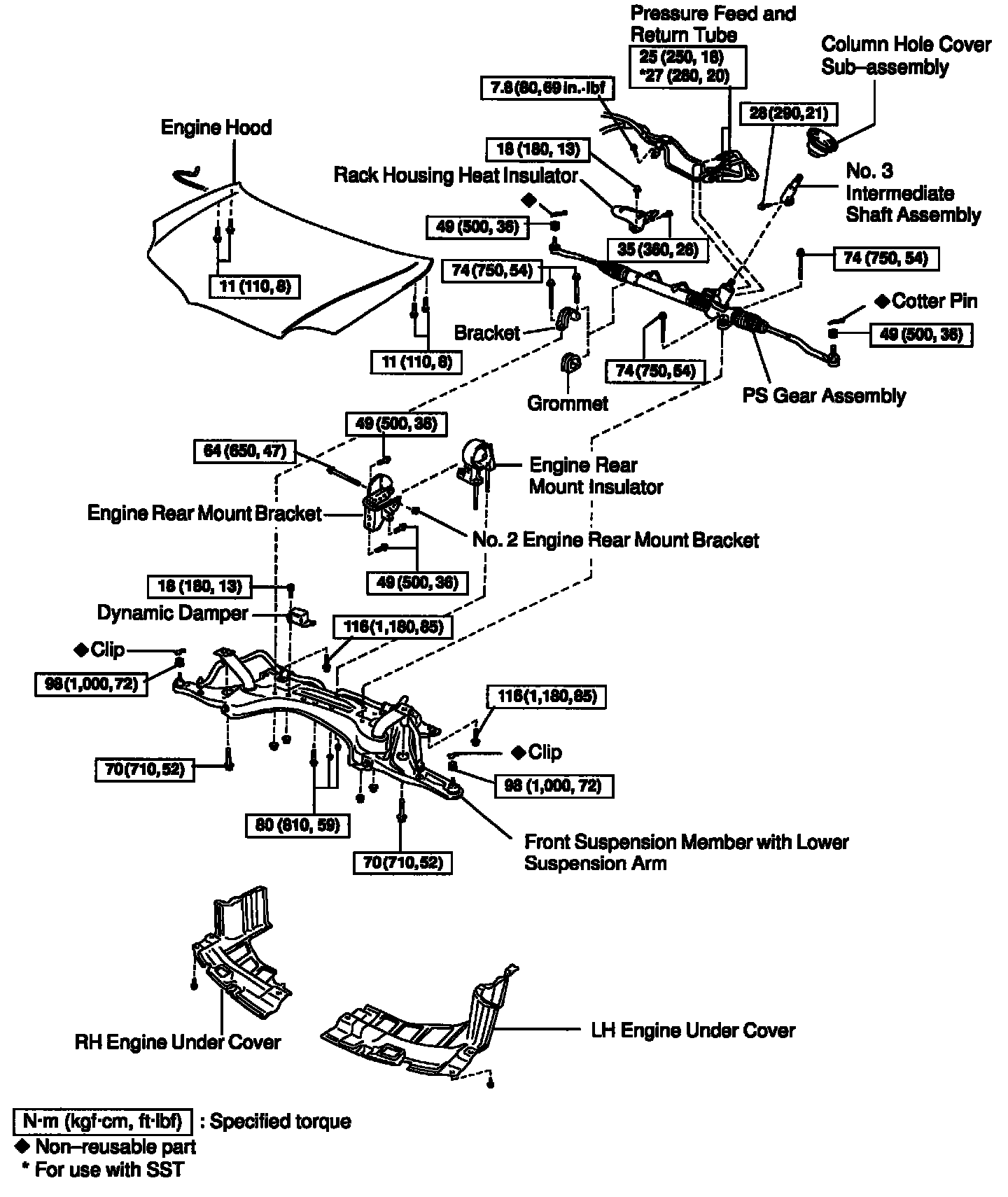

Part 1 Of 3:

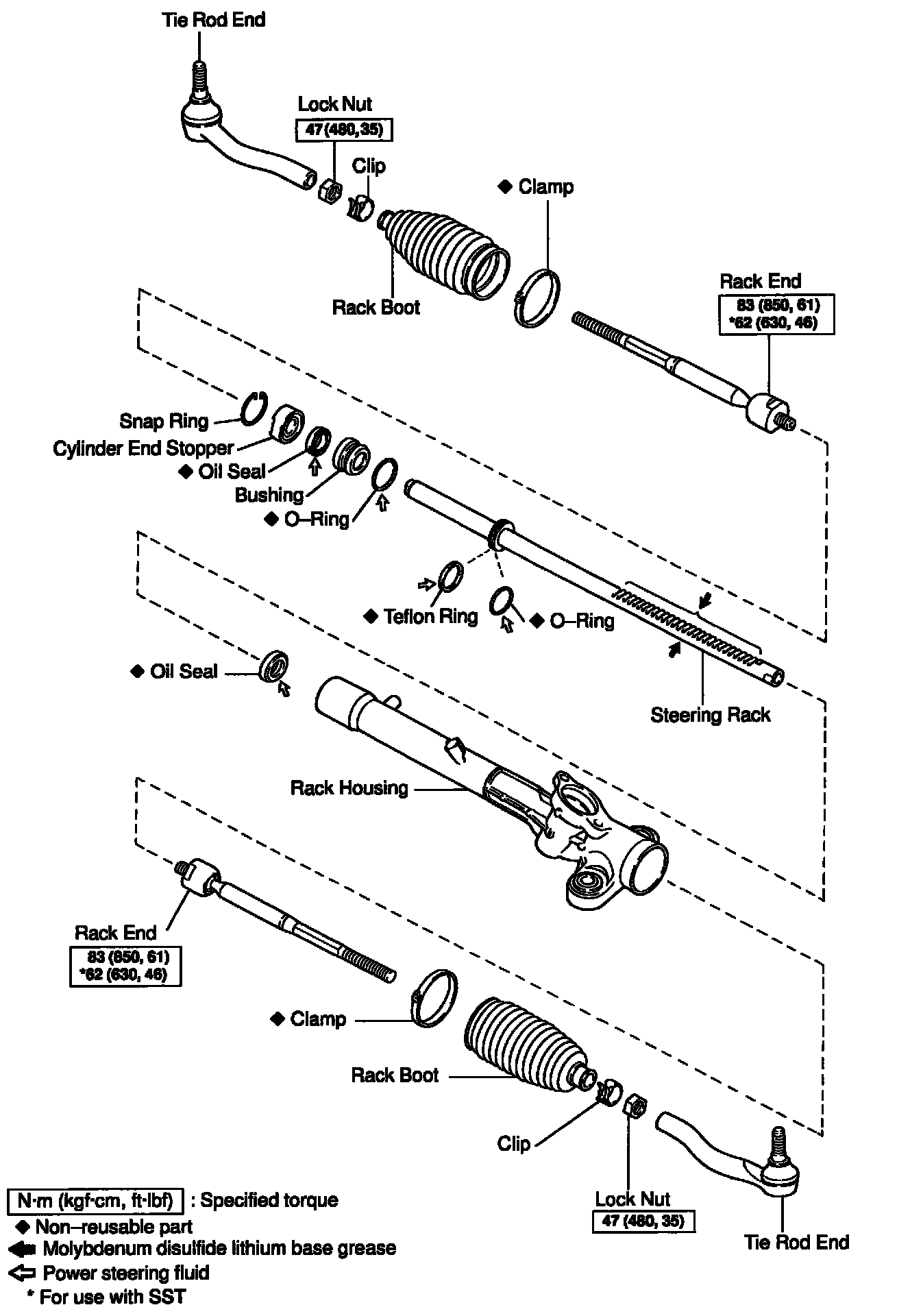

Part 2 Of 3:

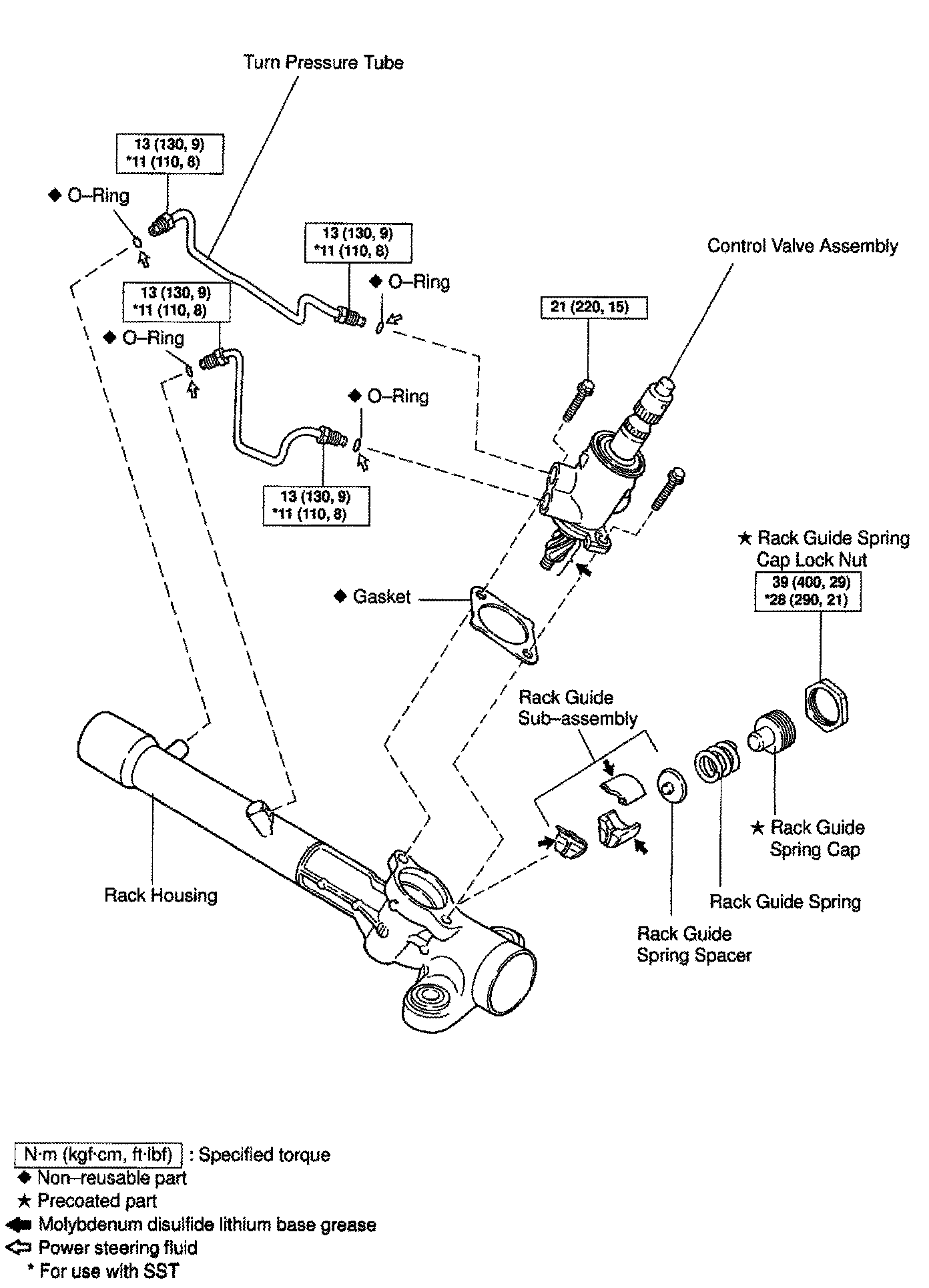

Part 3 Of 3:





POWER STEERING GEAR REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
