Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Echo L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Mechanical Diagrams
>>
Power and Ground Distribution
>>
Relay Box

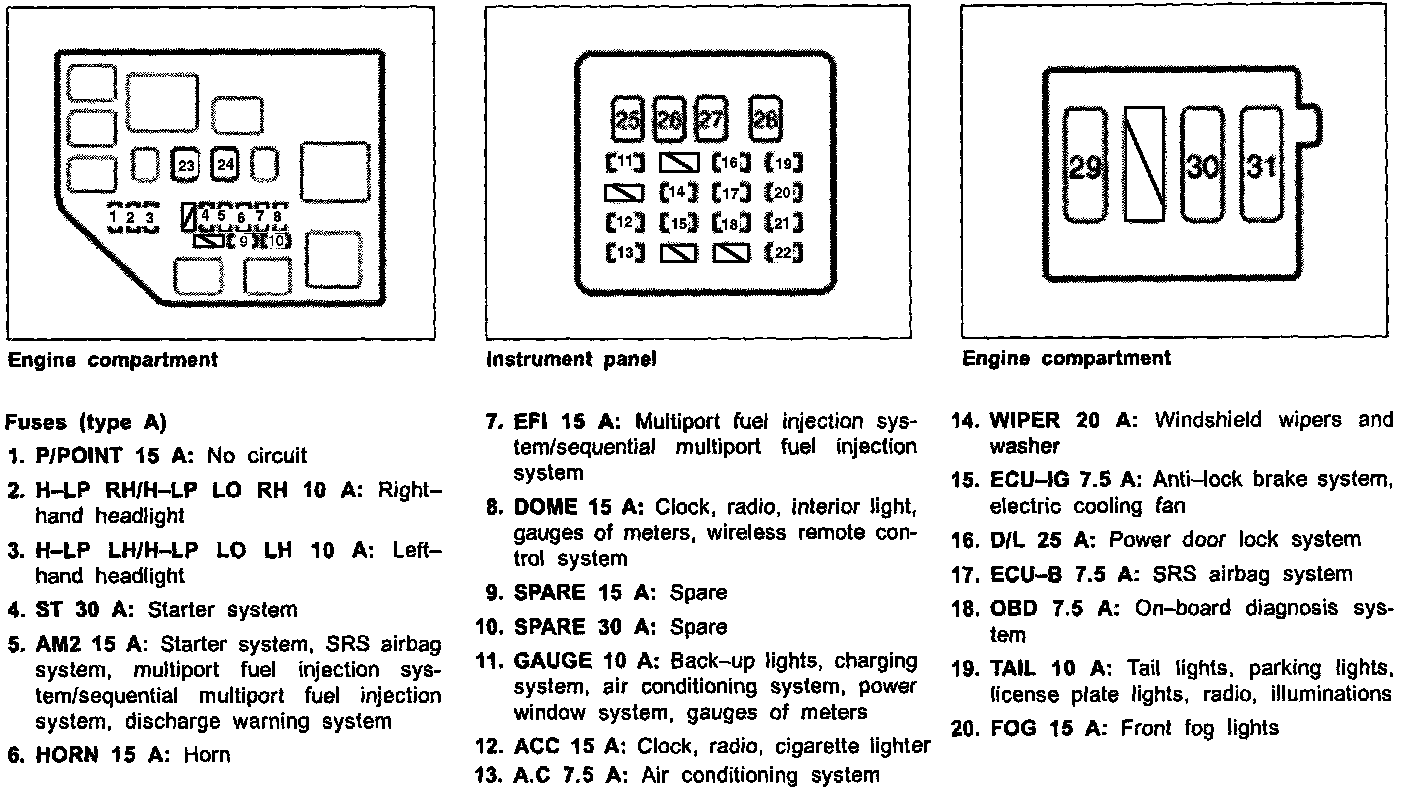

Relay Box

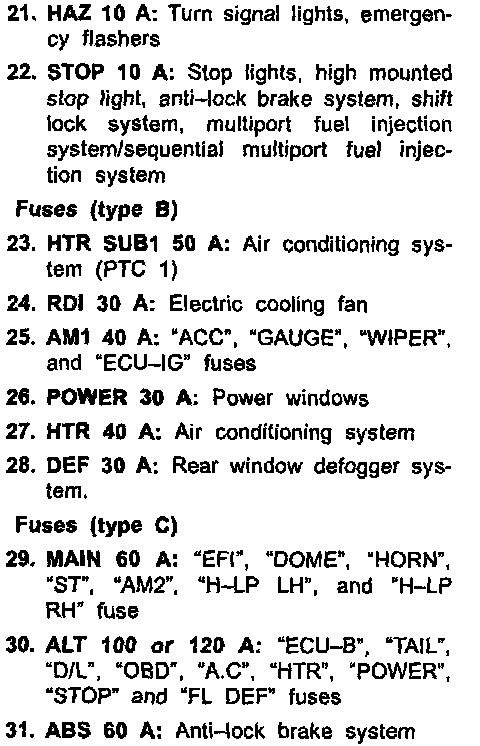

Fuses
