Removal and Installation

Part 1 Of 2:

Pat 2 Of 2:

REMOVAL
1. DRAIN ENGINE COOLANT
2. REMOVE ENGINE UNDER COVERS
3. REMOVE RADIATOR ASSEMBLY
a) Disconnect the electric cooling fan connector.
b) Disconnect the horn connector.
c) Disconnect the upper radiator hose.
d) Disconnect the lower radiator hose.
e) Disconnect the radiator reservoir hose.
f) A/T Disconnect the 2 oil cooler hoses.
g) Remove the 2 clips and radiator cover.

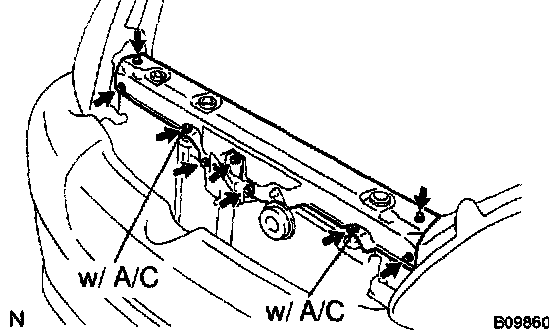

h) Remove the 7 (w/o A/C) or 9 (w/ A/C) bolts and upper radiator supports.
i) Remove the radiator assembly.
j) Remove the 2 radiator support cushions and grommets.
4. REMOVE ELECTRIC COOLING FAN FROM RADIATOR
Remove the 3 bolts and cooling fan assembly.

INSTALLATION
1. INSTALL ELECTRIC COOLING FAN TO RADIATOR
Install the cooling fan with the 3 bolts.
Torque: 7.5 Nm (80 kgf-cm, 66 inch lbs.)
2. INSTALL RADIATOR ASSEMBLY
a) Install the 2 radiator support cushions and grommets to the radiator.
b) Attach the 2 grommets on the radiator to the body brackets.
c) Install the upper radiator supports with the 7 (w/o A/C) or 9 (w/ A/C) bolts.
d) Connect the upper radiator hose.
e) Connect the lower radiator hose.
f) Connect the radiator reservoir hose.
g) A/T, Connect the 2 oil cooler hoses to the oil cooler pipes.
h) Install the radiator cover with the 2 clips.
i) Connect the horn connector.
j) Connect the electric cooling fan connector.
3. INSTALL ENGINE UNDER COVERS
4. FILL WITH ENGINE COOLANT
5. START ENGINE AND CHECK FOR COOLANT LEAKS
