Inspection

INSPECTION




INSPECT CAMSHAFT TIMING OIL CONTROL VALVE OPERATION

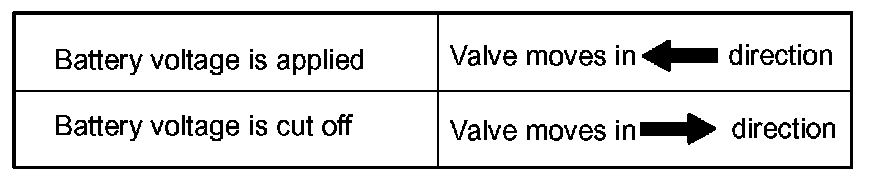

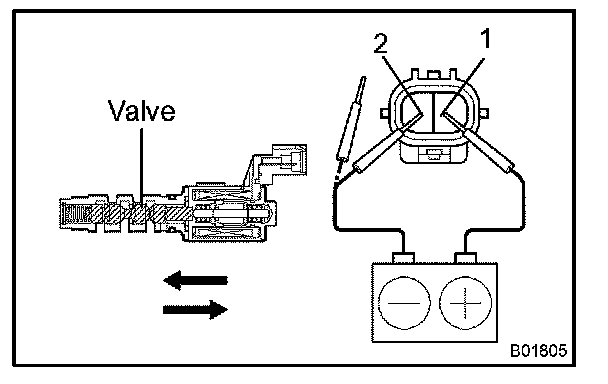

Connect positive (+) lead from the battery to terminal 1 and negative (-) lead to terminal 2, and check the movement of the valve.




If operation is not as specified, replace the valve.
