Removal

Part 1 Of 4:

Part 2 Of 4:

Part 3 Of 4:

Part 4 Of 4:

REMOVAL
1. DRAIN ENGINE COOLANT
2. REMOVE WATER FILLER
a) Disconnect the No. 3 radiator hose.
b) Remove the 2 bolts and water filler.
3. REMOVE OUTER FRONT COWL TOP PANEL
4. REMOVE DRIVE BELT AND ALTERNATOR
5. REMOVE AIR CLEANER ASSEMBLY
6. DISCONNECT ACCELERATOR CABLE

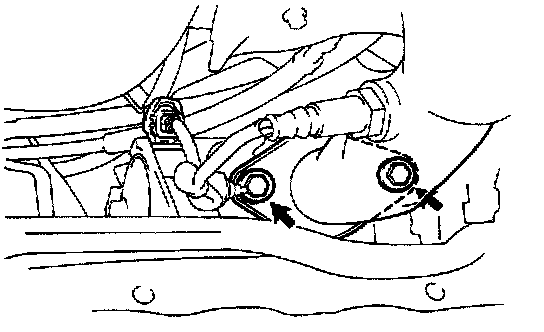

7. DISCONNECT CENTER EXHAUST PIPE FROM EXHAUST MANIFOLD
a) Remove the 2 bolts and 2 springs holding the front exhaust pipe to the exhaust manifold.
b) Remove the gasket.

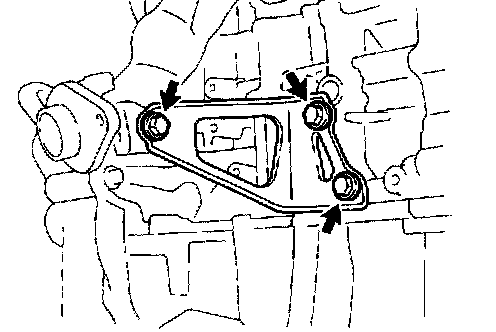

8. REMOVE EXHAUST MANIFOLD STAY
Remove the 3 bolts and exhaust manifold stay.

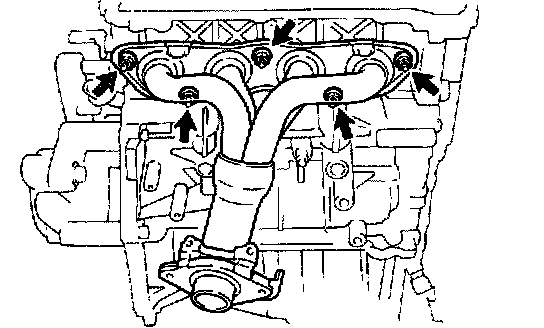

9. REMOVE EXHAUST MANIFOLD
a) Remove the 4 bolts and upper heat insulator.
b) Remove the 3 bolts 2 nuts, exhaust manifold and gasket.
10. REMOVE IGNITION COIL
11. REMOVE SPARK PLUGS
12. REMOVE PCV HOSES
13. REMOVE THROTTLE BODY

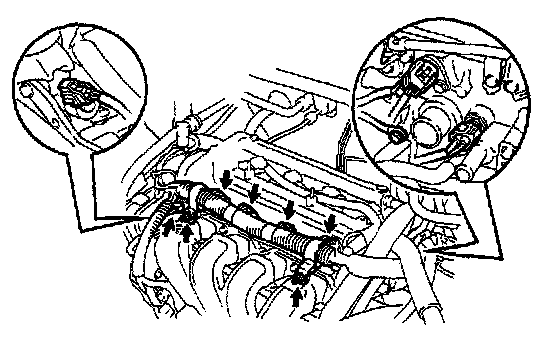

14. DISCONNECT ENGINE WIRE FROM CYLINDER HEAD
a) Disconnect the ECT sensor connector
b) Disconnect the camshaft position sensor connector
c) Disconnect the oil control valve connector.
d) Disconnect the 4 injector connectors.
e) Disconnect the 2 ground wires
f) Remove the 2 nuts, and disconnect the engine wire protector from the 2 brackets on the intake manifold.

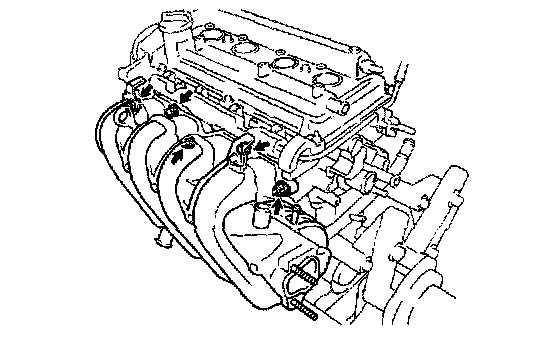

15. REMOVE INTAKE MANIFOLD
a) Disconnect the EVAP hose for ORVR
b) Disconnect the brake booster vacuum hose
c) Remove the 3 bolts, 2 nuts, intake manifold and gasket.
16. REMOVE CAMSHAFT POSITION SENSOR
17. REMOVE ECT SENSOR
18. REMOVE OIL CONTROL VALVE
19. REMOVE PCV VALVE
20. REMOVE OIL FILLER CAP
21. REMOVE HEAD COVER
22. REMOVE INJECTOR
23. REMOVE TIMING CHAIN COVER
24. REMOVE CAMSHAFT TIMING SPROCKET AND VALVE TIMING CONTROL ASSEMBLY
Hold the hexagonal head portion of the camshaft with a wrench, and remove the 2 bolts and timing sprocket and valve timing controller assembly.

NOTICE:
^ Be careful not to damage the cylinder head and valve lifter with the wrench.
^ Do not disassembly the valve timing controller assembly.

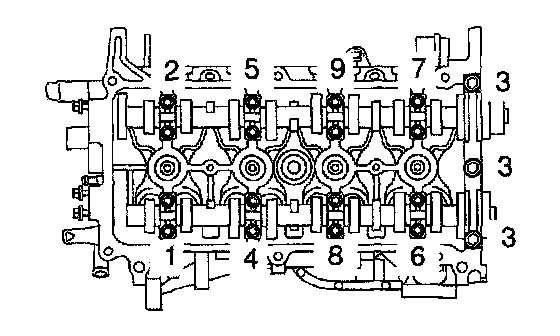

25. REMOVE CAMSHAFTS
Uniformly loosen and remove the 19 bearing cap bolts, in several passes, in the sequence shown, and remove the 9 bearing caps, intake and exhaust camshafts.

26. REMOVE CYLINDER HEAD
a) Disconnect the upper radiator hose from the water hose union
b) Disconnect the heater water hose from the water hose union

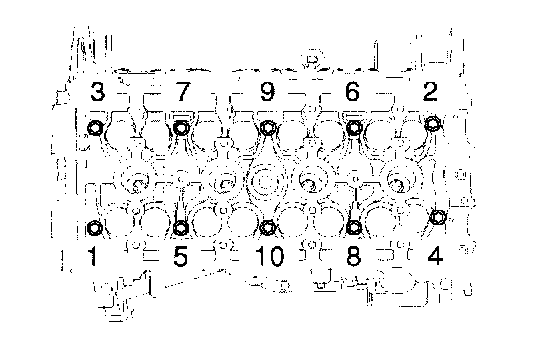

c) Using a 8 mm bi-hexagon wrench, uniformly loosen and remove the 10 cylinder head bolts, in several passes, in the sequence shown. Remove the 10 cylinder head bolts and plate washers.

NOTICE: Head warpage or cracking could result from removing bolts in an incorrect order.

d) Remove the bolt holding the water bypass pipe to the cylinder head.





e) Lift the cylinder head from the dowels on the cylinder block and replace the cylinder head on wooden blocks on a bench.

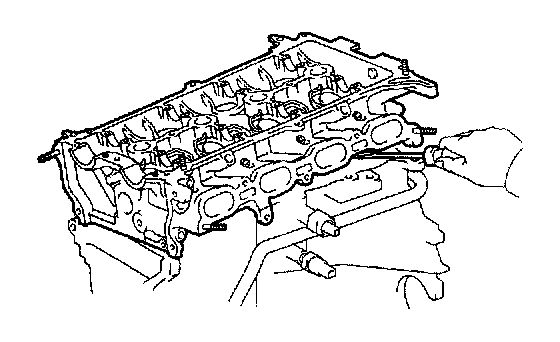

HINT: If the cylinder head is difficult to lift off, pry between the cylinder head and cylinder block with a screwdriver.

NOTICE: Be careful not to damage the contact surfaces of the cylinder head and cylinder block.
