Oil Pump Assembly Replacement

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

REMOVAL
1. DRAIN ENGINE OIL
2. REMOVE TIMING CHAIN COVER





3. REMOVE OIL PUMP

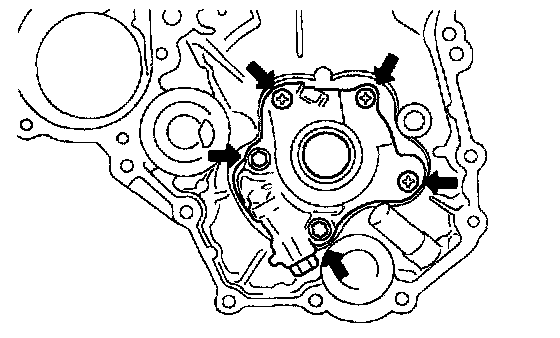

a) Remove the 2 bolts, 3 screws and oil pump cover from the timing chain cover.
b) Remove the drive and driven rotors.

INSTALLATION





1. INSTALL OIL PUMP

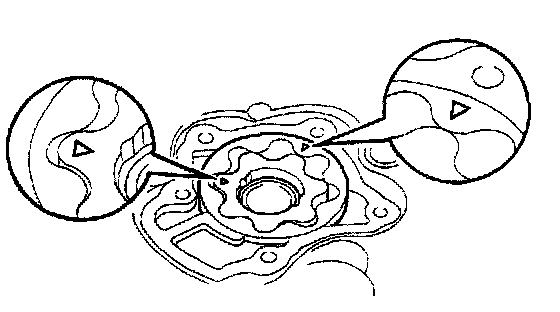

a) Place the drive and driven rotors into timing chain cover with the marks facing the oil pump cover side.





b) Install the oil pump cover to the timing chain cover with the 2 bolts and 3 screws.
Torque:
Bolt: 9.0 Nm (92 kgf-cm, 80 inch lbs.)
Screw: 11 Nm (110 kgf-cm, 8 ft. lbs.)
2. INSTALL TIMING CHAIN COVER
3. FILL WITH ENGINE OIL
4. CHECK FOR LEAKS
