Heater Main Relay

HEATER MAIN RELAY

INSPECTION




1. REMOVE INSTRUMENT PANEL

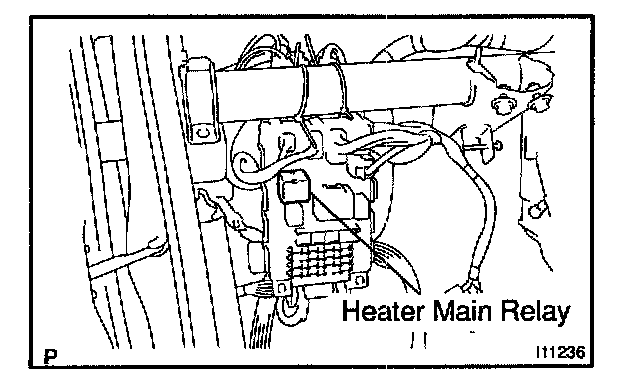

2. REMOVE HEATER MAIN RELAY FROM INSTRUMENT PANEL J/B

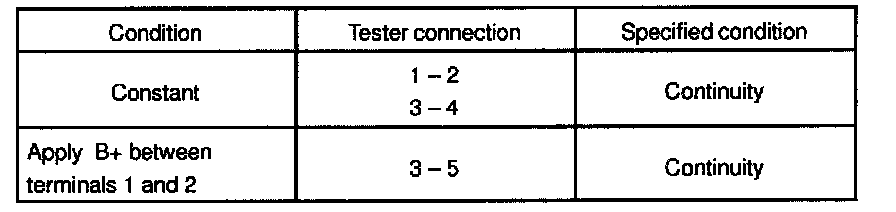

3. INSPECT HEATER MAIN RELAY CONTINUITY
If continuity is not as specified, replace the relay.

4. INSTALL HEATER MAIN RELAY TO INSTRUMENT PANEL J/B
5. INSTALL INSTRUMENT PANEL
