Removal And Installation

CONDENSER FAN

Condenser Fan:

REMOVAL

1. DRAIN ENGINE COOLANT FROM RADIATOR

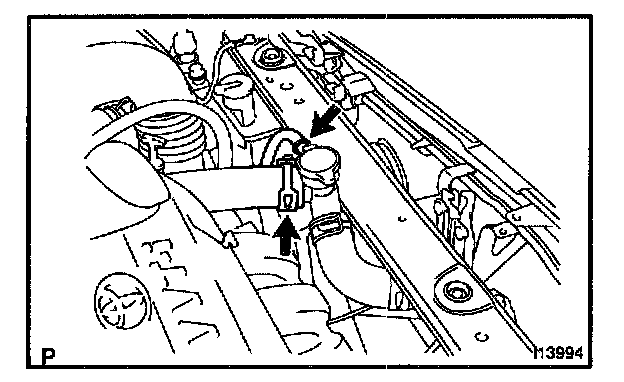

2. DISCONNECT UPPER RADIATOR HOSE
3. DISCONNECT RESERVOIR HOSE




4. REMOVE RADIATOR UPPER SUPPORT

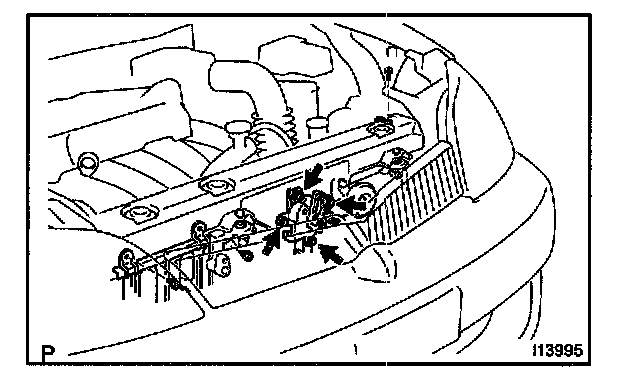

a. Remove the 3 hood lock set bolts.
b. Remove the center brace set bolt.
c. Remove the 2 radiator cover set the hone.
d. disconnect the connector from the hone.
e. Remove the earth wire set bolt.

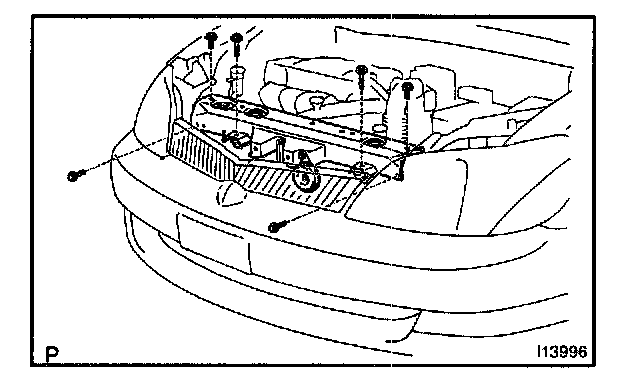

f. Remove the 6 bolts and radiator upper support.




5. REMOVE CONDENSER FAN
a. Disconnect the connector.

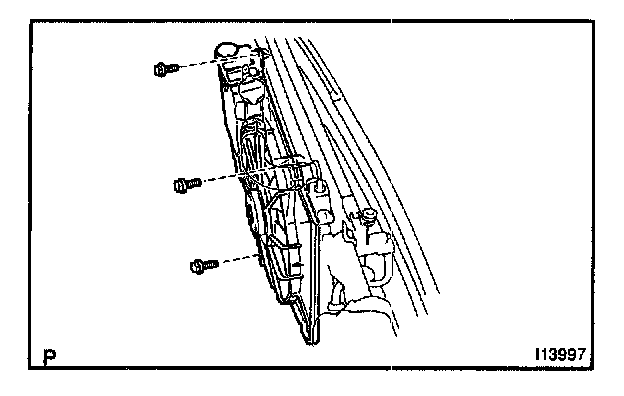

b. Remove the 3 bolts and condenser fan.

Torque: 7.5 N.m (80 kgf.cm, 69 in.lbf)


INSTALLATION
Installation is in the reverse order of removal.
