Disassembly and Reassembly

HEATER CONTROL ASSEMBLY

DISASSEMBLY

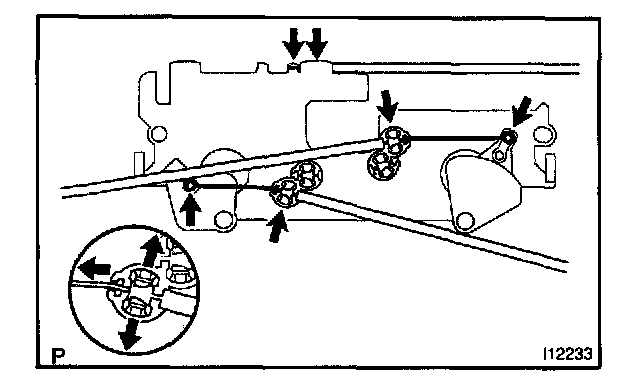

1. REMOVE HEATER CONTROL CABLES
a. Using a screwdriver, open the claw of the cable clamp and disconnect the outer cable.

HINT: Tape the screwdriver tip before use.

b. Remove the inner cable from the heater control assembly.




2. Two way flow heater models:

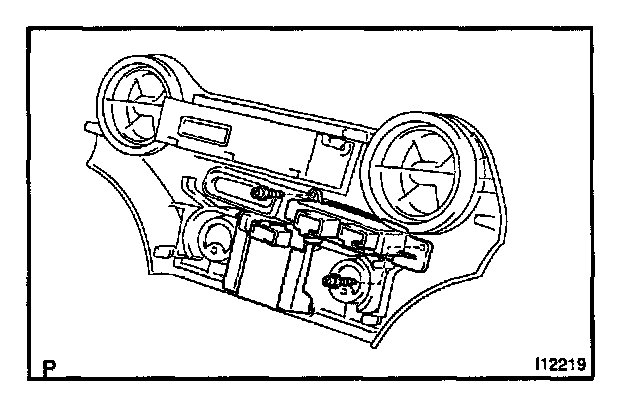

REMOVE HEATER SWITCH

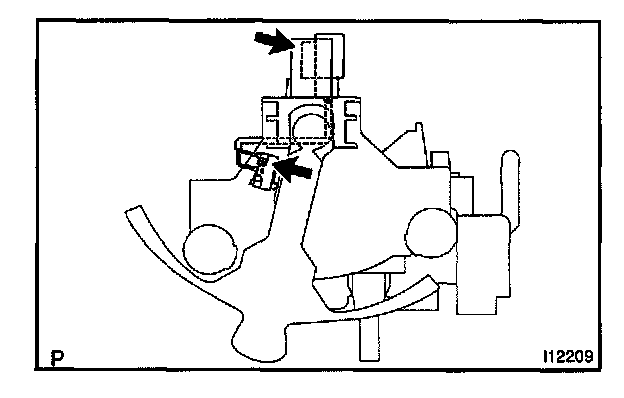

a. Disconnect the connector clamp.
b. Remove the screw and heater switch.

REASSEMBLY
Reassembly is in the reverse order of disassembly.



HEATER CONTROL ASSEMBLY (Center Cluster Integration)

DISASSEMBLY

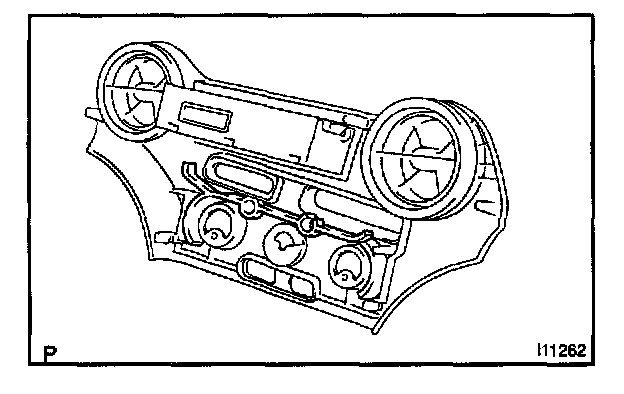

1. REMOVE CLUSTER FINISH PANEL




2. REMOVE CENTER CLUSTER SWITCH
a. Remove the knob.
b. Release the 2 claws and remove the switch.




3. REMOVE LENS

REASSEMBLY
Reassembly is in the reverse order of disassembly.
