Removal and Installation

HEATER CONTROL ASSEMBLY

Heater Control Assembly:

REMOVAL

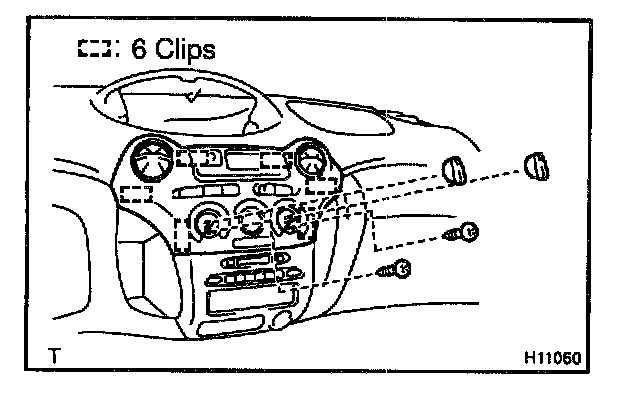

1. REMOVE CLUSTER FINISH PANEL (Integration panel)
a. Using pliers, pull out the 2 knobs.

HINT: Cover the knobs with a cloth, when pulling the knobs.

b. Remove the 2 screws.
c. Using a screwdriver, release the 6 fitting clips and pull out the cluster finish panel, then disconnect the connectors.

HINT: Tape the screwdriver tip before use.

2. REMOVE FRONT PASSENGER AIRBAG ASSEMBLY
3. REMOVE CLUSTER PANEL (Combination meter)
4. REMOVE COMBINATION METER




5. DISCONNECT HEATER CONTROL CABLES




6. REMOVE HEATER CONTROL ASSEMBLY

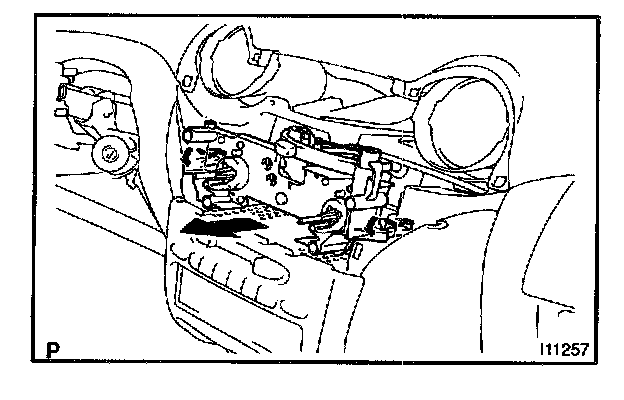

Release the 2 claws and pull out the heater control assembly.

INSTALLATION

1. INSTALL HEATER CONTROL ASSEMBLY
a. Install the heater control assembly temporarily.

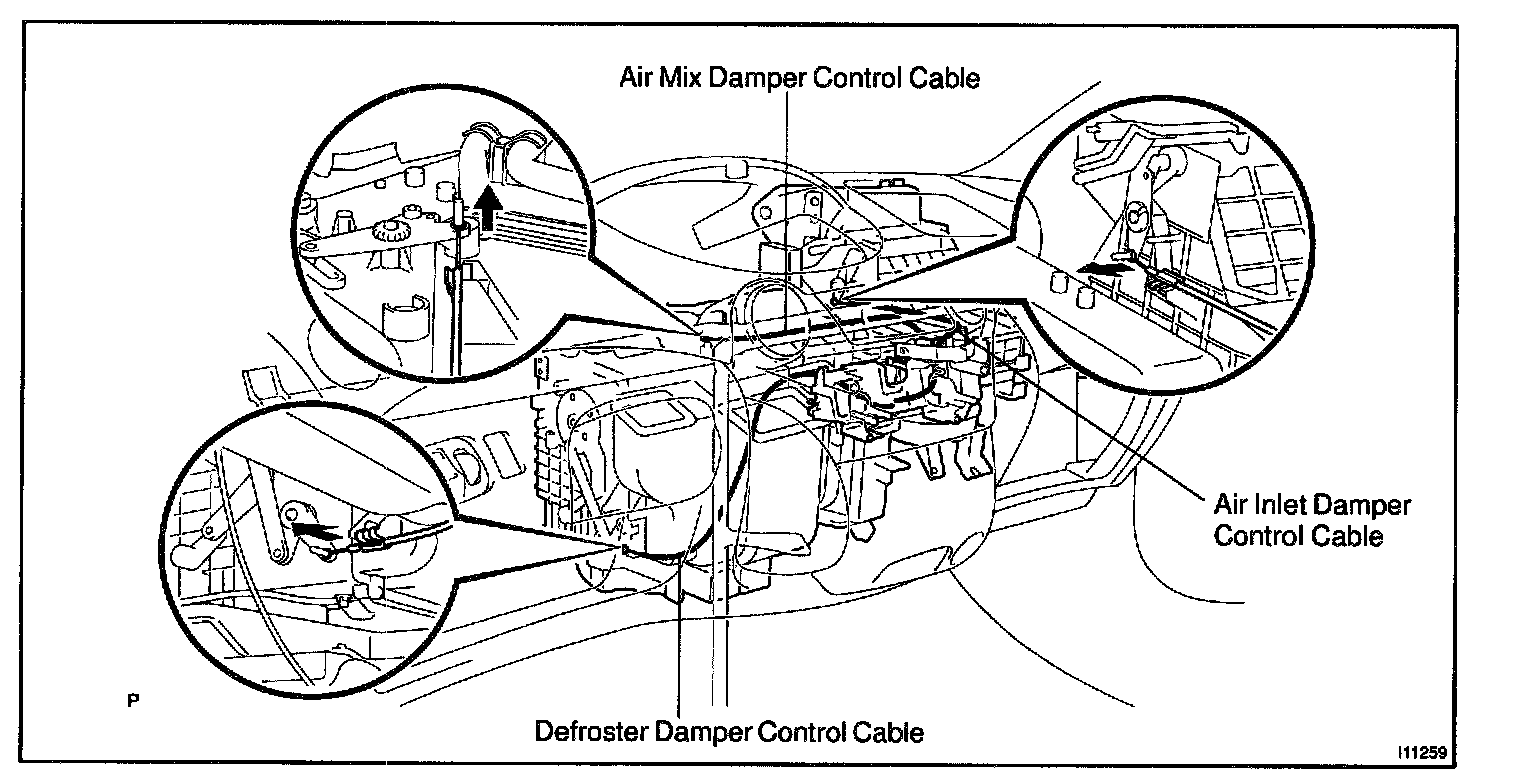

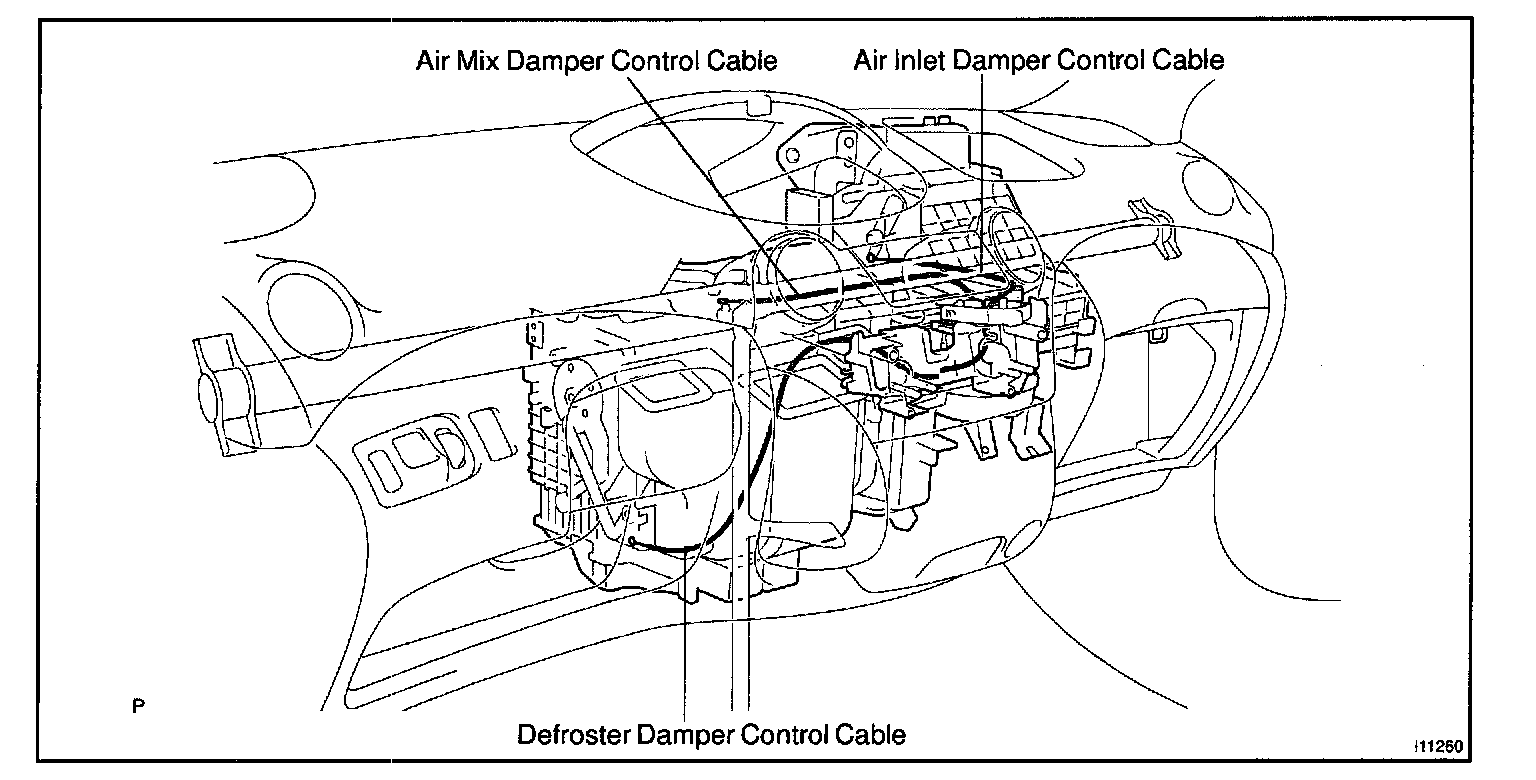

b. Pass the heater control cables as shown in the illustration.

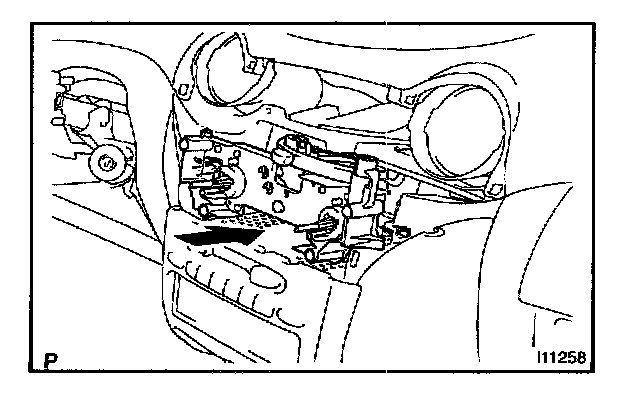

c. Fit the 2 claws of heater control assembly in the instrument panel hole.

2. CONNECT HEATER CONTROL CABLES
a. Set air inlet selector to "RECIRC" position.
b. Set temperature control selector to "MAX. COOL" position.
c. Set mode selector to "FACE" position.




d. Standard heater models only:

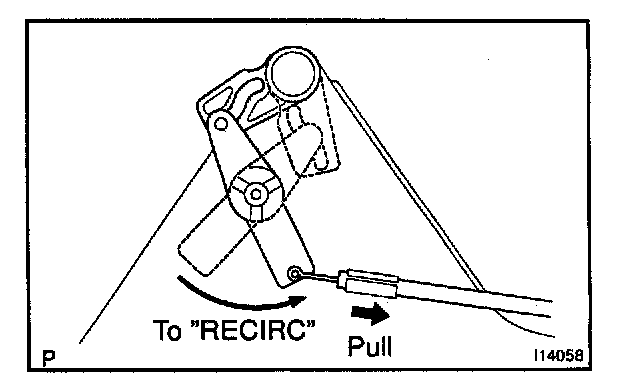

Adjust air inlet control cable.
Set air inlet damper control lever to "RECIRC" position and connect the inner cable to lever pin and clamp the outer cable.

HINT: Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in the illustration.

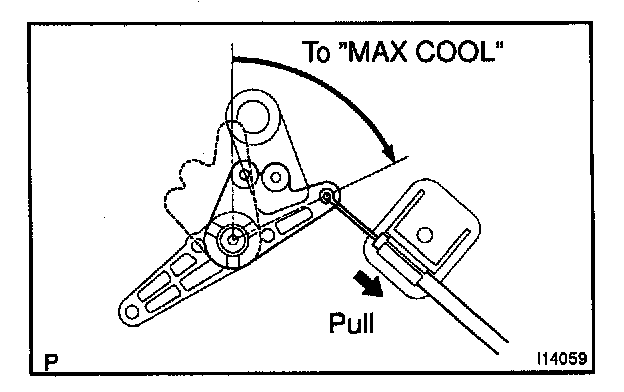

e. Adjust air mix control cable.
Set air mix damper control lever to "MAX. COOL" position and connect the inner cable to lever pin and clamp the outer cable.

HINT: Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in the illustration.

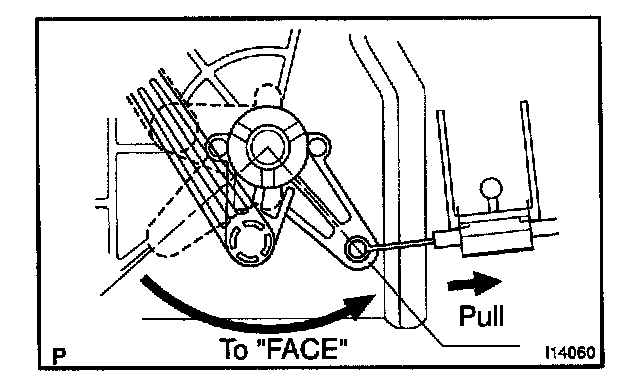

f. Adjust defroster control cable.
Pull the air inlet control link to "FACE" position, connect the control cable and lock the clamp.

HINT: Lock the clamp while lightly pulling the outer cable to the direction shown by arrow in the illustration.

3. INSTALL COMBINATION METER
4. INSTALL CLUSTER FINISH PANEL (Combination meter)
5. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
6. INSTALL CLUSTER FINISH PANEL
