Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>
Diagrams
>>
Connector Views
Connector Views

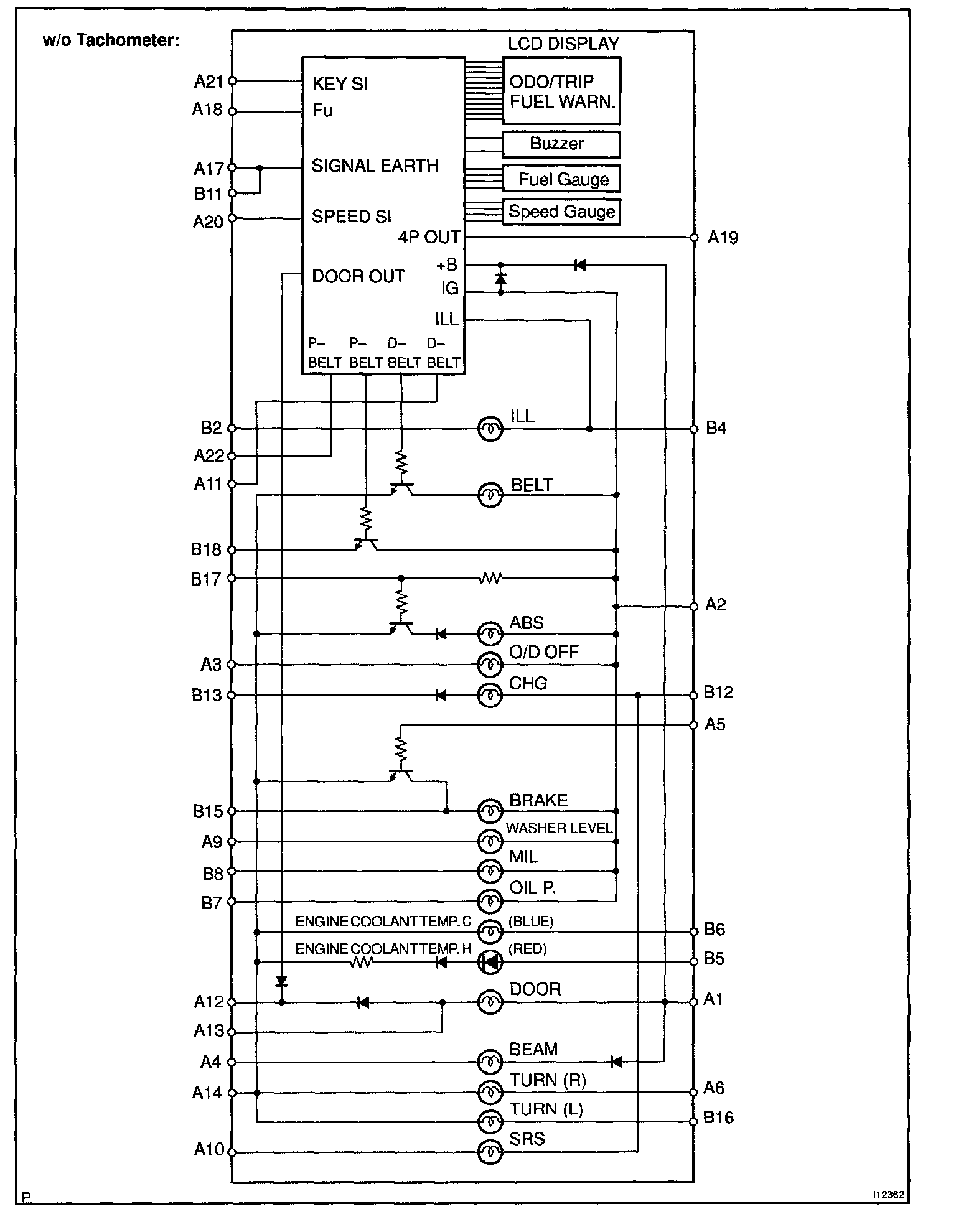

Circuit Part 1:

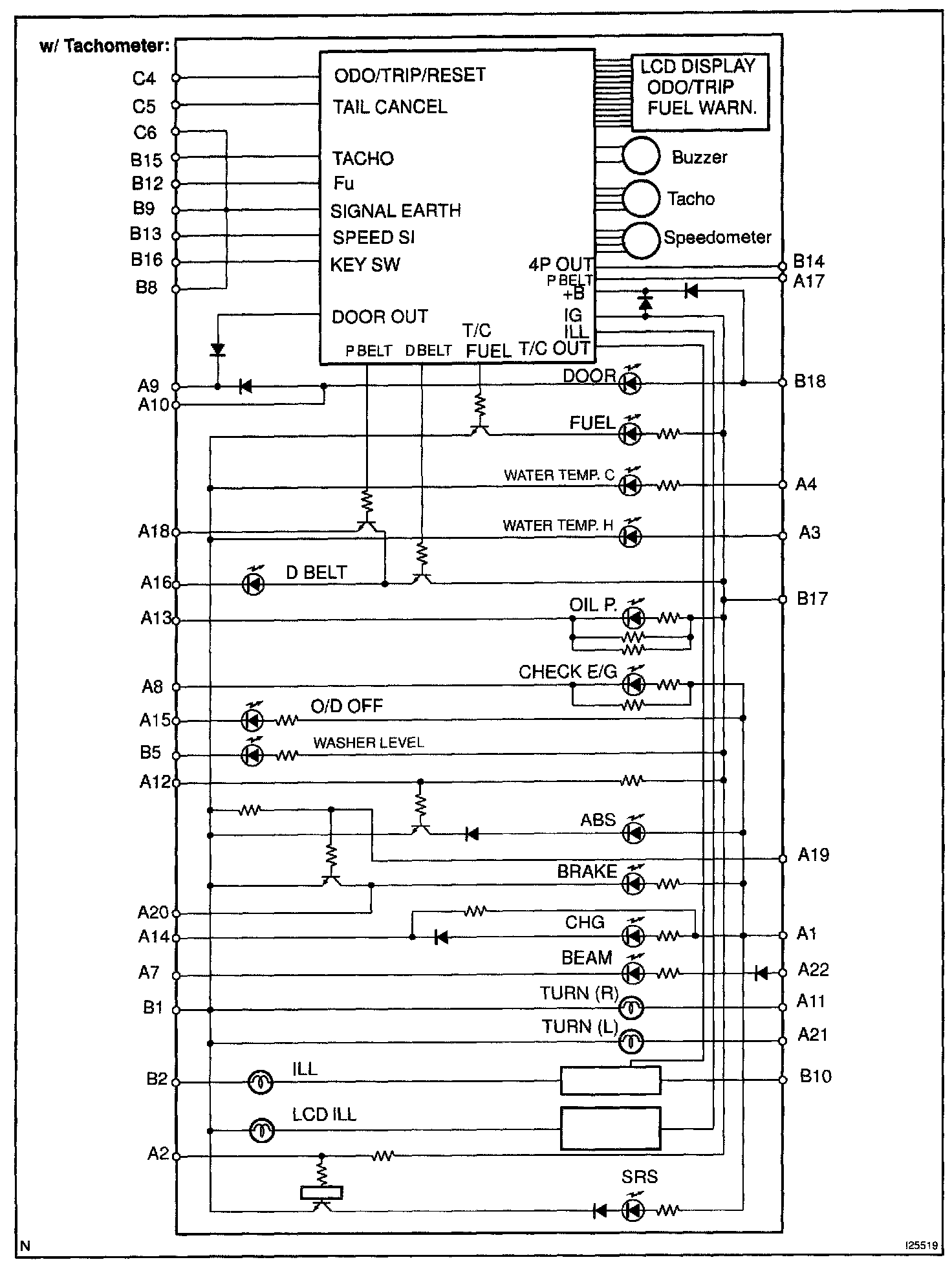

Circuit Part 2:

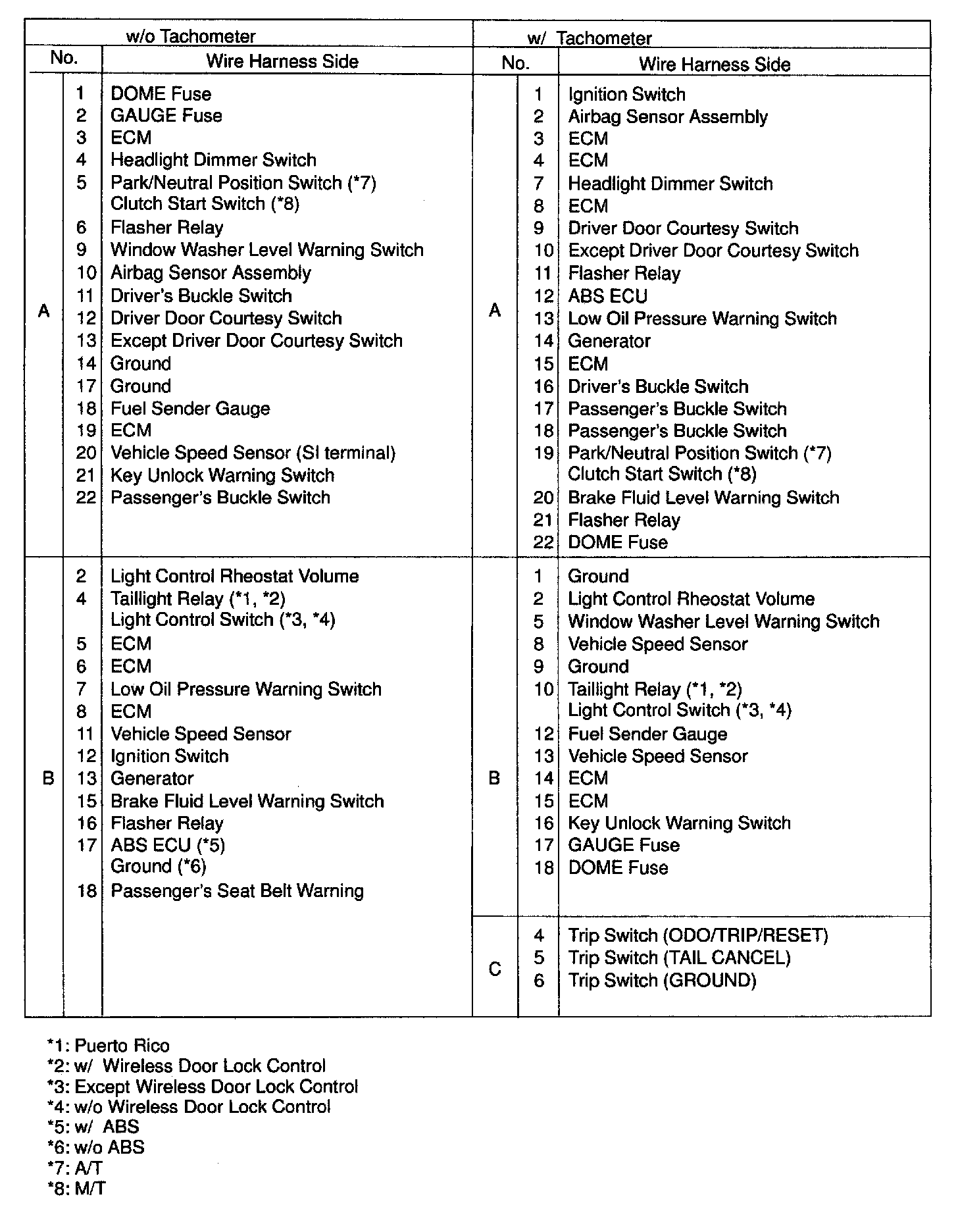

Circuit Part 3:

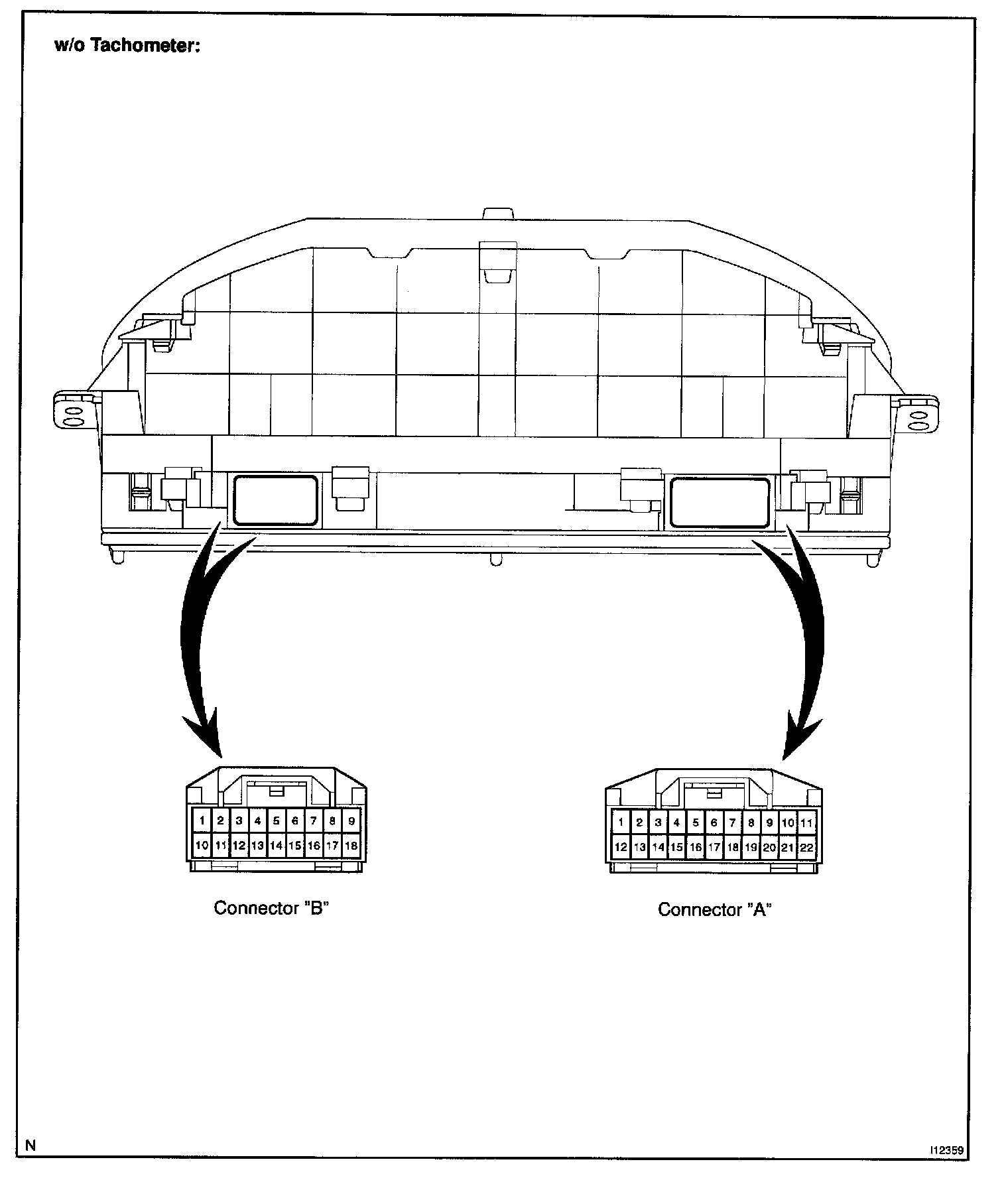

Circuit Part 4:

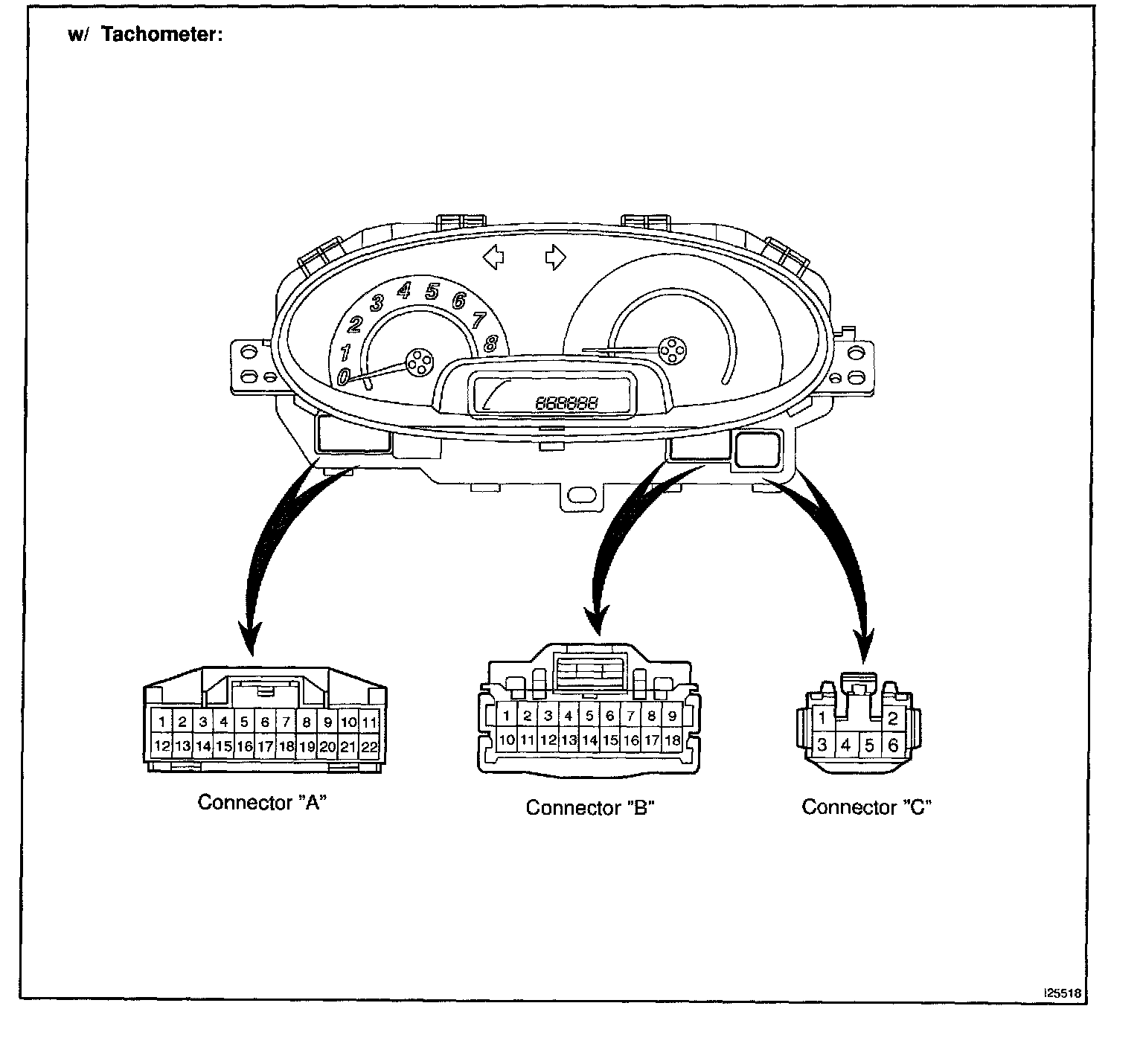

Circuit Part 5:
