Component Tests and General Diagnostics

INSPECTION

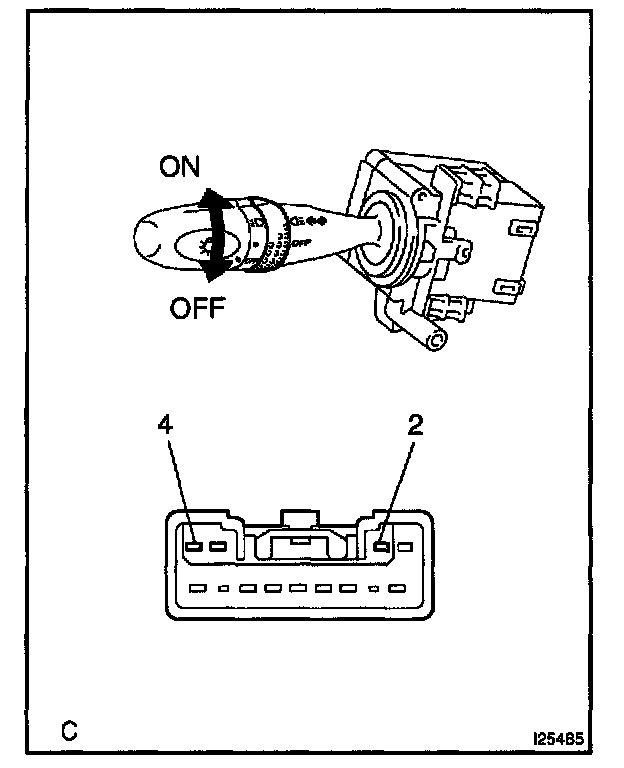

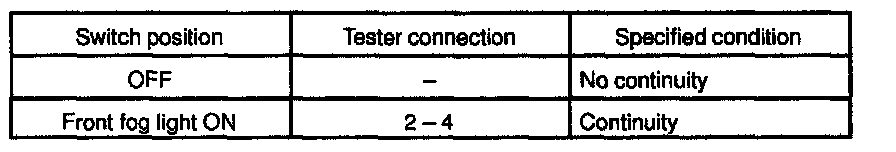

1. INSPECT FOG LIGHT SWITCH CONTINUITY
If continuity is not as specified, replace the switch.

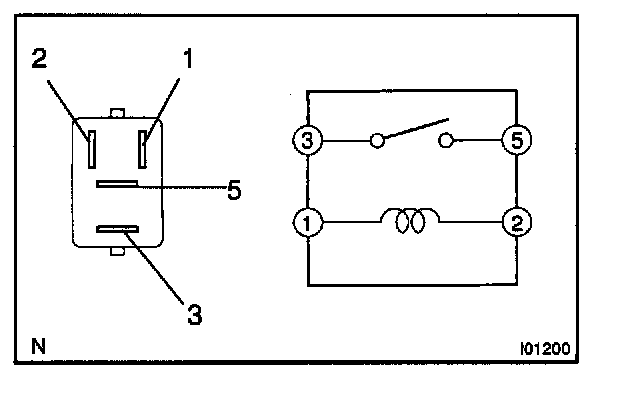

2. INSPECT FOG LIGHT RELAY CONTINUITY
If continuity is not as specified, replace the relay.
