Ignition Coil: Service and Repair

REMOVAL

1. REMOVE NO. 2 CYLINDER HEAD COVER

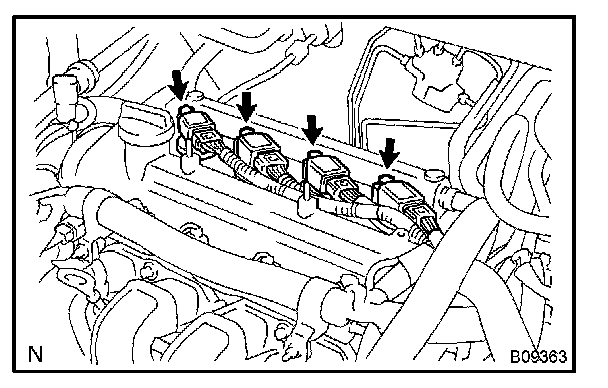

2. DISCONNECT 4 IGNITION COIL CONNECTORS
3. REMOVE IGNITION COILS (WITH IGNITER) FROM SPARK PLUGS

Remove the 4 bolts and pull out the 4 ignition coils (with igniter).

Torque: 9.0 Nm (92 kgf.cm, 80 in.lbf)

INSTALLATION

Installation is in the reverse order of removal
