Home >> Toyota >> 2004 >> Echo L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Powertrain Management >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

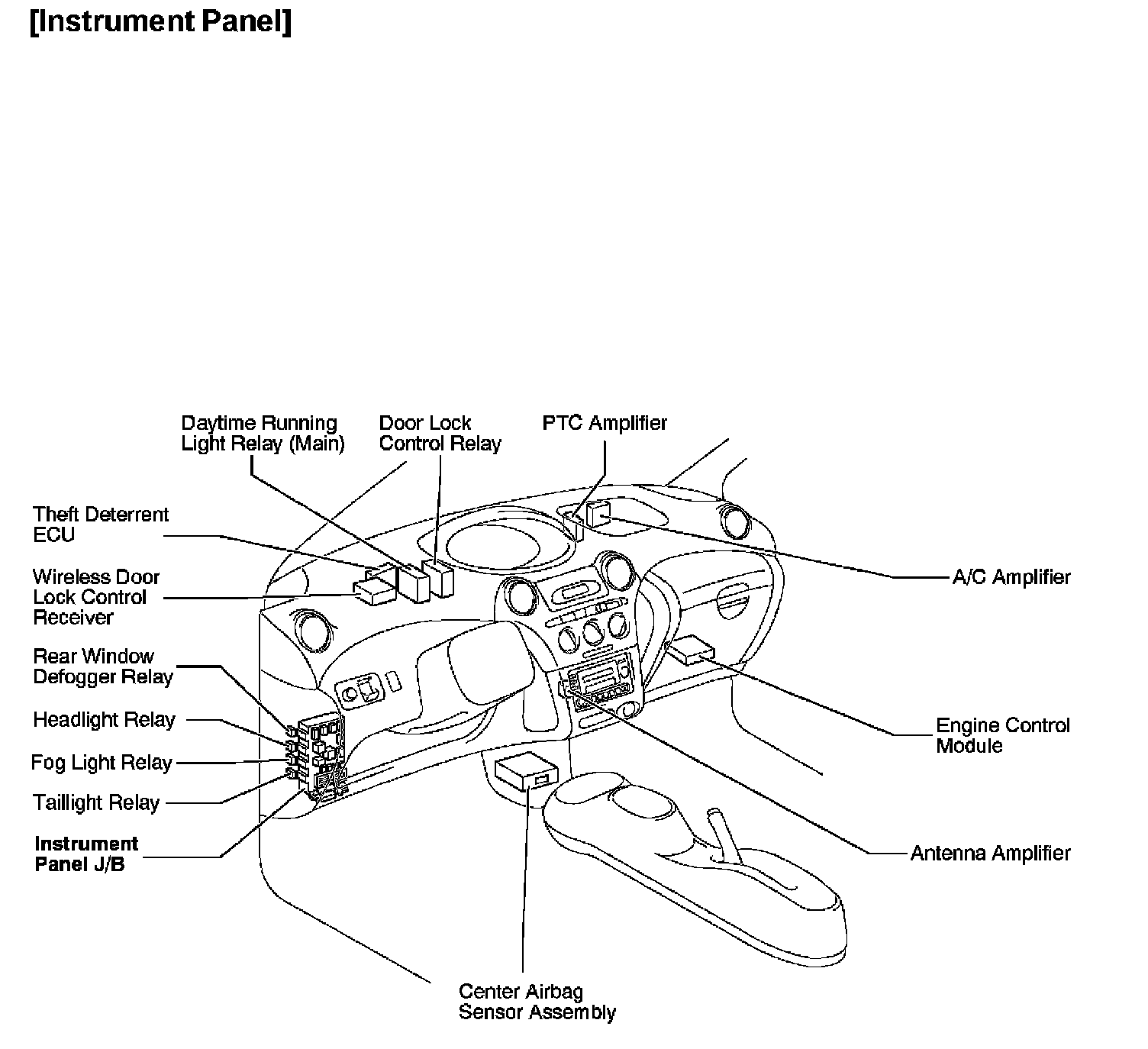

Engine Control Module: Locations

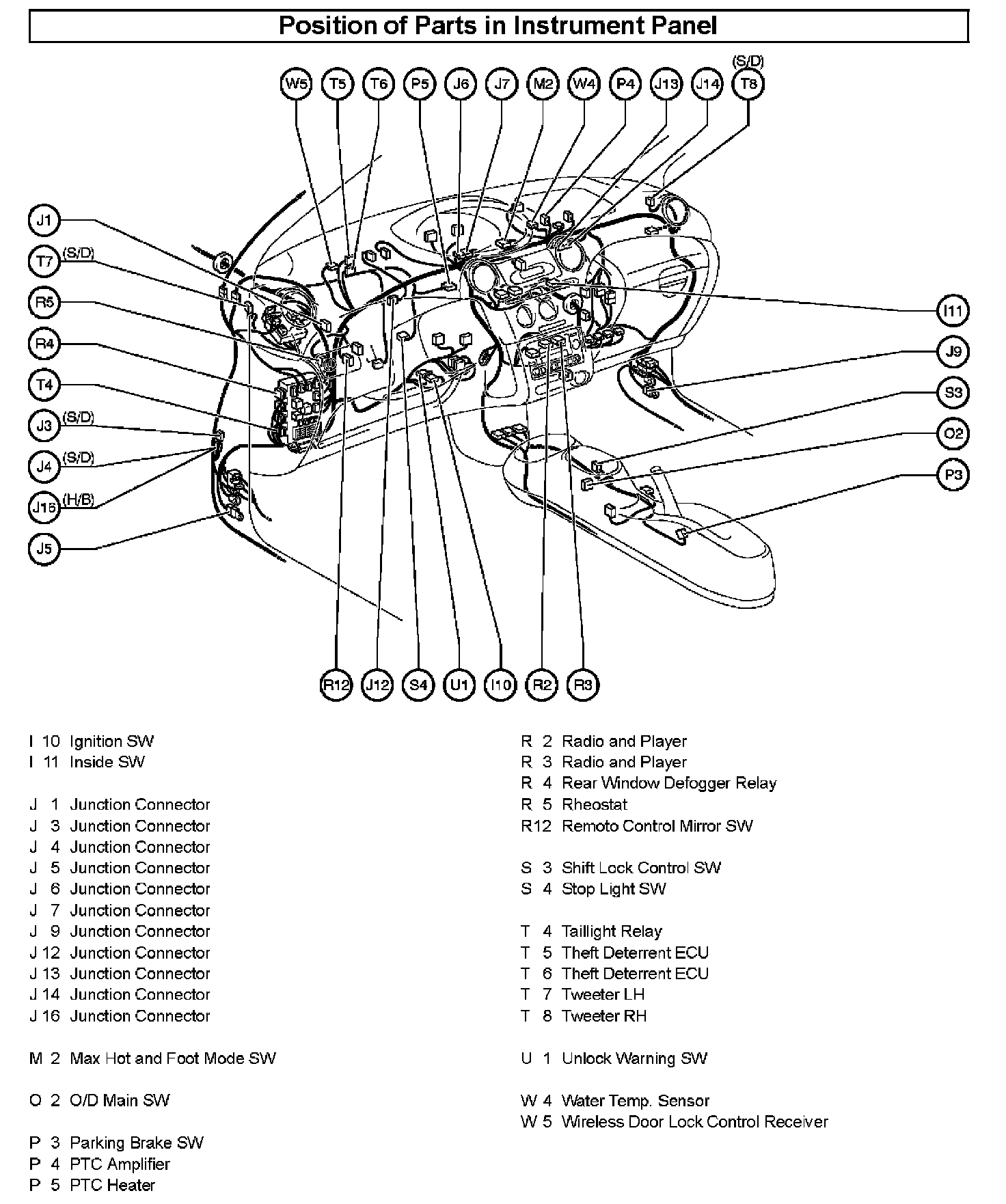

Instrument Panel:



Ig - Wi:
