Collision / Non-Collision Inspections
INSPECTIONVEHICLES NOT INVOLVED IN COLLISION
a. Do a diagnostic system check. *
b. Do a visual check which includes the following items with the seatback assembly installed in the vehicle.
Check that there are no cuts or frayed in seams and out-side of seatback cover.
VEHICLE INVOLVED IN A COLLISION AND AIRBAG IS NOT DEPLOYED
a. Do a diagnostic system check. *

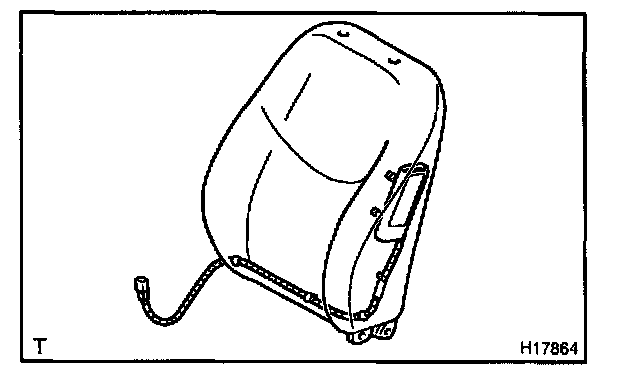

b. Do a visual check which includes the following items with the seatback assembly removed from the vehicle.
- Check cuts and cracks of the side airbag assembly.
- Check cuts and cracks in wire harnesses, and chipping in connectors.
CAUTION: For removal and installation of the seatback assembly. Be sure to follow the correct procedure.
VEHICLE INVOLVED IN A COLLISION AND AIRBAG IS DEPLOYED
a. Do a diagnostic system check. *
b. Do a visual check which includes the following items with the seatback assembly removed from the vehicle

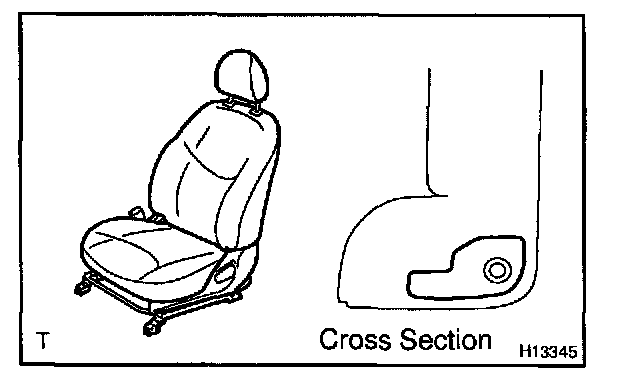

- Check the seatback installation part of the seat adjuster.
- Check the damage to the connector and wire harness.
HINT: If the seat adjuster is deformed, never repair it. Always replace it with new one.
* Refer to Air Bag Systems; Testing and Inspection.
