Collision / Non-Collision Inspections

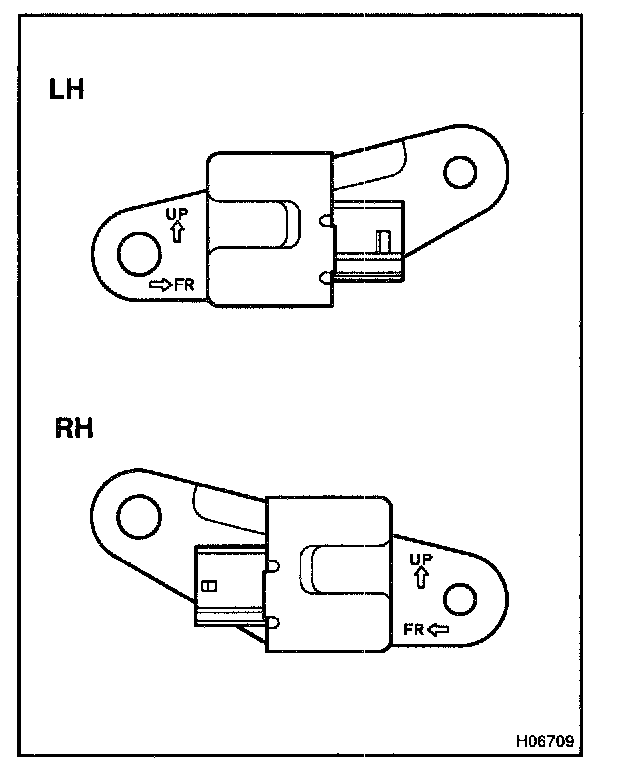

Door Side Airbag Sensor (2-Door)
INSPECTION




1. VEHICLES NOT INVOLVED IN COLLISION
Do a diagnostic system check. *

2. VEHICLES INVOLVED IN COLLISION
a. Do a diagnostic system check. *

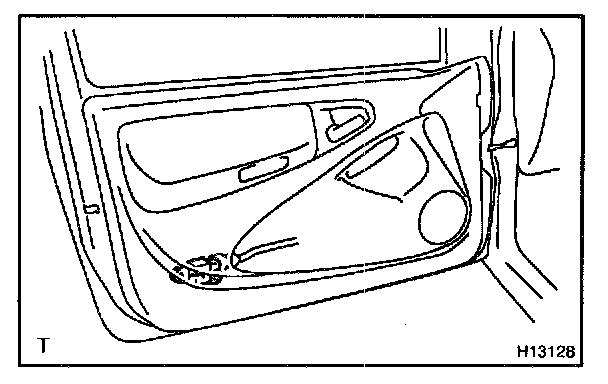

b. If the front door or its periphery is damaged, do a visual check for damage to the door side airbag sensor, which includes the following items even if the airbag was not deployed:




- Bracket deformation
- Paint peeling off the bracket
- Cracks, dents or chips in the case
- Cracks, dents, chipping and scratches in the connector
- Peeling off of the label or damage to the serial number

* Refer to Air Bag Systems; Testing and Inspection.
