Power Mirror Switch: Testing and Inspection

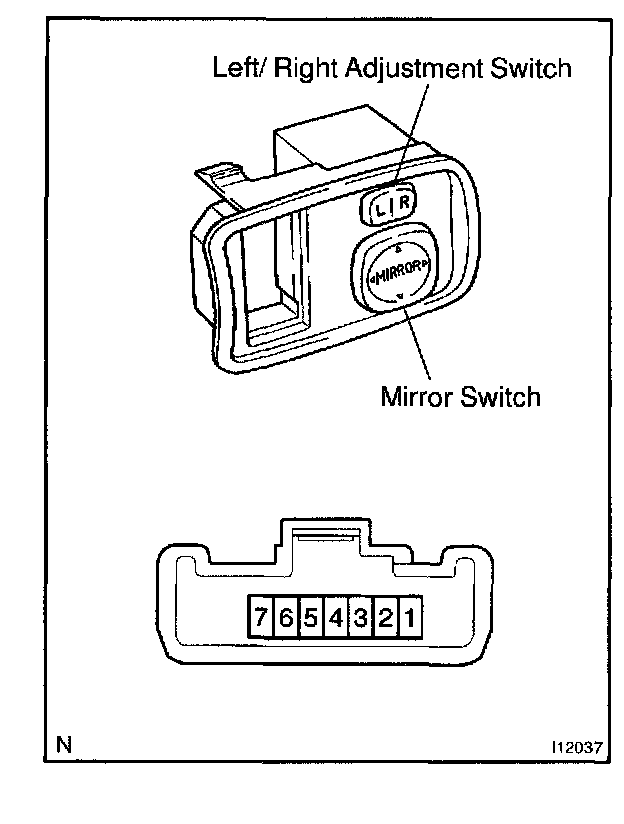

INSPECT MIRROR SWITCH CONTINUITY

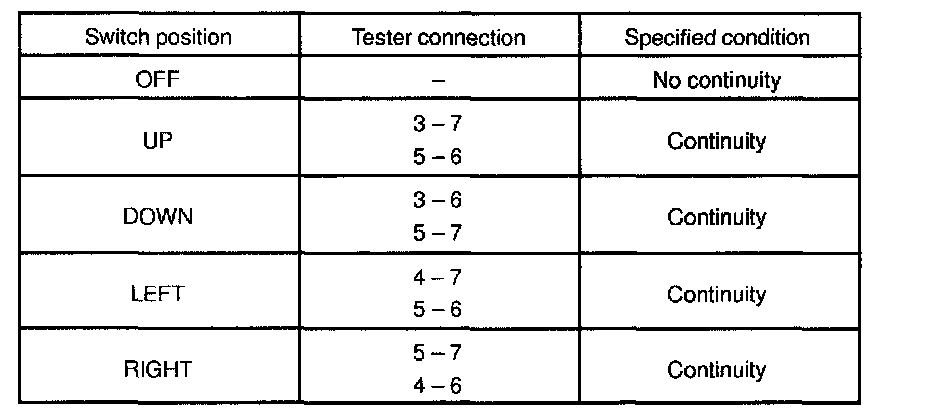

Left Side For Left/Right Adjustment Switch:

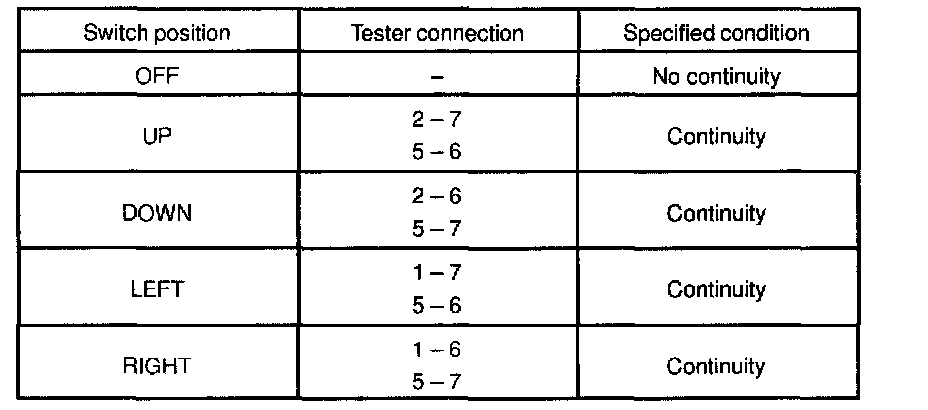

Right Side For Left/Right Adjustment Switch:




1. INSPECT MIRROR SWITCH CONTINUITY
If continuity is not as specified, replace the switch.
