System Specifications

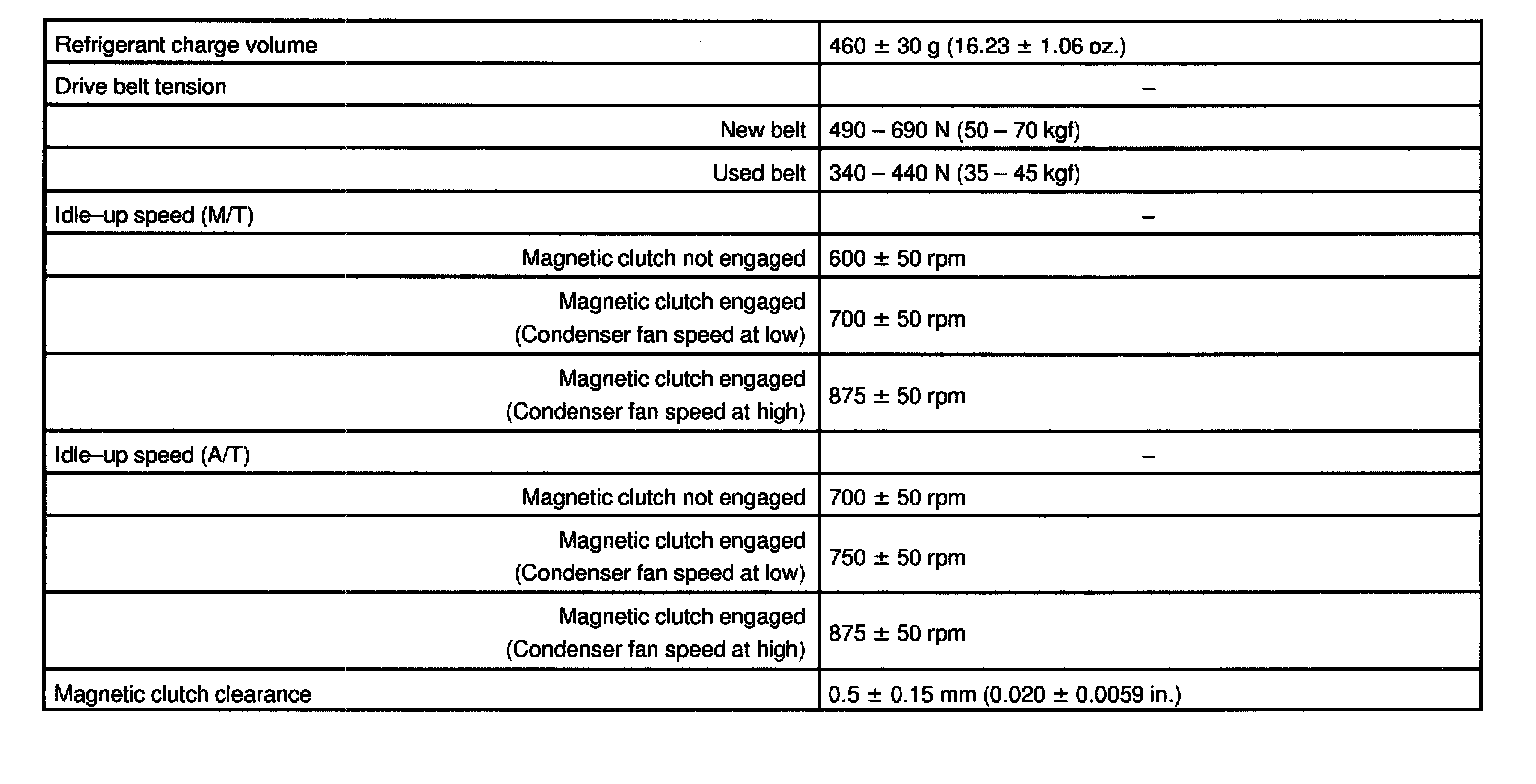

Airconditioning - Service Data:

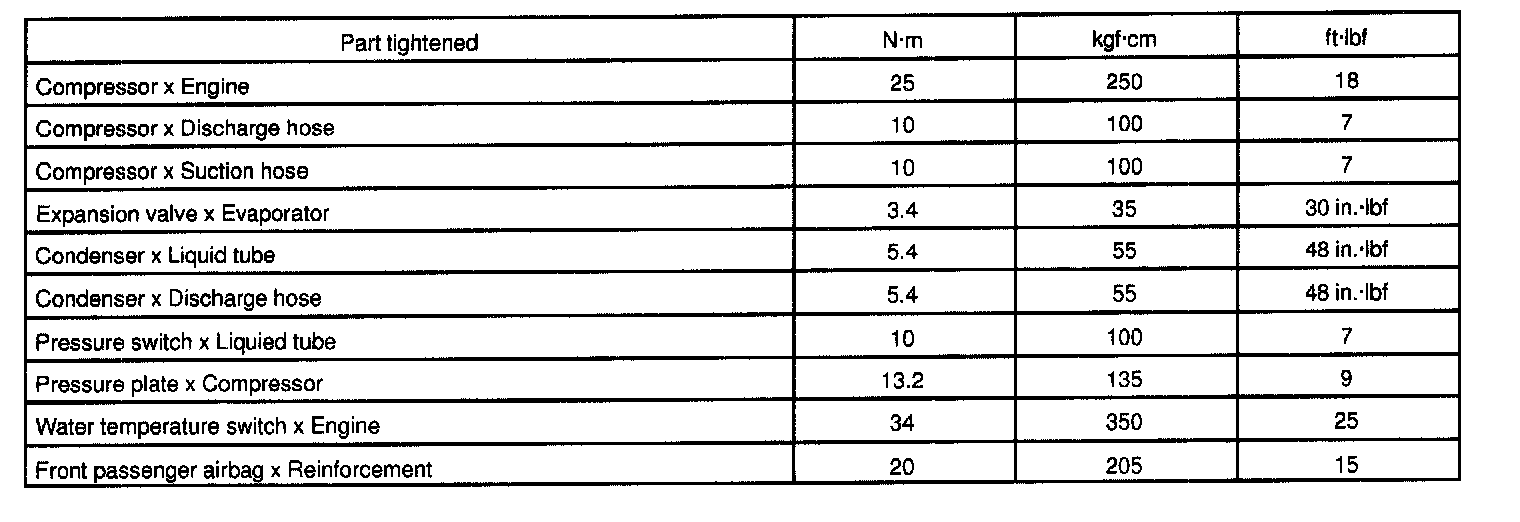

Air Conditioning Torque Specification:

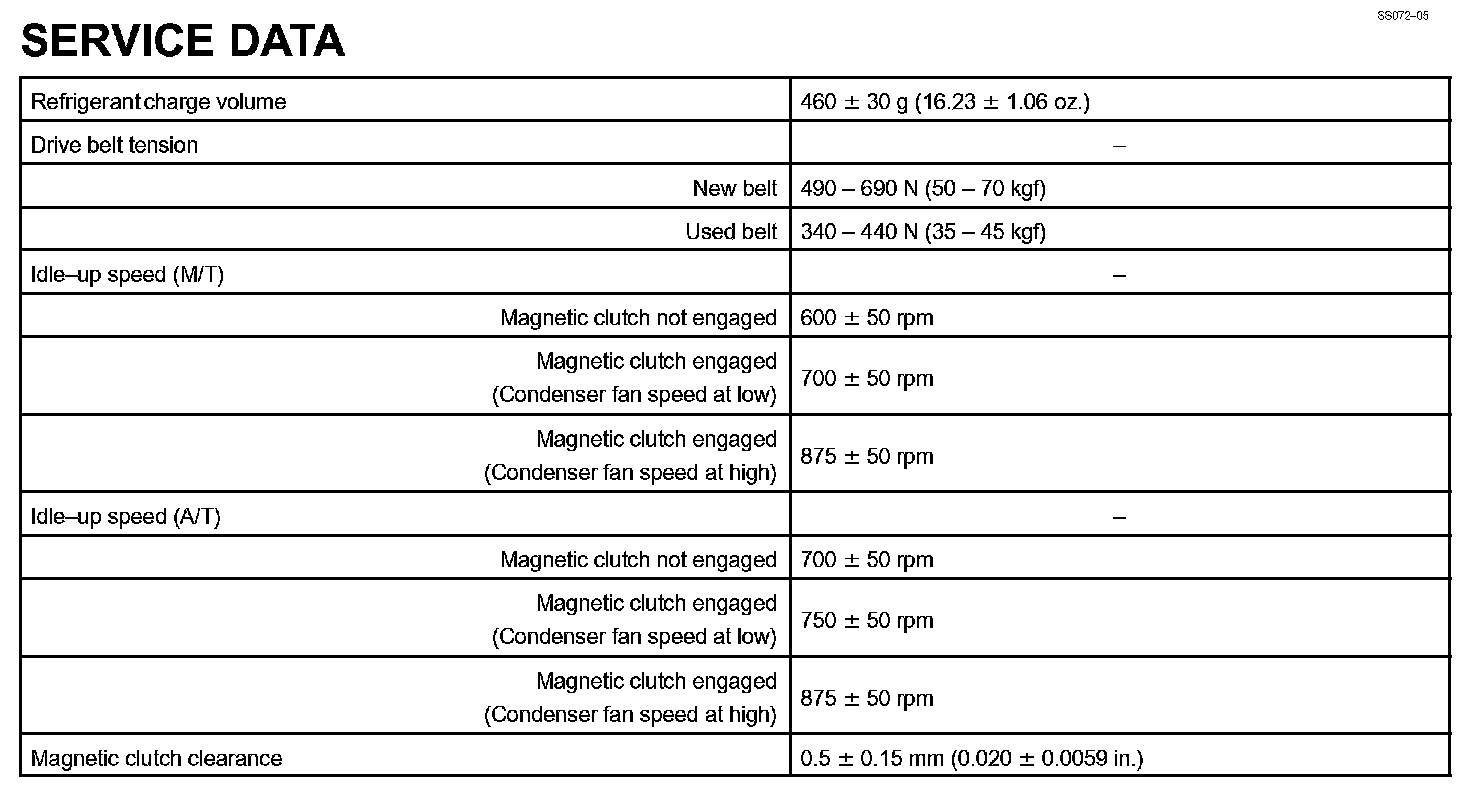

Air Conditioning - Service Data:

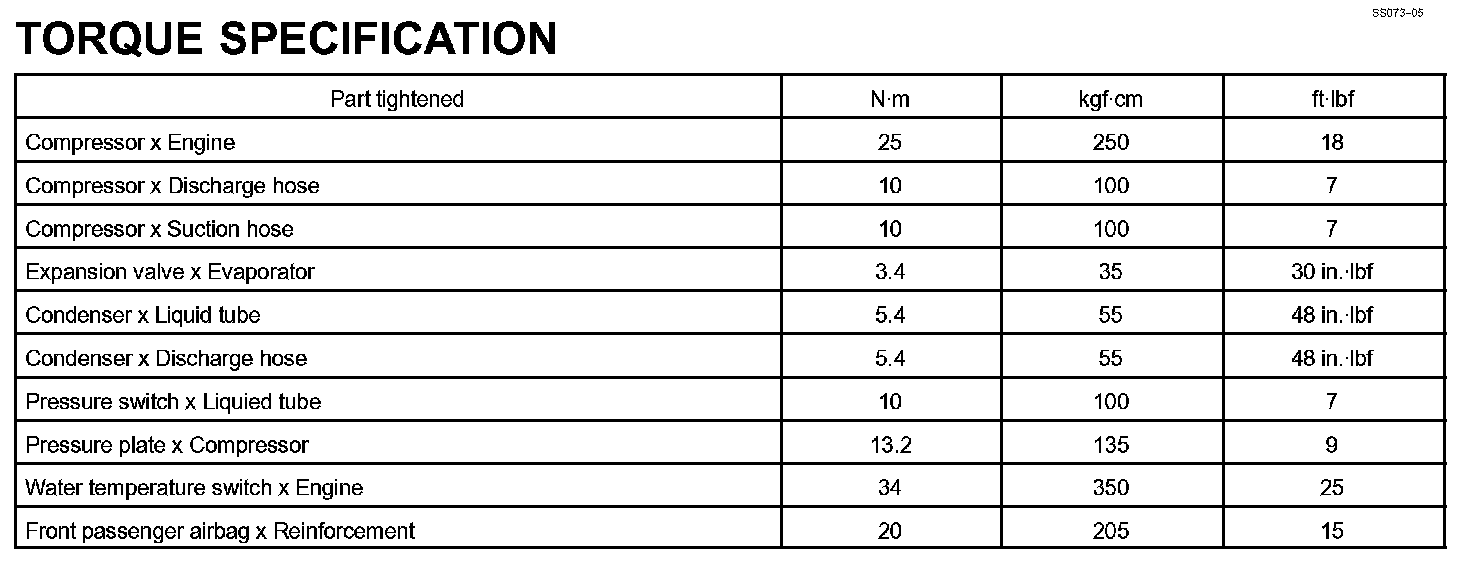

Air Conditioning - Torque Specification:
