System Specifications

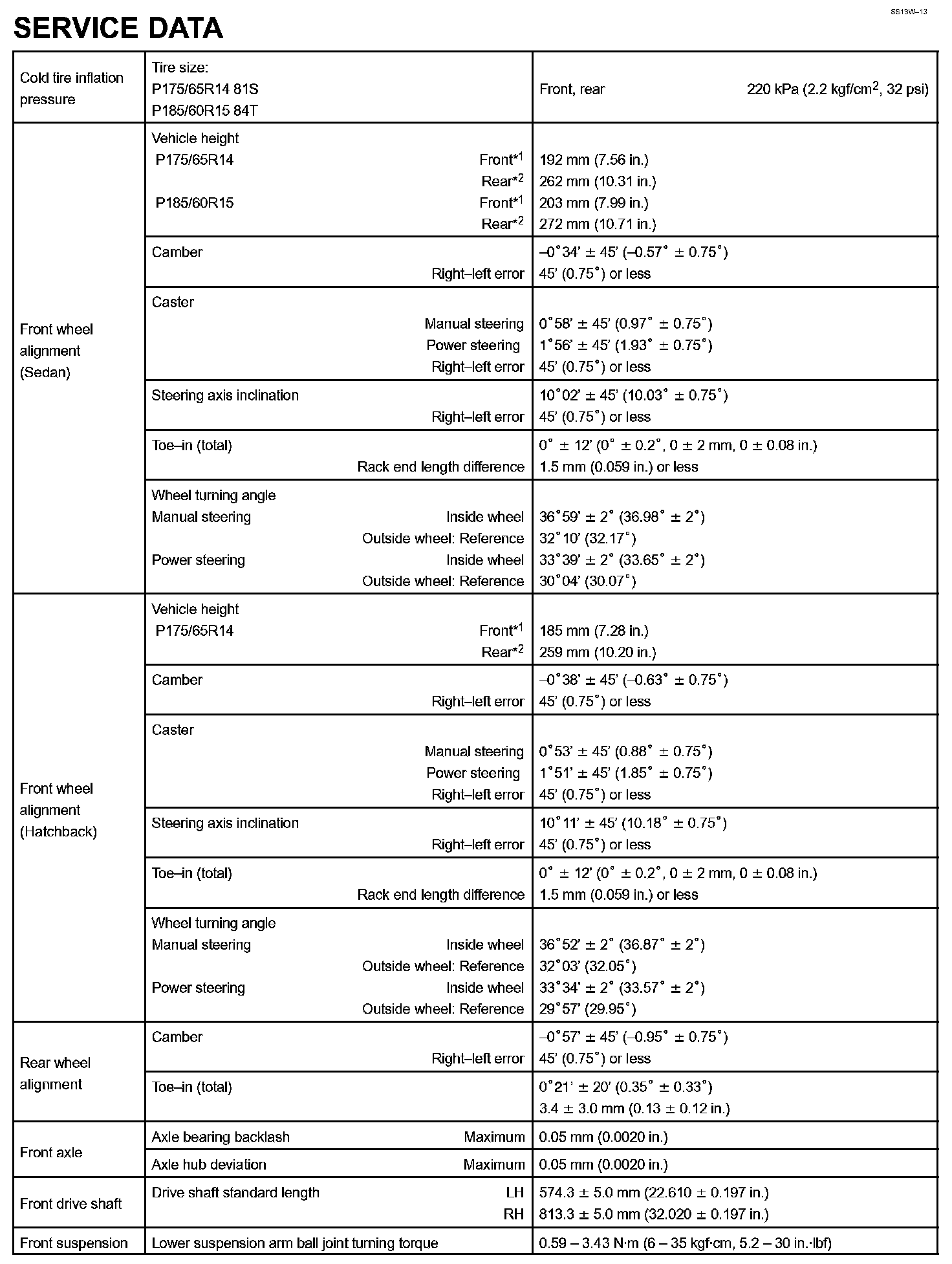

Suspension And Axle - Service Data Part 1:

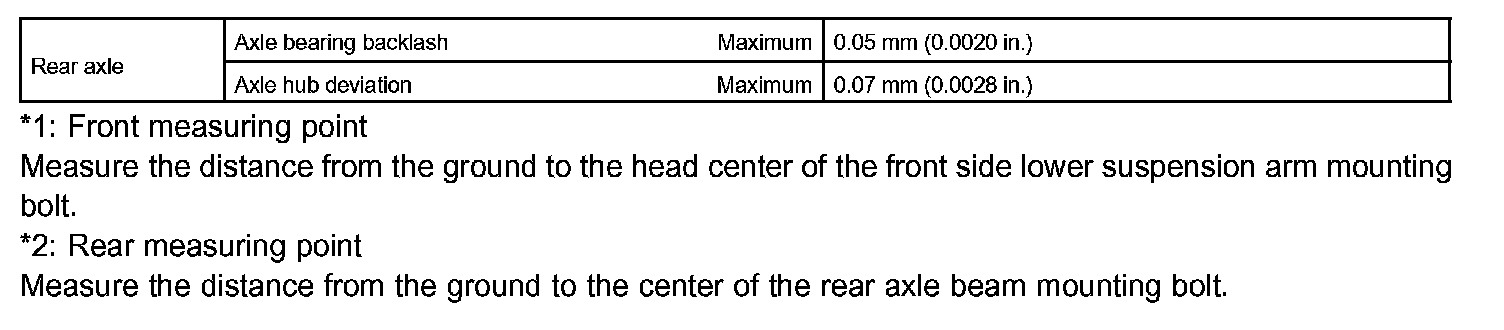

Suspension And Axle - Service Data Part 2:

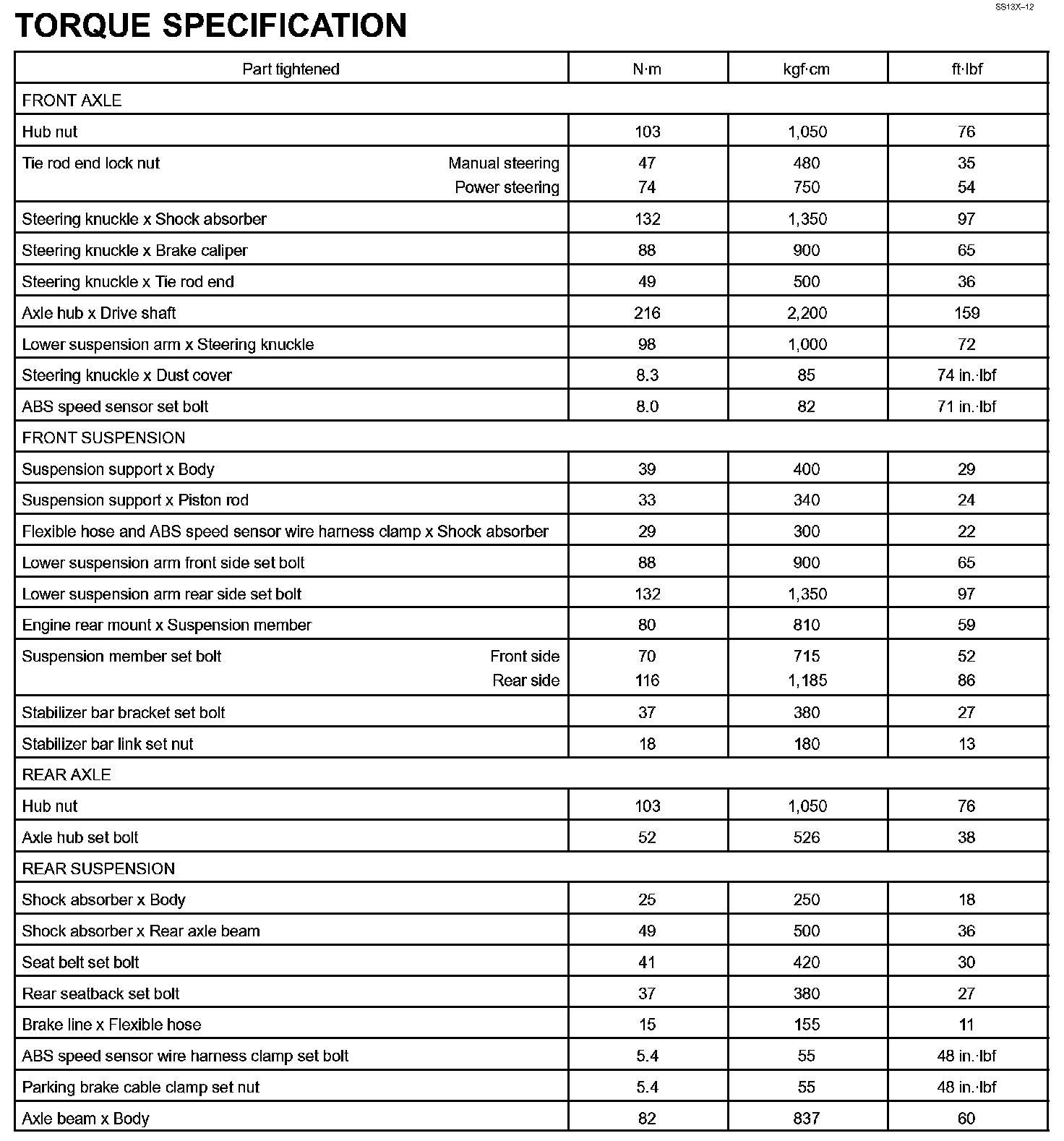

Suspension And Axle - Torque Specification:
