Disassembly and Reassembly

DISASSEMBLY
REMOVE COIL SPRING

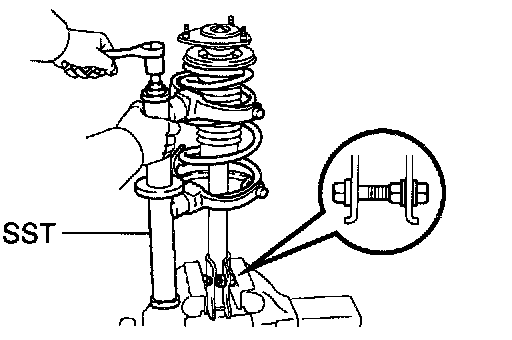

a. Install 2 nuts and a bolt to the bracket at the lower side of the shock absorber and secure it in a vise.





b. Using SST, compress the coil spring.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

NOTICE: Do not use an impact wrench. It will damage the SST.

c. Remove the cap from the suspension support.

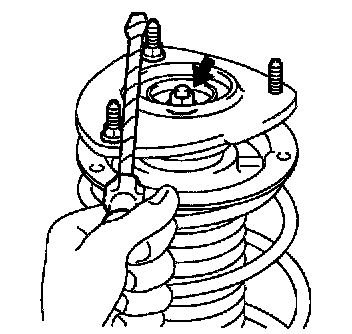

d. Using 2 nuts and a screwdriver or an equivalent to hold, remove the center nut.

NOTICE: Do not damage the suspension support stud bolts.

e. Remove the suspension support, dust seal, spring upper seat, upper insulator, spring bumper and coil spring.

INSPECTION
INSPECT SHOCK ABSORBER

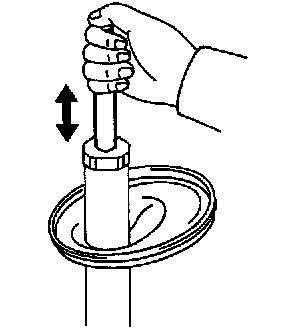

Compress and extend the shock absorber rod and check that there is no abnormal resistance or unusual sound during operation.
If there is any abnormality, replace the shock absorber with a new one.

NOTICE: When disposing of the shock absorber, see DISPOSAL.

DISPOSAL
1. FULLY EXTEND SHOCK ABSORBER ROD





2. DRILL HOLE TO DISCHARGE GAS FROM CYLINDER

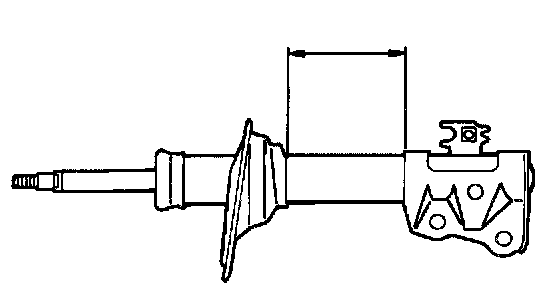

Using a drill, make a hole in the cylinder as shown in the illustration to discharge the gas inside.

CAUTION:
^ When drilling, chips may fly out, work carefully.
^ The gas is colorless, odorless and non-poisonous.

REASSEMBLY
1. INSTALL SPRING BUMPER TO PISTON ROD
2. INSTALL COIL SPRING

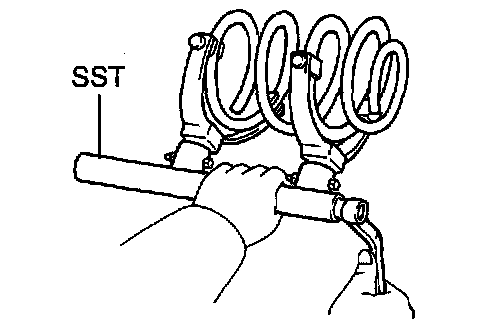

a. Using SST, compress the coil spring.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)

NOTICE: Do not use an impact wrench. It will damage the SST.

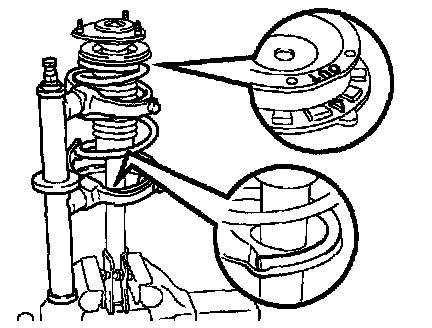

b. Install the coil spring to the shock absorber.

HINT: Fit the lower end of the coil spring into the gap of the spring lower seat.

c. Install the upper insulator with the "a" mark facing to the outside of the vehicle.
d. Install the spring upper seat with the "OUT" mark facing to the outside of the vehicle.
e. Install the dust seal and suspension support.

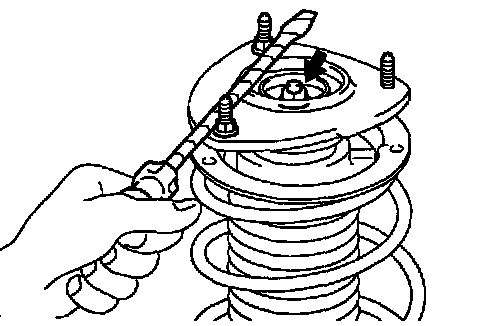

f. Using 2 nuts and a screwdriver or an equivalent to hold, install a new center nut.
Torque: 33 Nm (340 kgf-cm, 24 ft. lbs.)

NOTICE: Do not damage the suspension support stud bolts.

g. Remove the SST.
SST 09727-30021 (09727-00010, 09727-00021, 09727-00031)





h. Apply MP grease into the suspension support.
i. Install the cap.
