Direct Clutch Speed Sensor on-Vehicle Repair

DIRECT CLUTCH SPEED SENSOR
ON-VEHICLE REPAIR





1. REMOVE AIR CLEANER ASSEMBLY

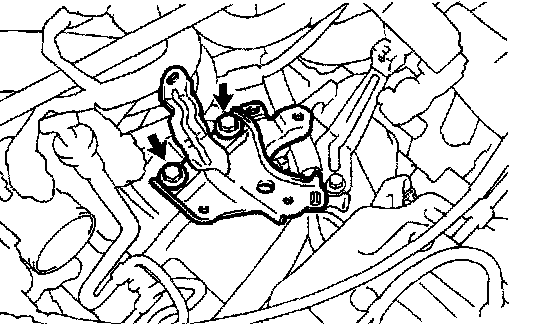

2. REMOVE AIR CLEANER ASSEMBLY BRACKET
Remove the 2 bolts and bracket and shift control cable clamp.

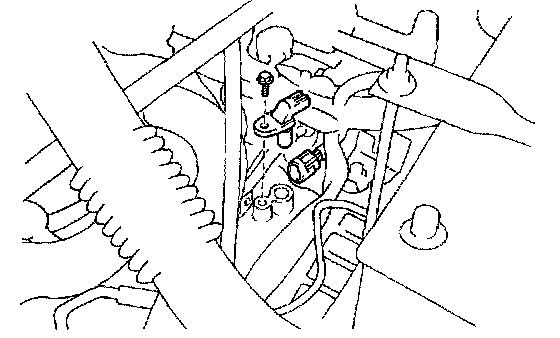

3. REMOVE DIRECT CLUTCH SPEED SENSOR
a) Disconnect the connector.
b) Remove the bolt and direct clutch speed sensor.
c) Remove the O-ring from the direct clutch speed sensor.
4. INSTALL DIRECT CLUTCH SPEED SENSOR
a) Coat a new O-ring with ATF and install it to the direct clutch speed sensor.
b) Install the direct clutch speed sensor with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
c) Connect the connector.

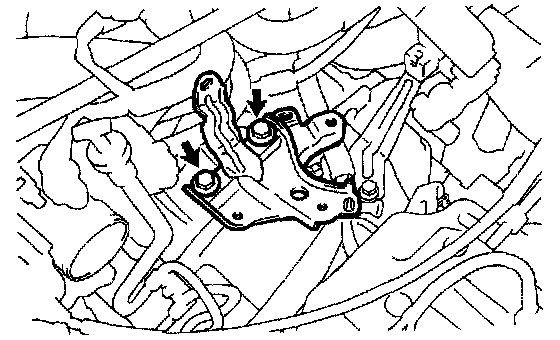

5. INSTALL AIR CLEANER BRACKET
Install the bracket with the 2 bolts.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)
6. INSTALL AIR CLEANER ASSEMBLY AND SHIFT CONTROL CABLE CLAMP
