Disassembly and Reassembly

DISASSEMBLY





1. REMOVE INLET UNION

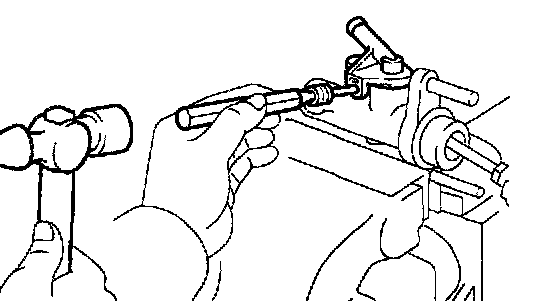

a) Using a pin punch (3 mm) and hammer, drive out the slotted spring pin.
b) Remove the inlet union and grommet.
2. REMOVE CLEVIS AND BOOT
a) Loosen the lock nut to remove the clevis and remove the lock nut.
b) Remove the boot.





3. REMOVE PUSH ROD

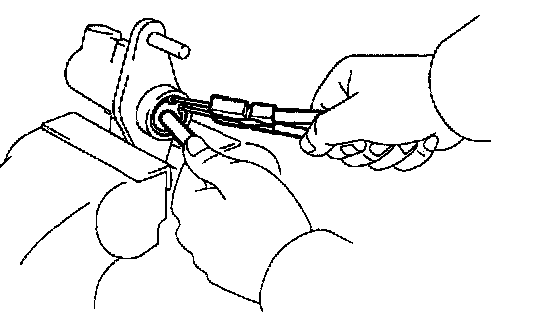

a) While pushing the push rod, using snap ring pliers, remove the snap ring.
b) Remove the push rod and washer.
4. REMOVE PISTON WITH SPRING

REASSEMBLY

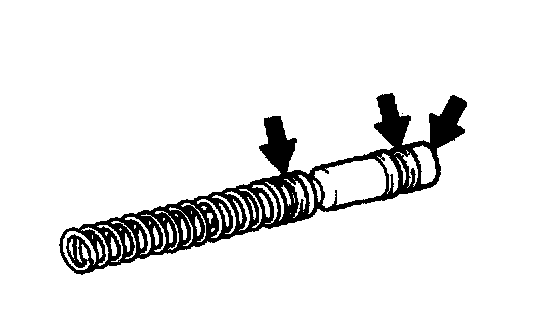

1. COAT PARTS WITH LITHIUM SOAP BASE GLYCOL GREASE, AS SHOWN
2. INSERT PISTON WITH SPRING INTO CYLINDER
3. INSTALL PUSH ROD AND BOOT
a) Install the washer to the push rod.
b) Push the push rod to the piston, using snap ring pliers, install the snap ring.
c) Install the boot.
4. TEMPORARILY INSTALL LOCK NUT AND CLEVIS





5. INSTALL INLET UNION
a) Install the inlet union and a new grommet.

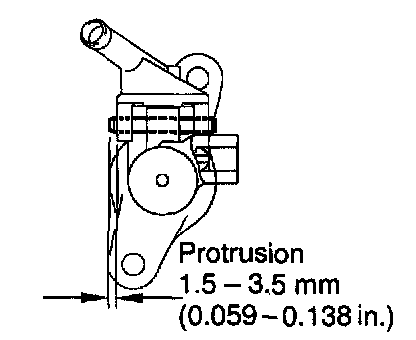

b) Using a pin punch (3 mm) and hammer, drive in the slotted spring pin.
