Disassembly and Reassembly

DISASSEMBLY





1. REMOVE BLEEDER PLUG
2. REMOVE UNION BOLT, 2 GASKETS AND UNION
3. PULL OUT BOOT WITH PUSH ROD

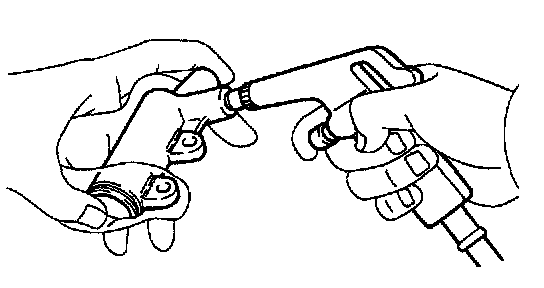

4. REMOVE PISTON WITH SPRING
Using compressed air, remove the piston with the spring from the cylinder.

NOTICE:
^ Blowing off the air may cause the piston's jump-out. When removing the piston, hold it with your hand using a waste cloth.
^ Take care not to splash brake fluid when air-blowing.

REASSEMBLY

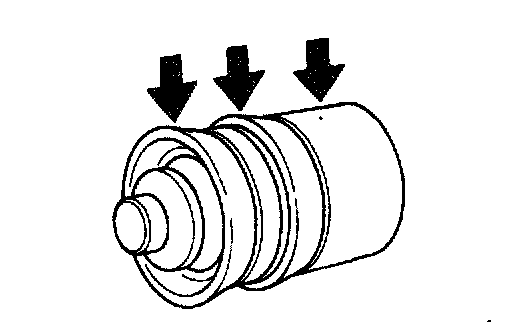

1. COAT PISTON WITH LITHIUM SOAP BASE GLYCOL GREASE, AS SHOWN
2. INSTALL PISTON WITH SPRING INTO CYLINDER
3. INSTALL BOOT WITH PUSH ROD TO CYLINDER
4. INSTALL UNION AND 2 NEW GASKETS WITH UNION BOLT
Torque: 24.5 Nm (250 kgf-cm, 18 ft. lbs.)
5. INSTALL BLEEDER PLUG
Torque: 8.4 Nm (85 kgf-cm, 74 inch lbs.)
