Removal and Installation

REMOVAL





1. DISCONNECT CLUTCH LINE

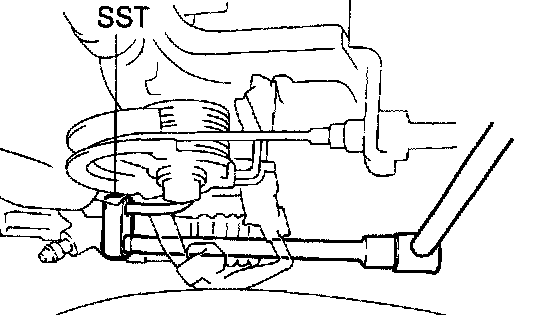

a) Using SST, disconnect the clutch line.
SST 09023-00100
b) Use a container to catch the fluid.
2. REMOVE 2 BOLTS AND PULL OUT RELEASE CYLINDER

INSTALLATION
1. INSTALL RELEASE CYLINDER WITH 2 BOLTS
Torque: 12 Nm (120 kgf-cm, 9 ft. lbs.)





2. CONNECT CLUTCH LINE

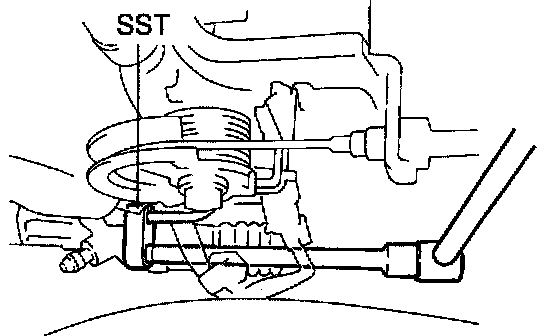

Using SST, connect the clutch line.
SST 09023-00100
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)
3. FILL CLUTCH RESERVOIR WITH BRAKE FLUID AND BLEED CLUTCH SYSTEM
4. CHECK FOR LEAKS
