Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2004
>>
Echo L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Specifications
>>
Mechanical Specifications
Mechanical Specifications

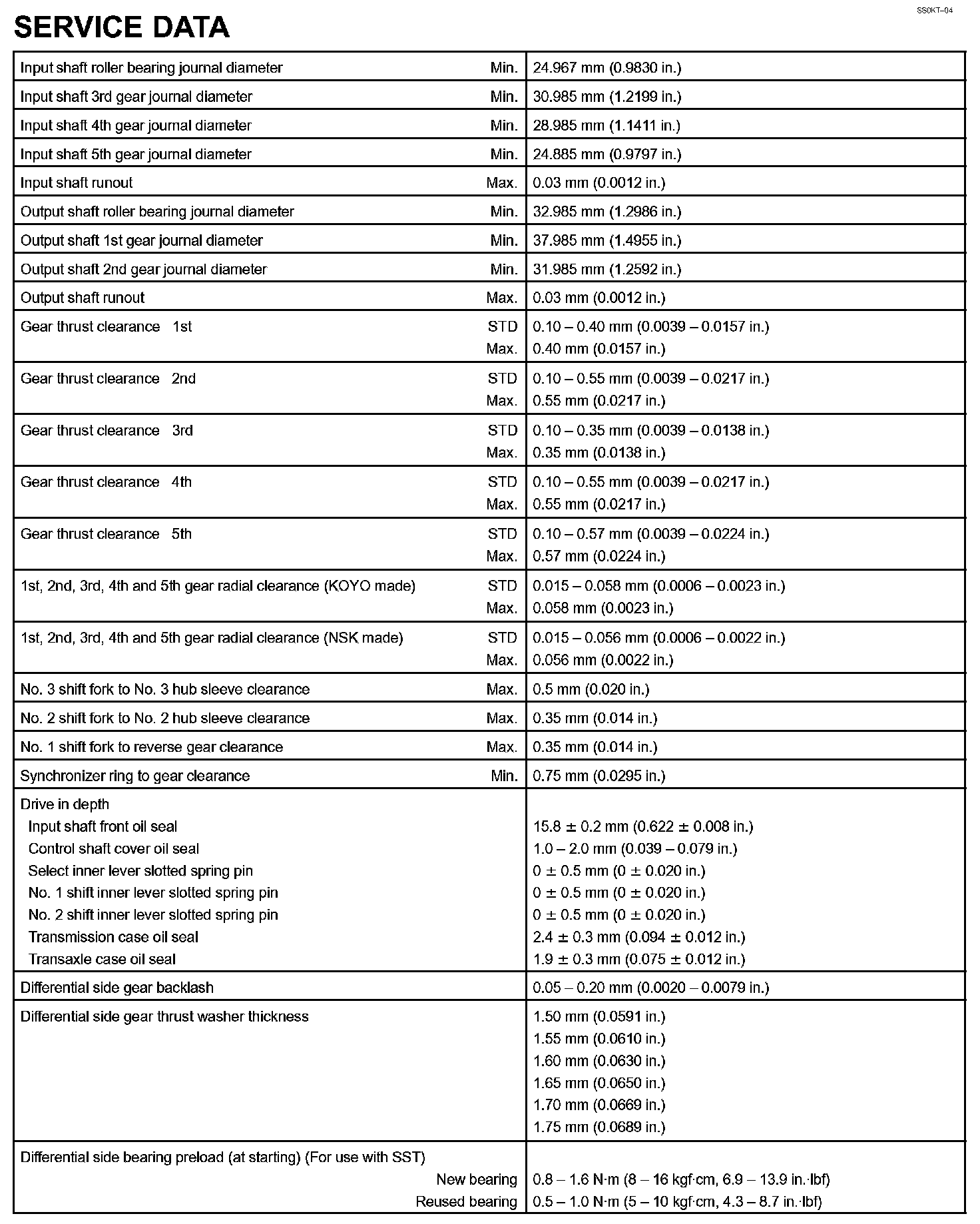

Manual Transaxle - Service Data Part 1:

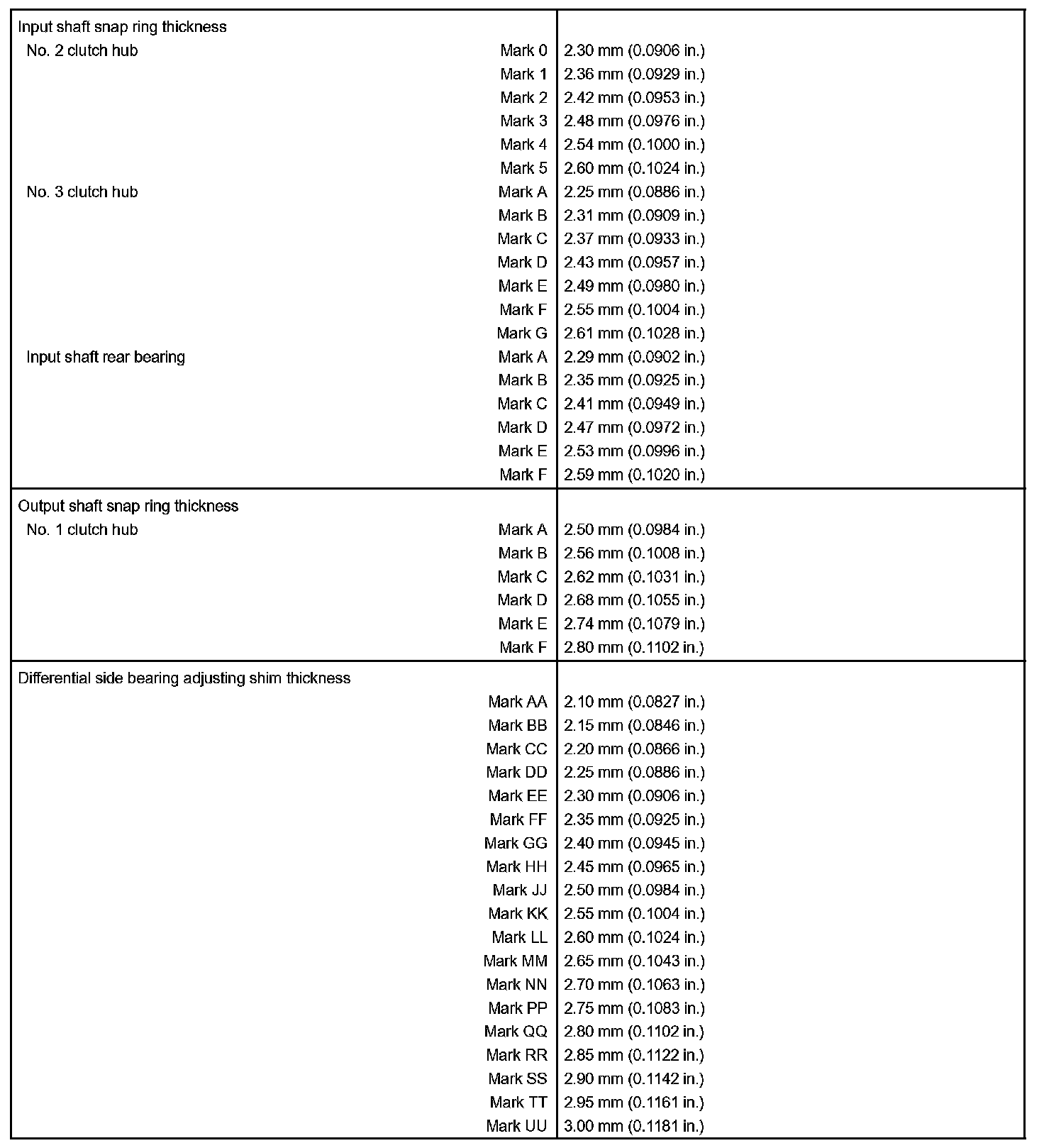

Manual Transaxle - Service Data Part 2:

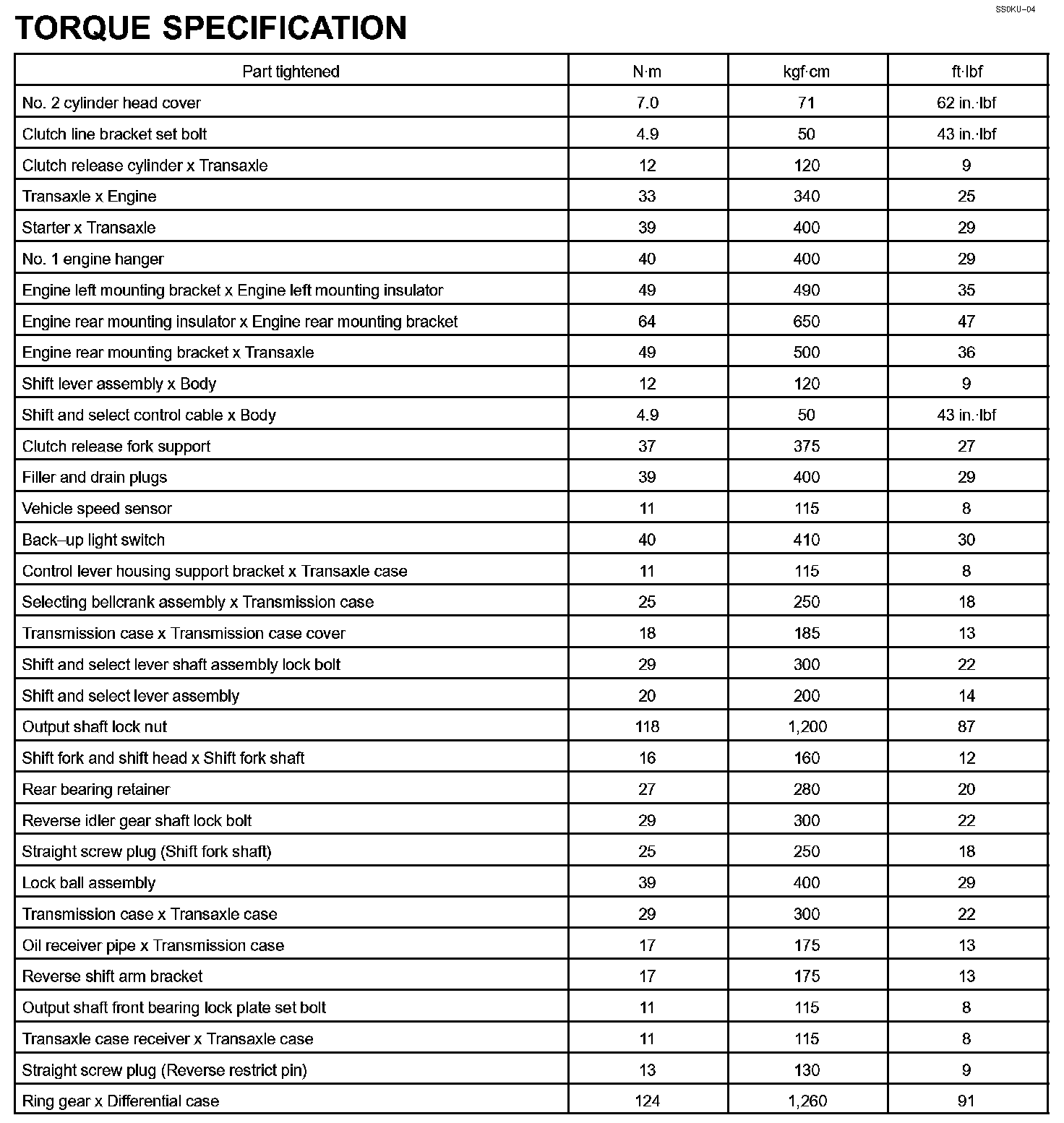

Manual Transaxle - Torque Specification:
