Definition of Terms
Definition of Terms

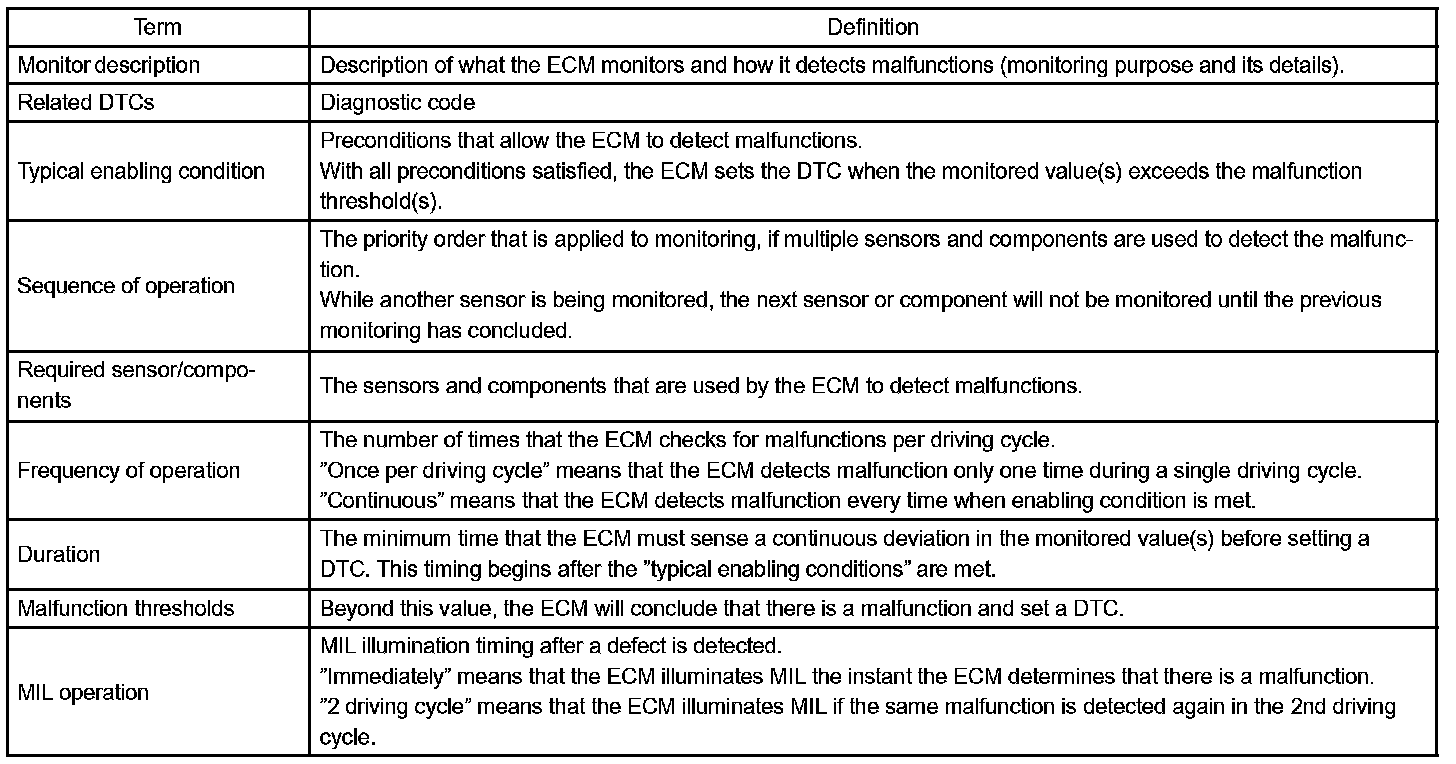

Definition of Terms:

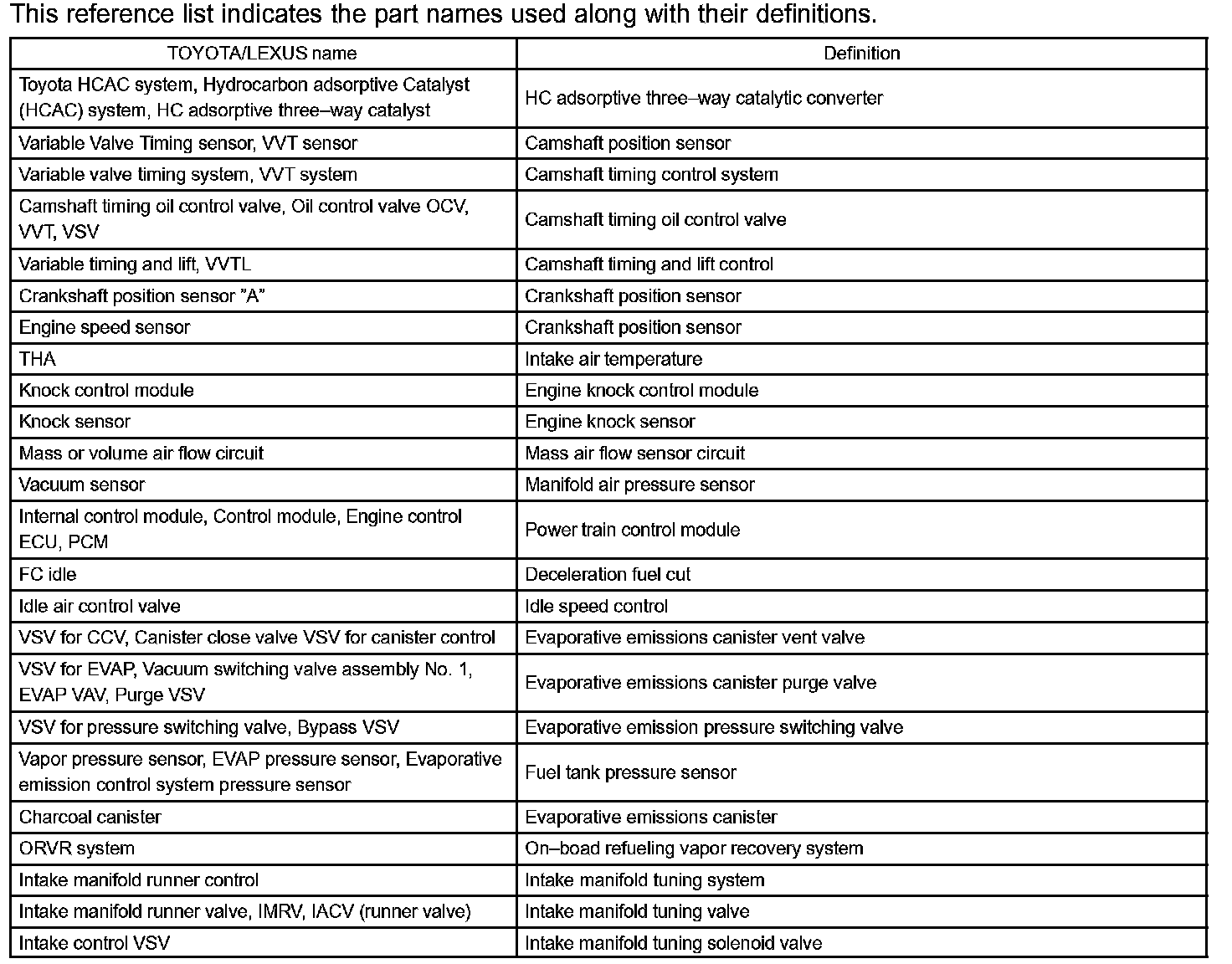

Toyota Part and System Name List Part 1:
Toyota Part and System Name List Part 2:
