Symptom Index
PROBLEM SYMPTOMS TABLEHINT: If a normal code is displayed during the DTC check but the trouble still occurs, check the problem symptom in the order given in the charts and proceed to the relevant troubleshooting.
The Matrix Chart is divided into 3 charts.
Chart 1: Electronic circuit matrix chart
Chart 2: On vehicle repair matrix chart
Chart 3: Off vehicle repair matrix chart
If the instruction Proceed to next circuit inspection shown on matrix chart is given in the flow chart for each circuit, proceed to the circuit with the next highest number in the table to continue the check.
If the trouble still occurs even though there are no abnormalities in any of the other circuits, then check and replace the ECM.

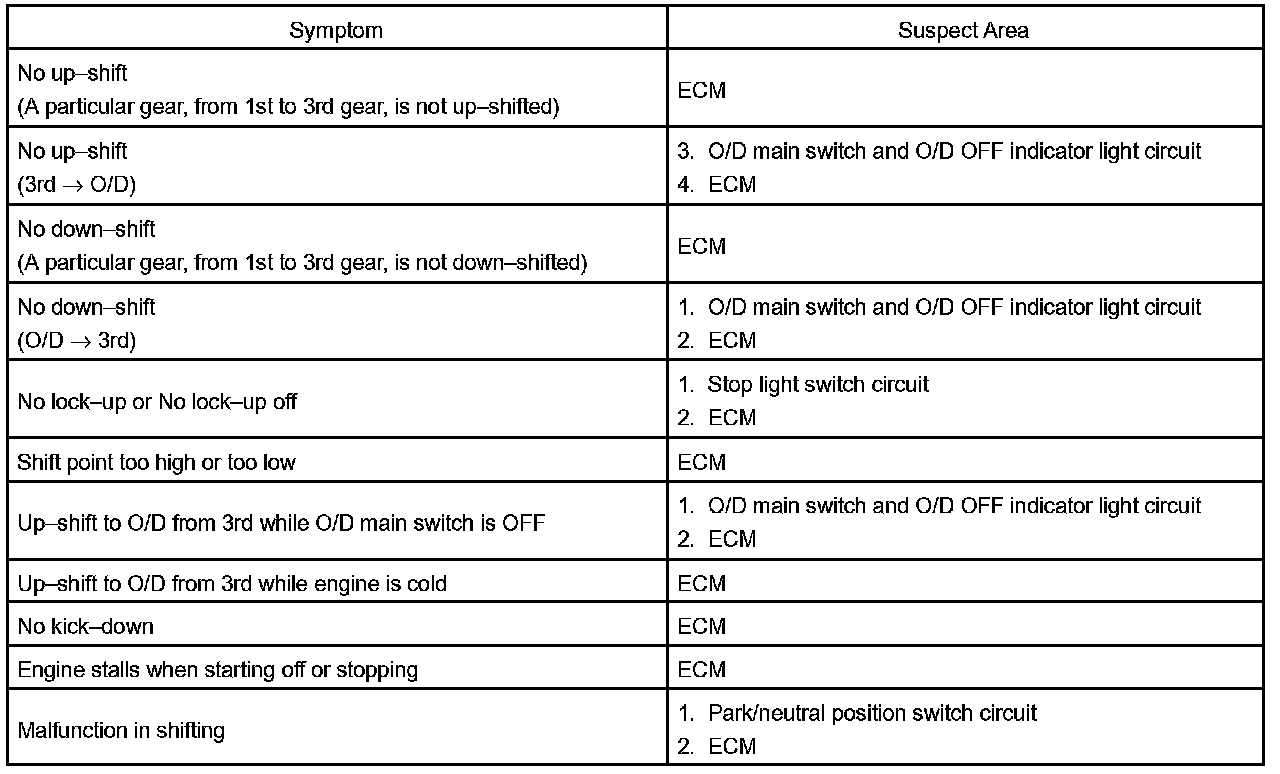

Chart 1: Electronic Circuit Matrix Chart
Part 1:
Part 2:

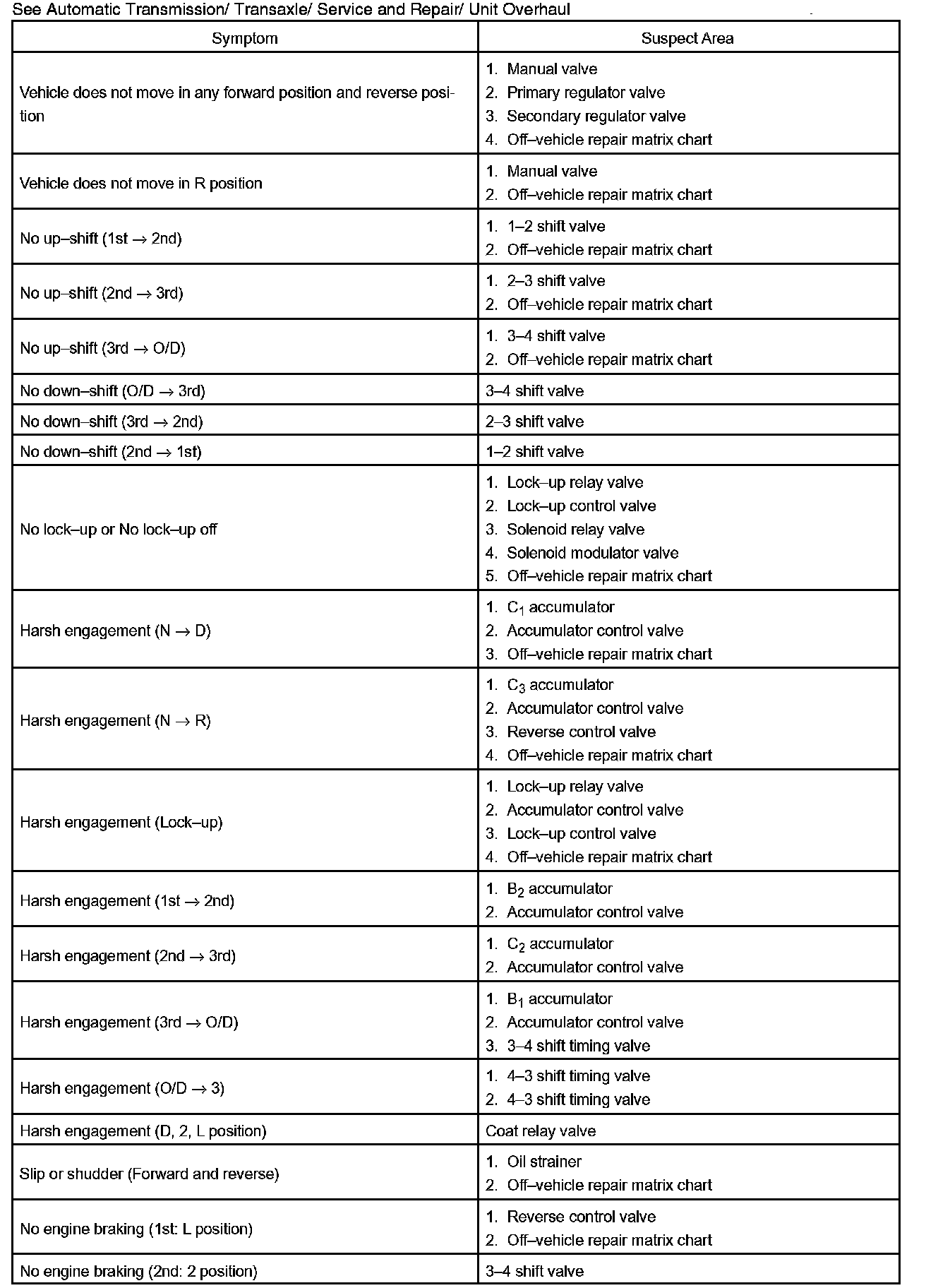

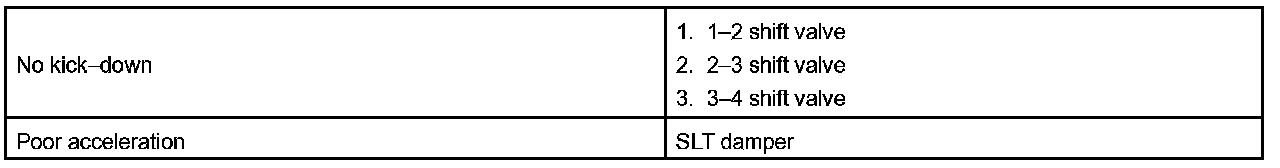

Chart 2: On-Vehicle Repair Matrix Chart

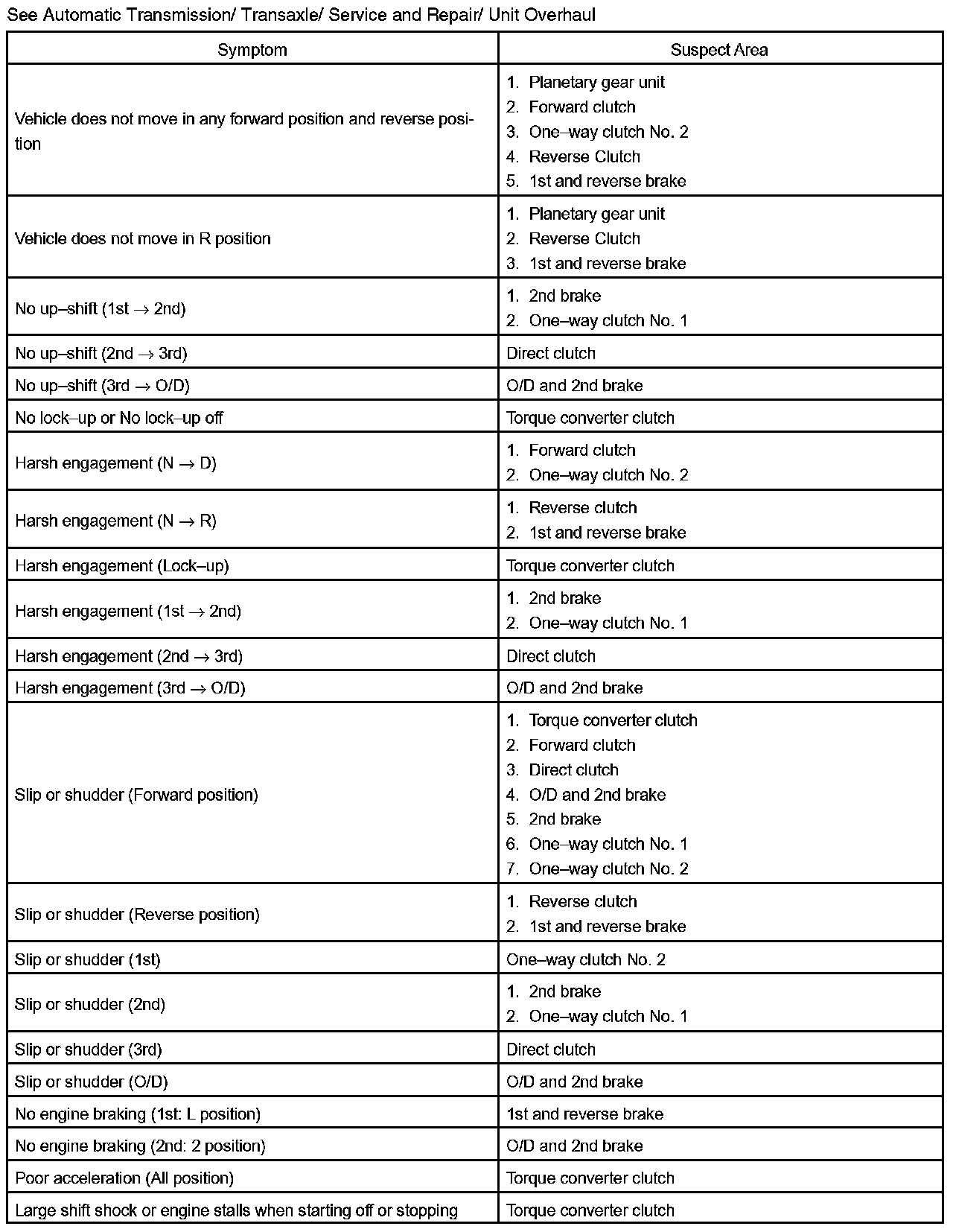

Chart 3: Off-Vehicle Repair Matrix Chart
