Power Window Motor: Testing and Inspection

Front left side door:
INSPECT POWER WINDOW MOTOR OPERATION

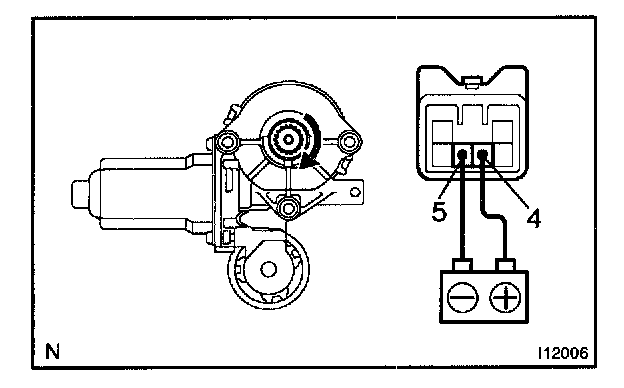

a. Connect the positive (+) lead from the battery to terminal 4 and the negative (-) lead to terminal 5, and check that the motor turns clockwise.

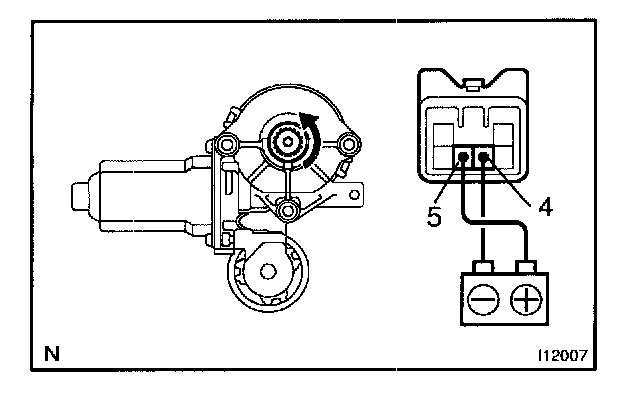

b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

Front right side door:
INSPECT POWER WINDOW MOTOR OPERATION

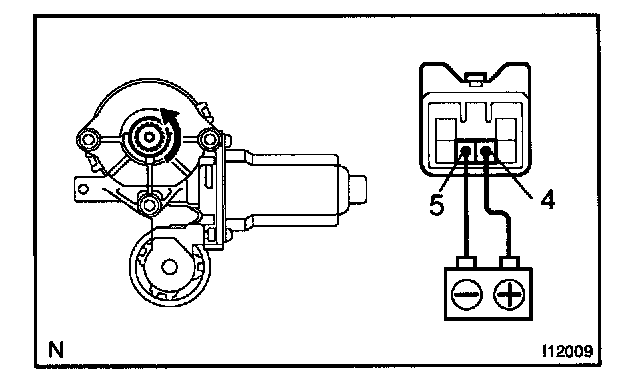

a. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 4, and check that the motor turns clockwise.




b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

Rear left side door:
INSPECT POWER WINDOW MOTOR OPERATION

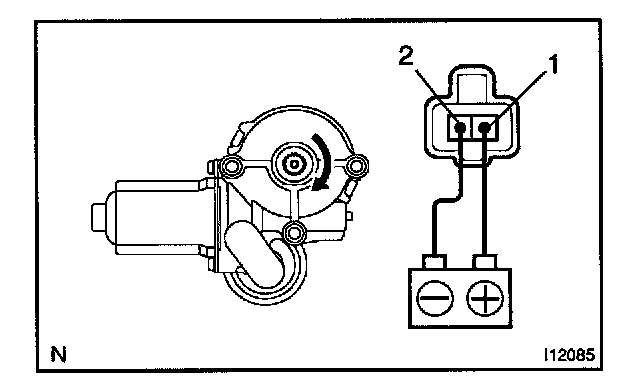

a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.

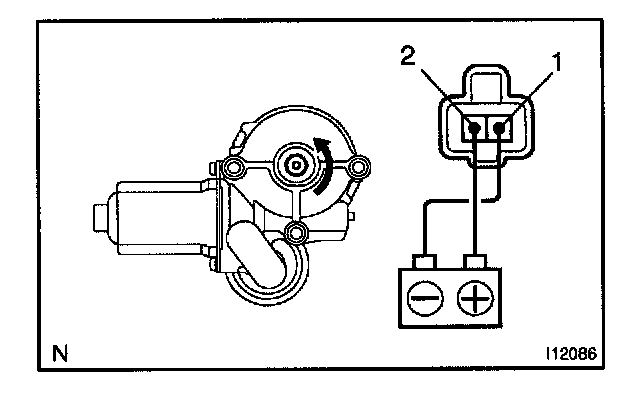

b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

Rear right side door:
INSPECT POWER WINDOW MOTOR OPERATION

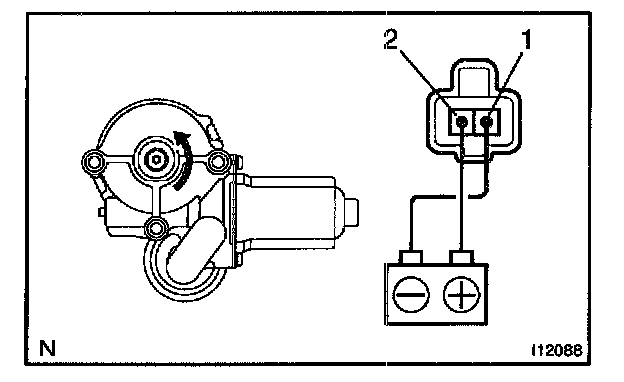

a. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the motor turns clockwise.

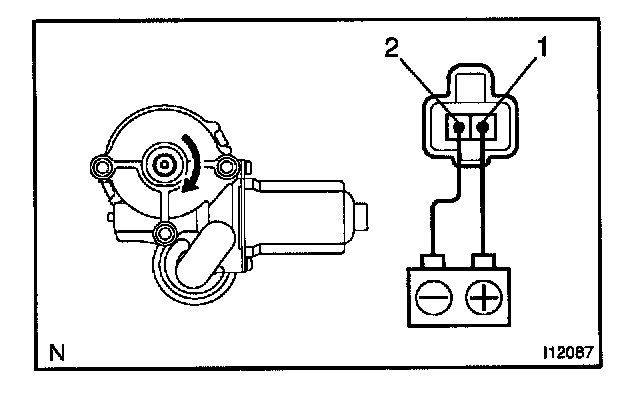

b. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.
