C1251
C1251
DTC C1251 PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND

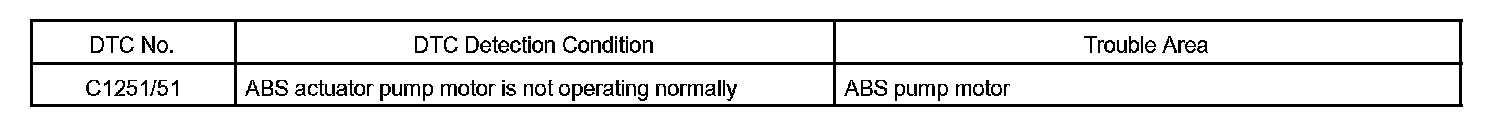

DTC Detection Condition:
CIRCUIT DESCRIPTION

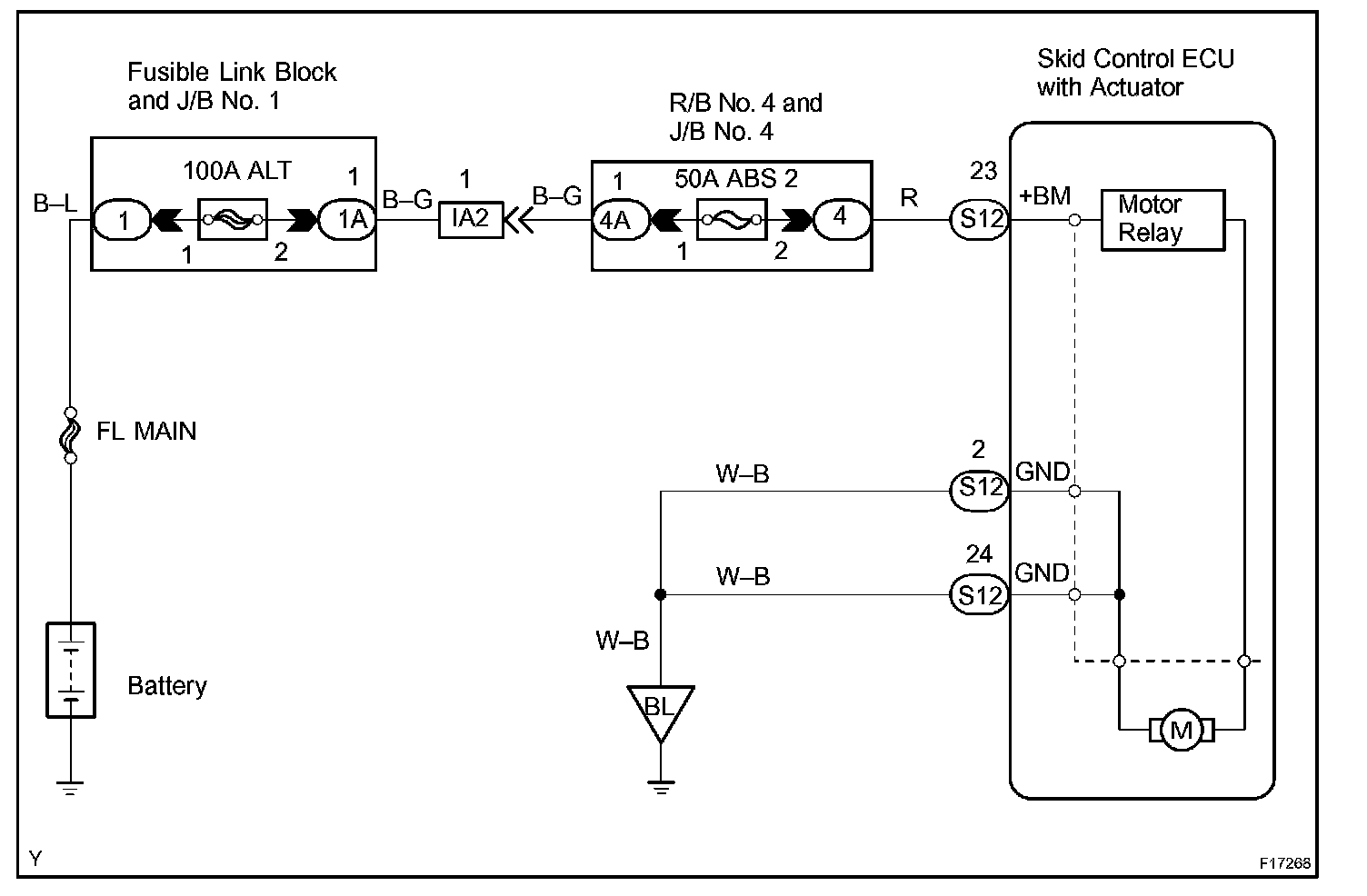

Wiring Diagram:

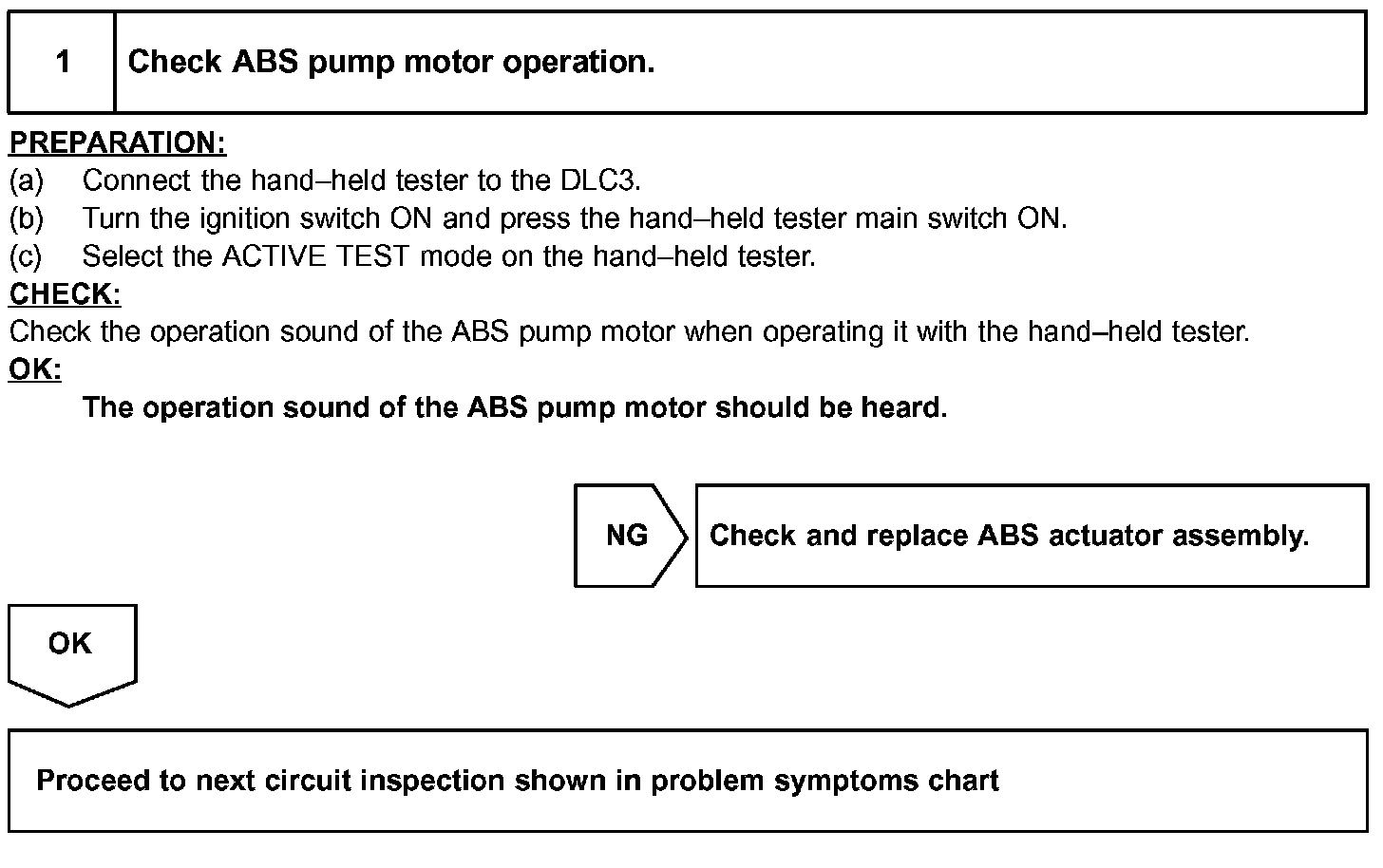

Step 1:
INSPECTION PROCEDURE
