Automatic Transmission System

DIAGNOSTIC TROUBLE CODE CHART

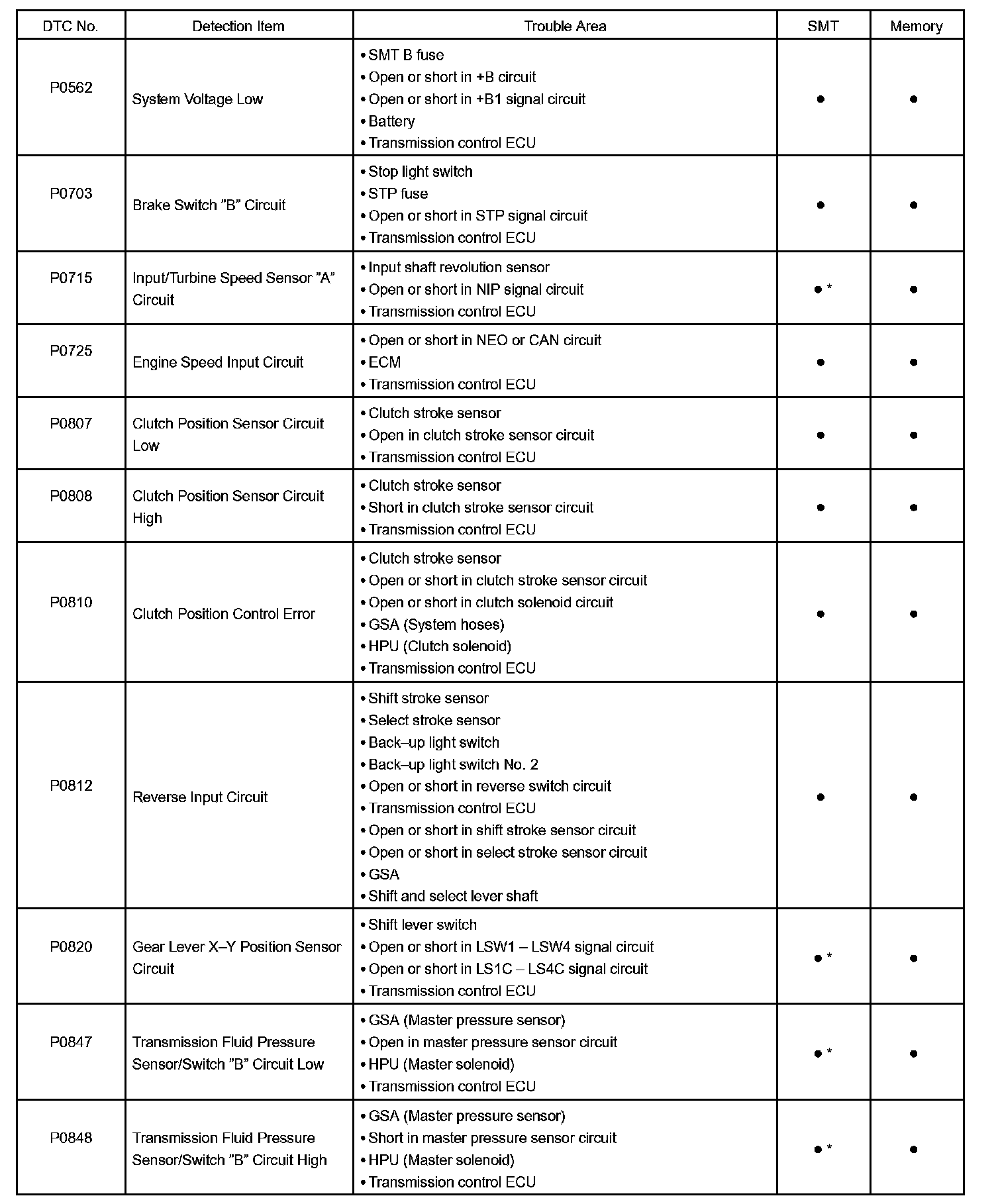

P0562 - P0848:

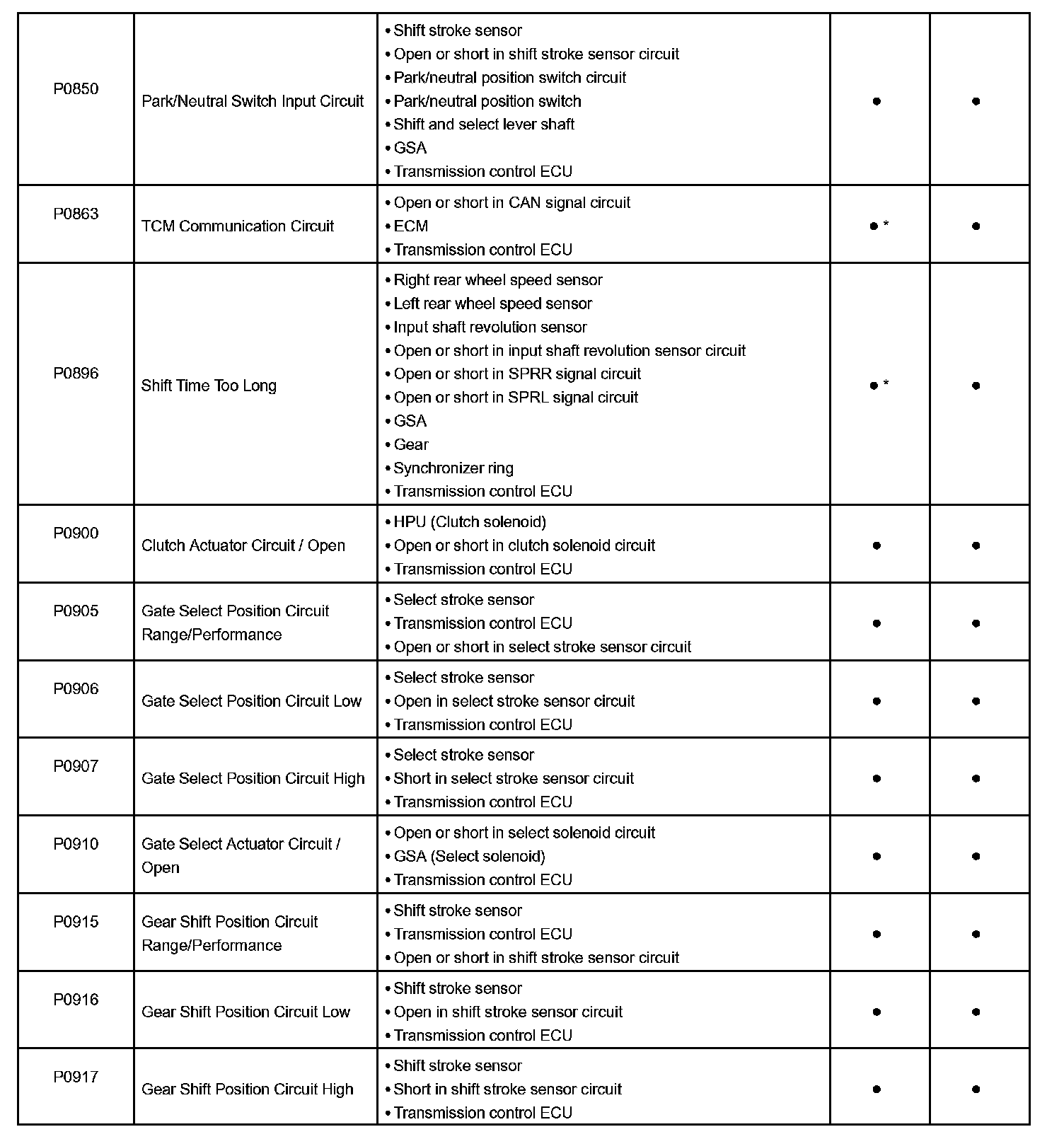

P0850 - P0917:

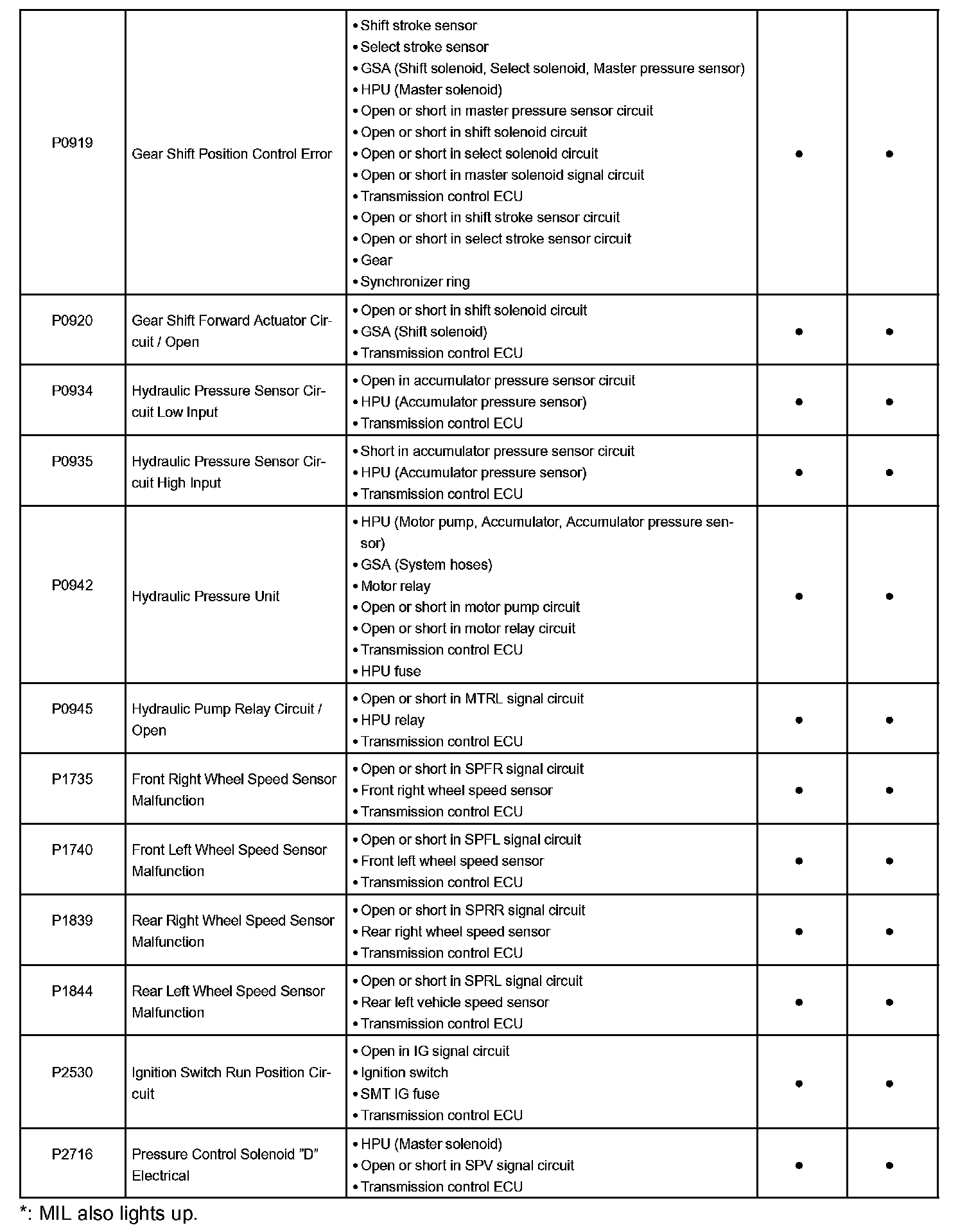

P0919 - P2716:

HINT: Parameters listed in the chart may not be exactly the same as your readings due to the type of instrument or other factors.

If a malfunction code is displayed during the DTC check in the check mode, check the circuit for the codes listed in the table.









NOTE:

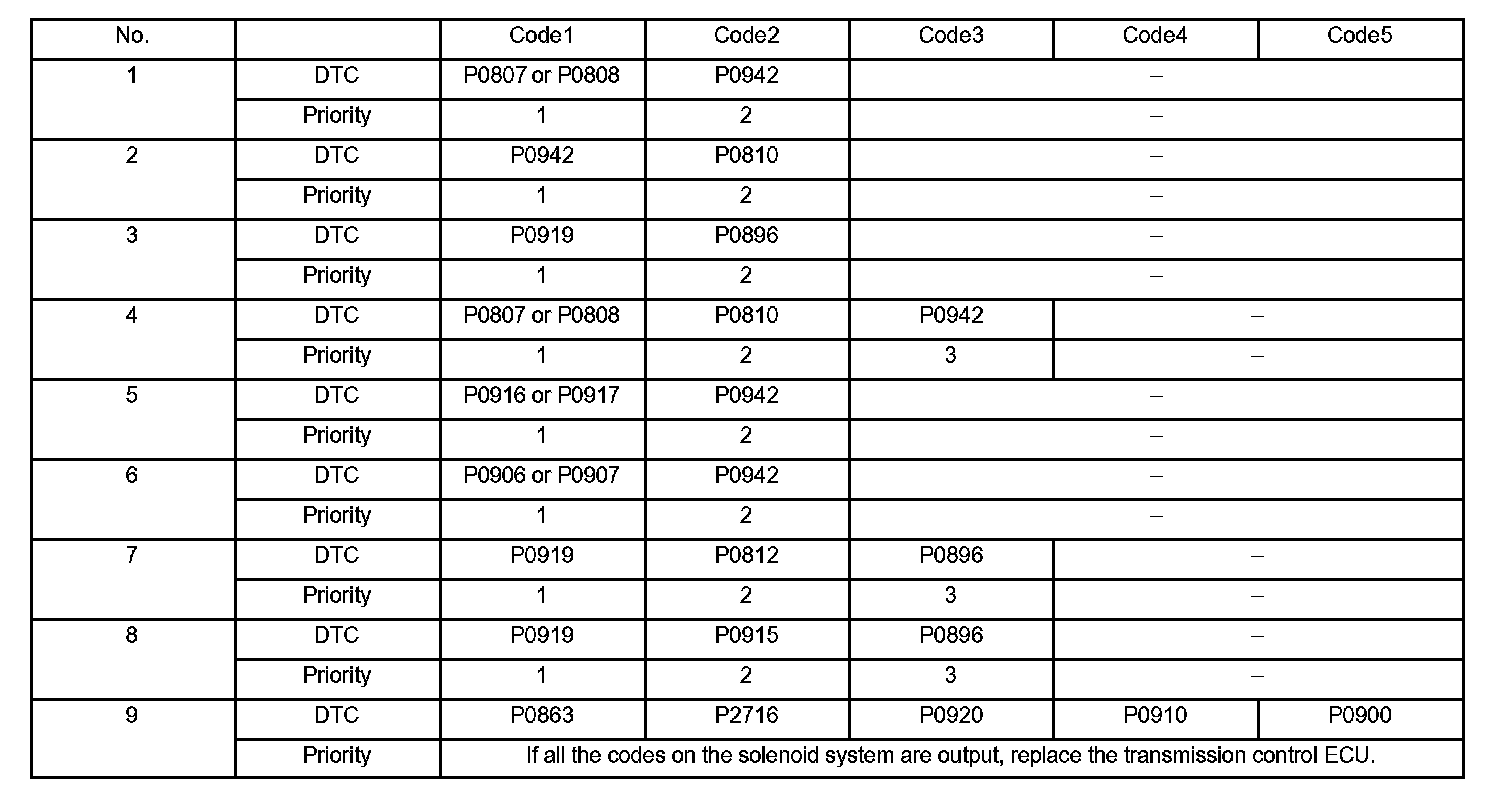

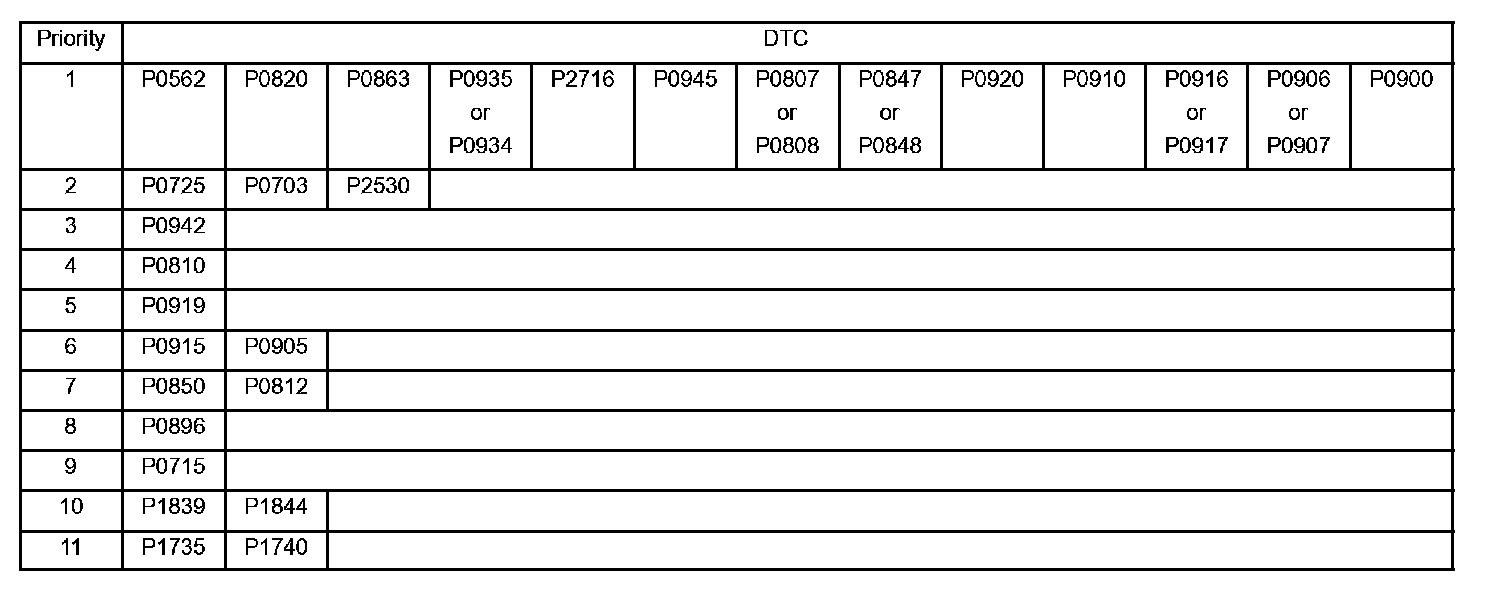

- When DTCs are simultaneously output in the following combinations, obey the inspection priority shown in the table above.
- When DTCs are simultaneously output in other combinations than ones shown above, obey the inspection priority shown in the table above.
If output DTCs have the same priority, the inspection order is not compulsory.
