A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Cruise Control System
Cruise Control System

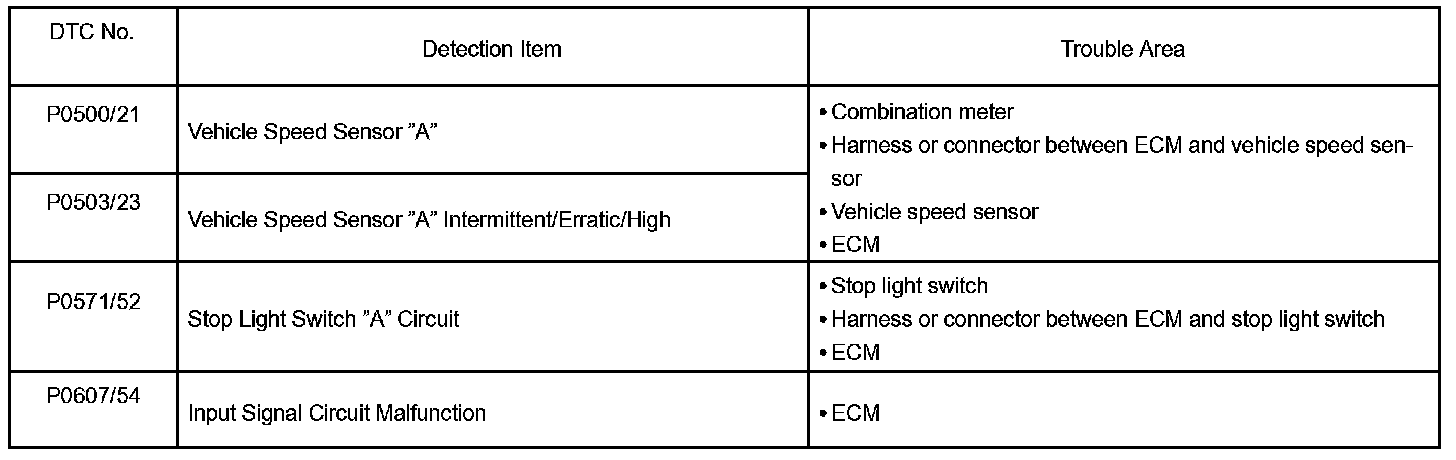

DIAGNOSTIC TROUBLE CODE CHART
P0500/21 - P0607/54:
If a malfunction code is displayed during the DTC check, check the circuit listed by codes in the table and proceed to the appropriate troubleshooting.
