Electronic Power Steering System

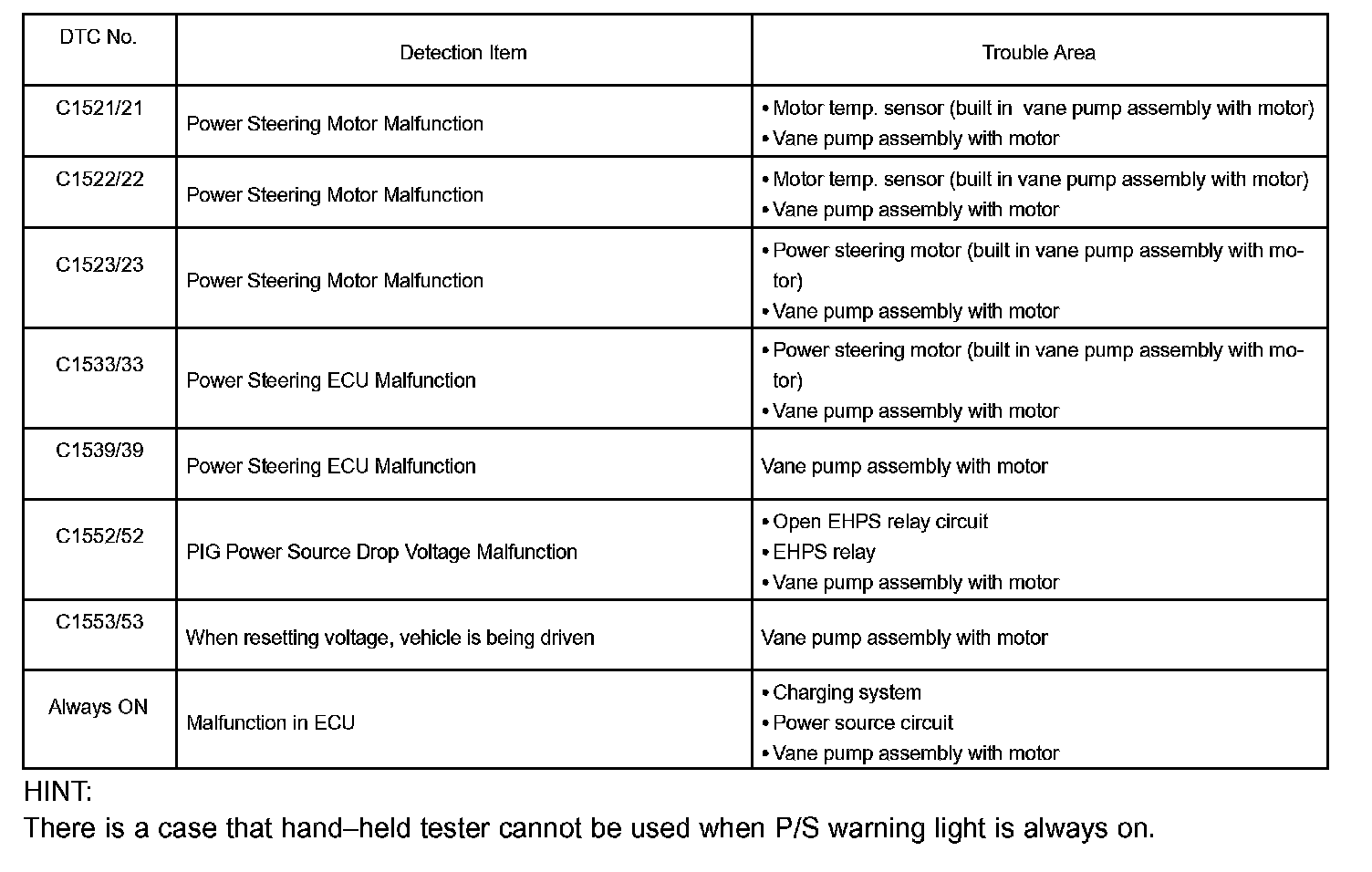

DIAGNOSTIC TROUBLE CODE CHART

C1521/21 - Always ON:

HINT:
- Using SST 09843-18040, connect terminals Tc and CG of the DLC3.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, refer to the respective "DTC No." in the DTC chart.

C1272/72:

DTC of input signal check function
