Radio, Stereo, and Compact Disc

DIAGNOSIS CODE LIST

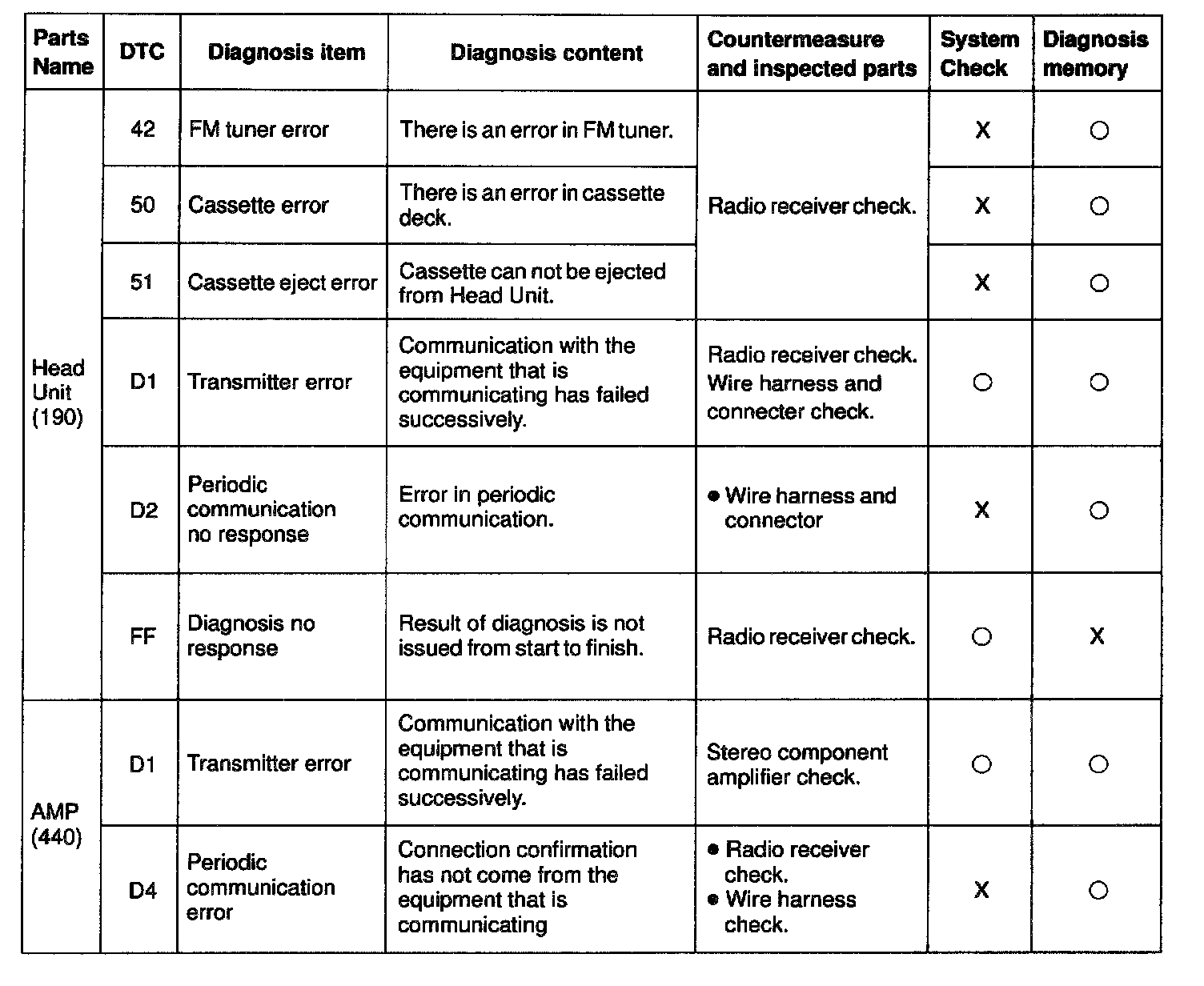

Code No.(Physical Address) List:

Code No. (physical address) List

- If there is "0" in the column of system check, an error can be detected when the mode is switched to the system check mode.
- If there is "0" in the column of diagnosis mode, each unit is monitoring whether or not it has failure.
In case of detecting failure, it memorizes DTC.
