DTC 24

DTC 24 SRL SOLENOID CIRCUIT

CIRCUIT DESCRIPTION

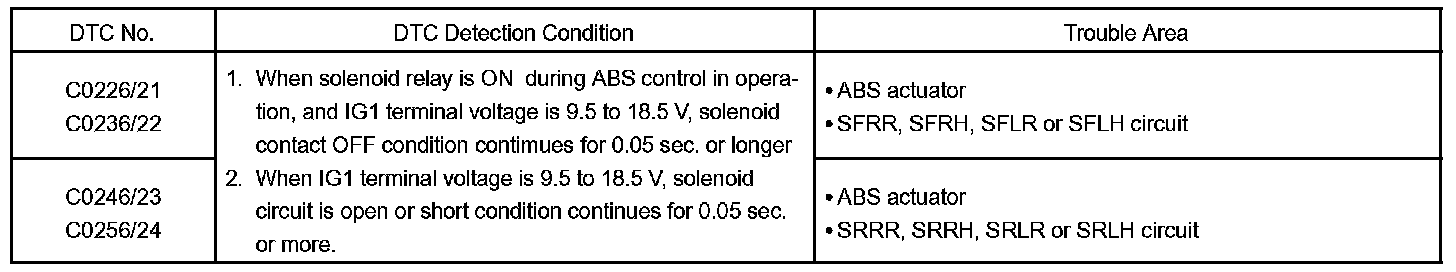

DTC Detection Condition:

The ABS solenoid valve turns on when signals are sent from the ECU and this controls the pressure operating the wheel cylinders, thus the braking force is controlled.

HINT:
- DTC No. C0226/21 is for the right front solenoid valve.
- DTC No. C0236/22 is for the left front solenoid valve.
- DTC No. C0246/23 is for the right rear solenoid valve.
- DTC No. C0256/24 is for the left rear solenoid valve.

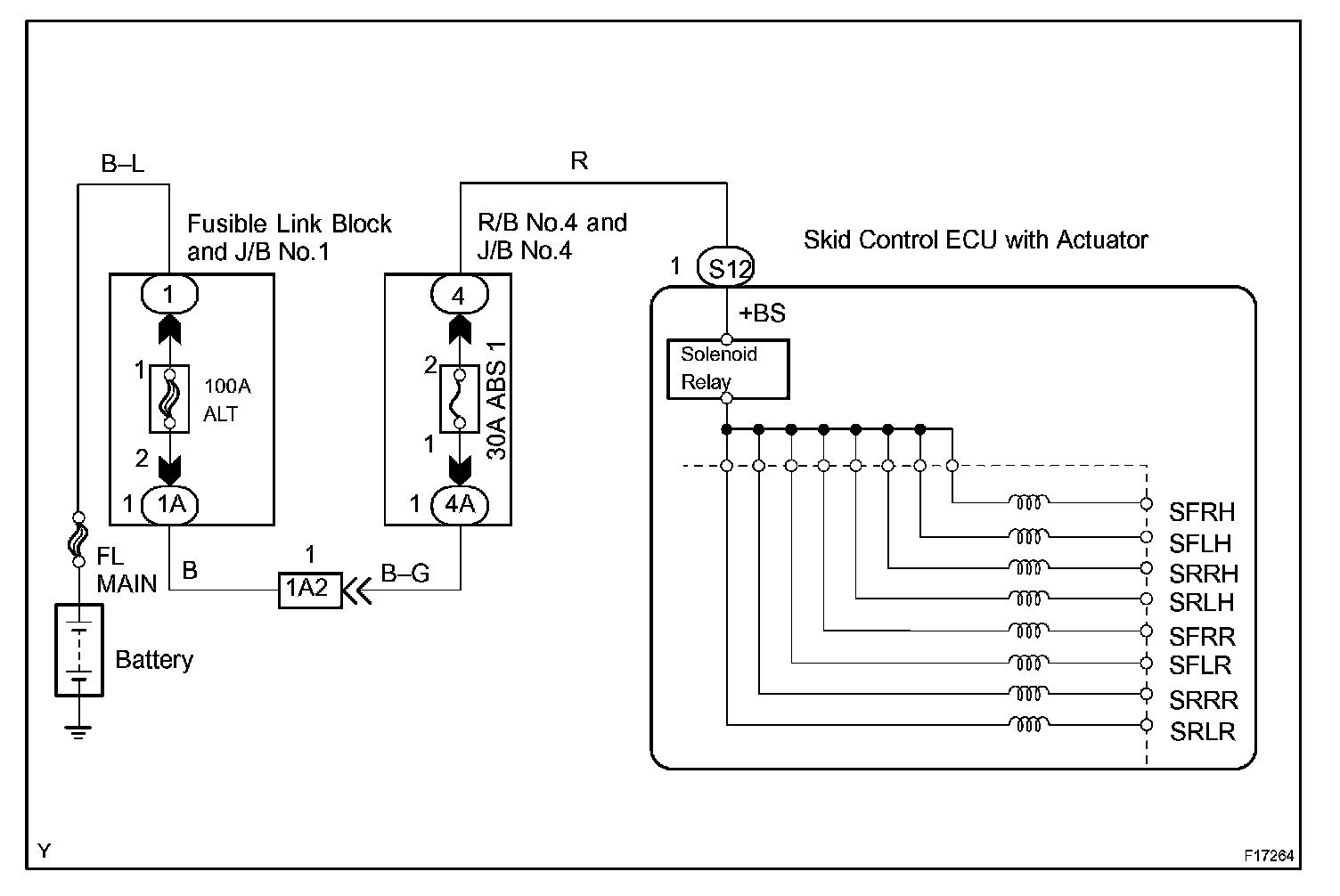

Wiring Diagram:

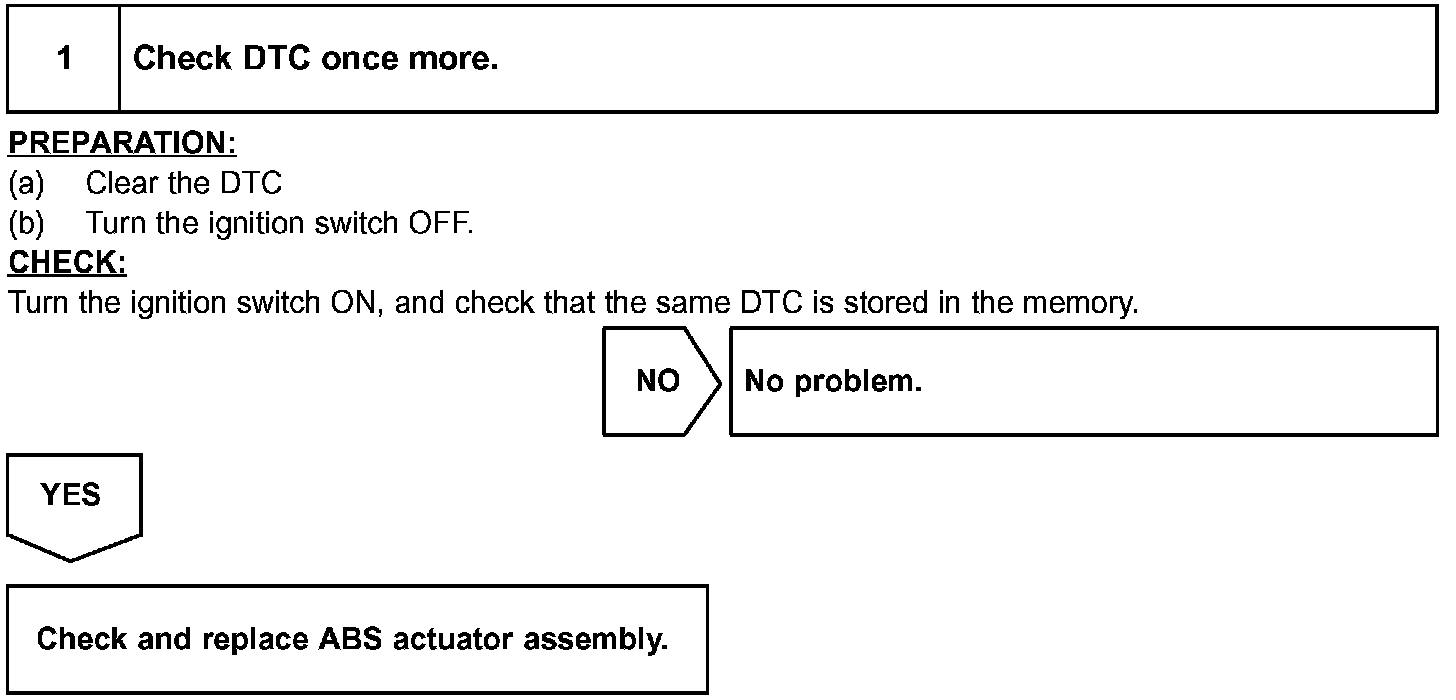

Step 1:

INSPECTION PROCEDURE
