DTC 41

DTC 41 LOW BATTERY POSITIVE VOLTAGE OR ABNORMALLY HIGH BATTERY POSITIVE VOLTAGE

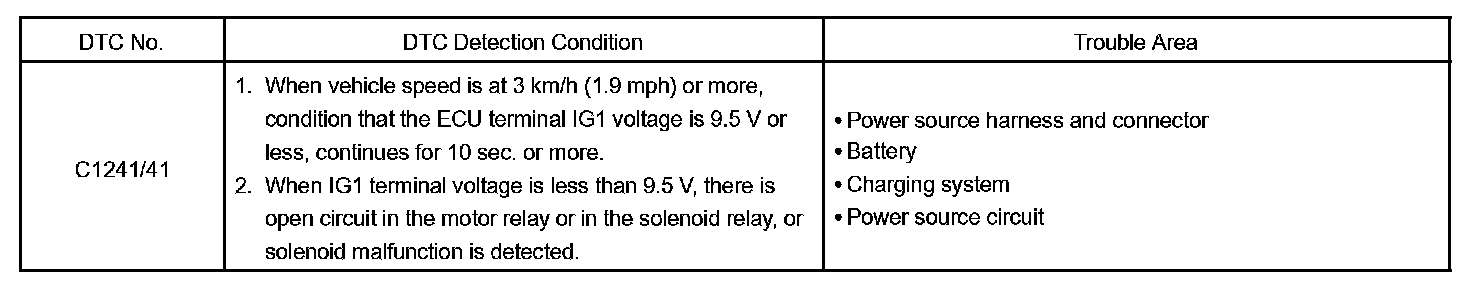

DTC Detection Condition:

CIRCUIT DESCRIPTION

Wiring Diagram:

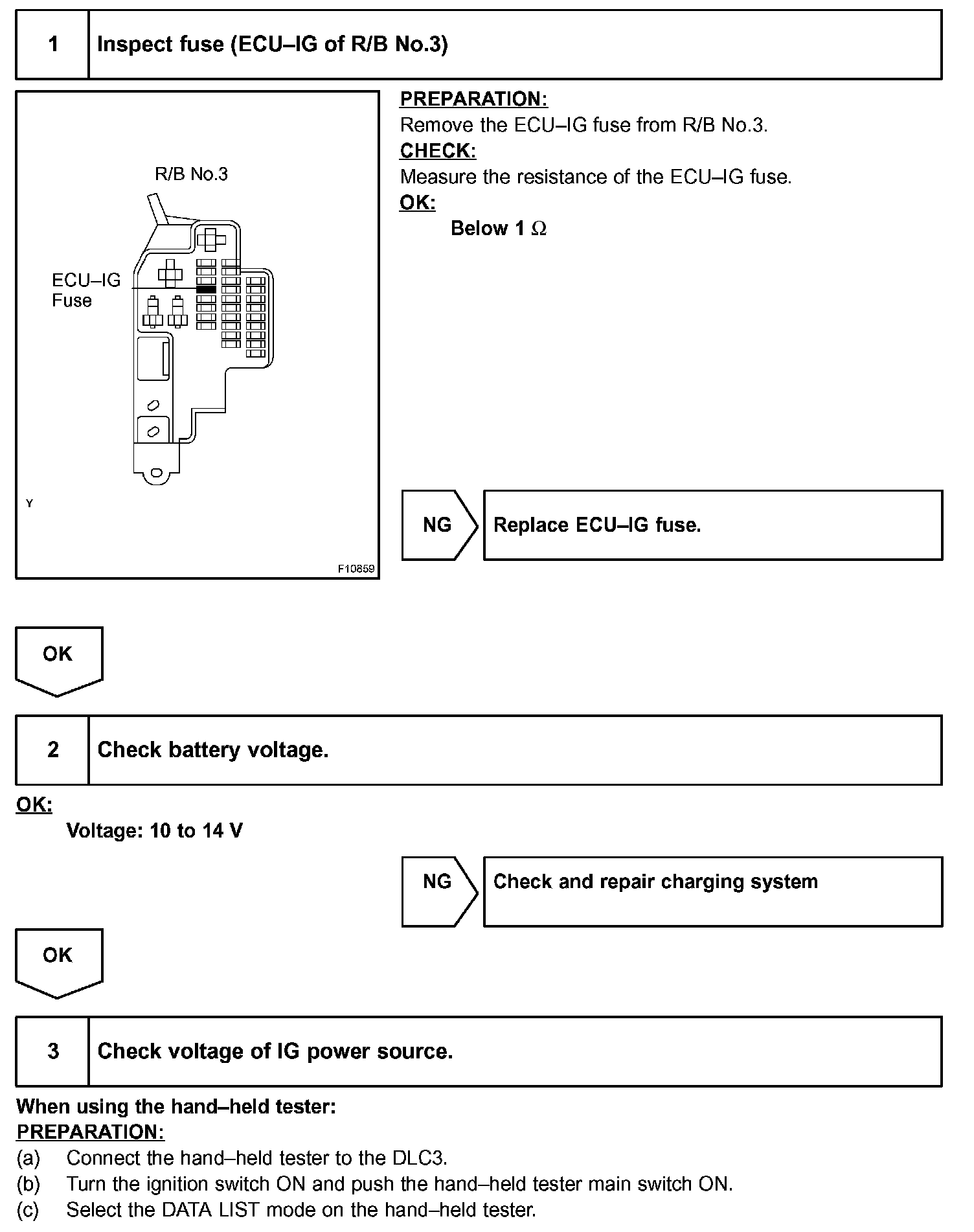

Step 1 - 3:

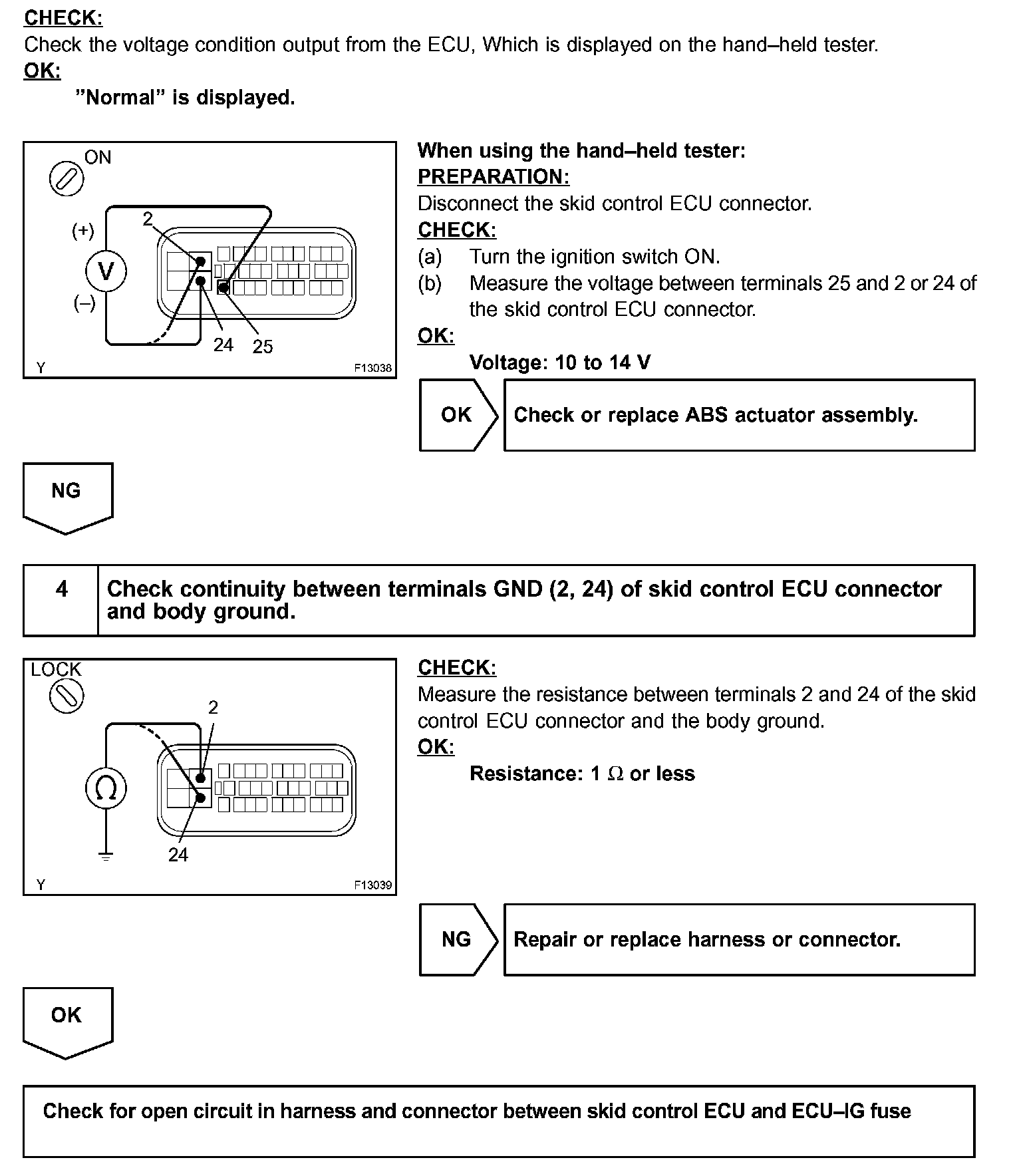

Step 3 (Continued) - 4:

INSPECTION PROCEDURE
