Communication Malfunction No. 1

DTC 99 COMMUNICATION MALFUNCTION NO. 1

CIRCUIT DESCRIPTION

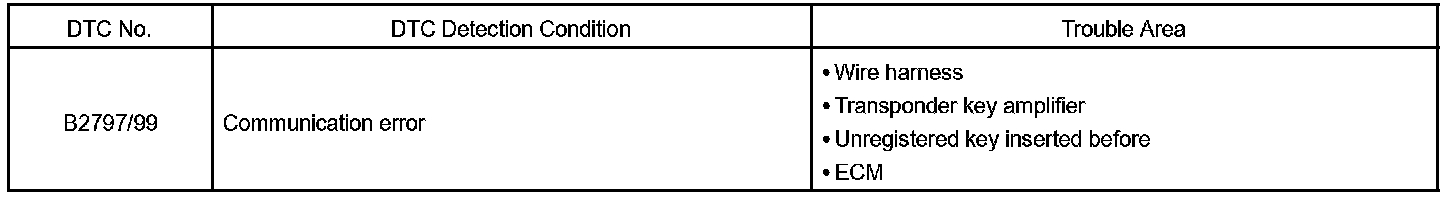

DTC Detection Condition:

This code is detected when an error occurs despite of normal communication.
(Example: Some noise is included in communication line.)

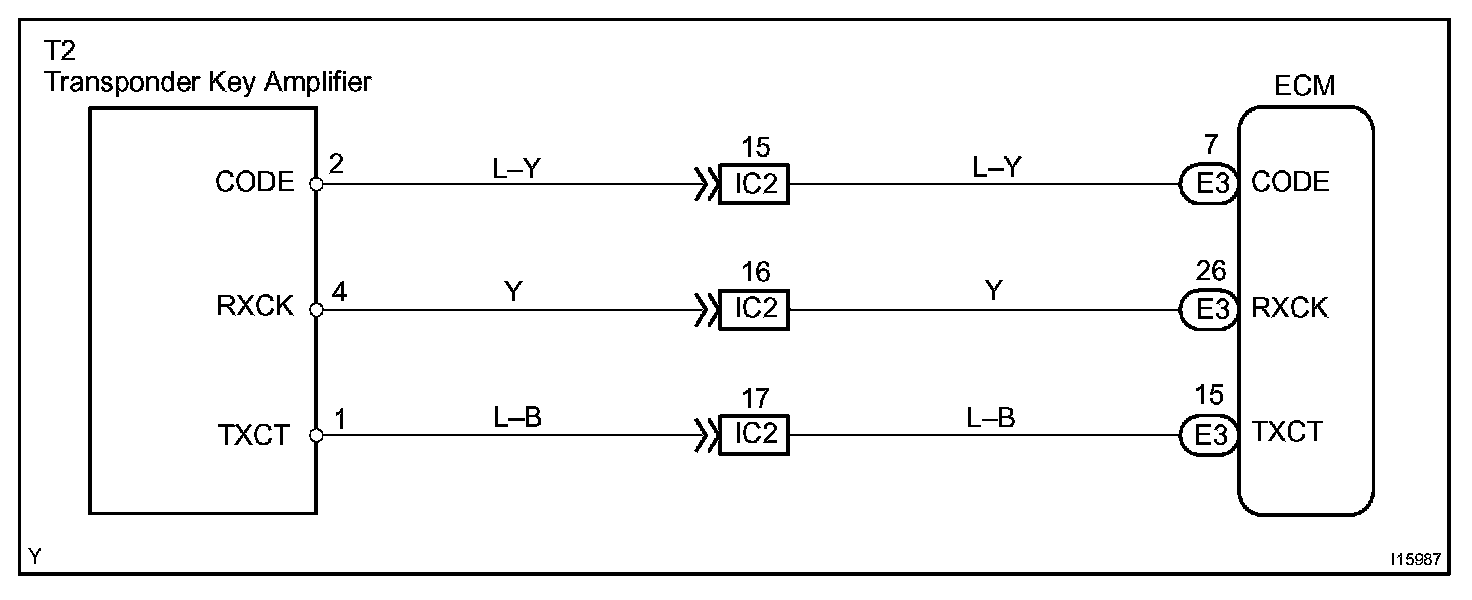

Wiring Diagram:

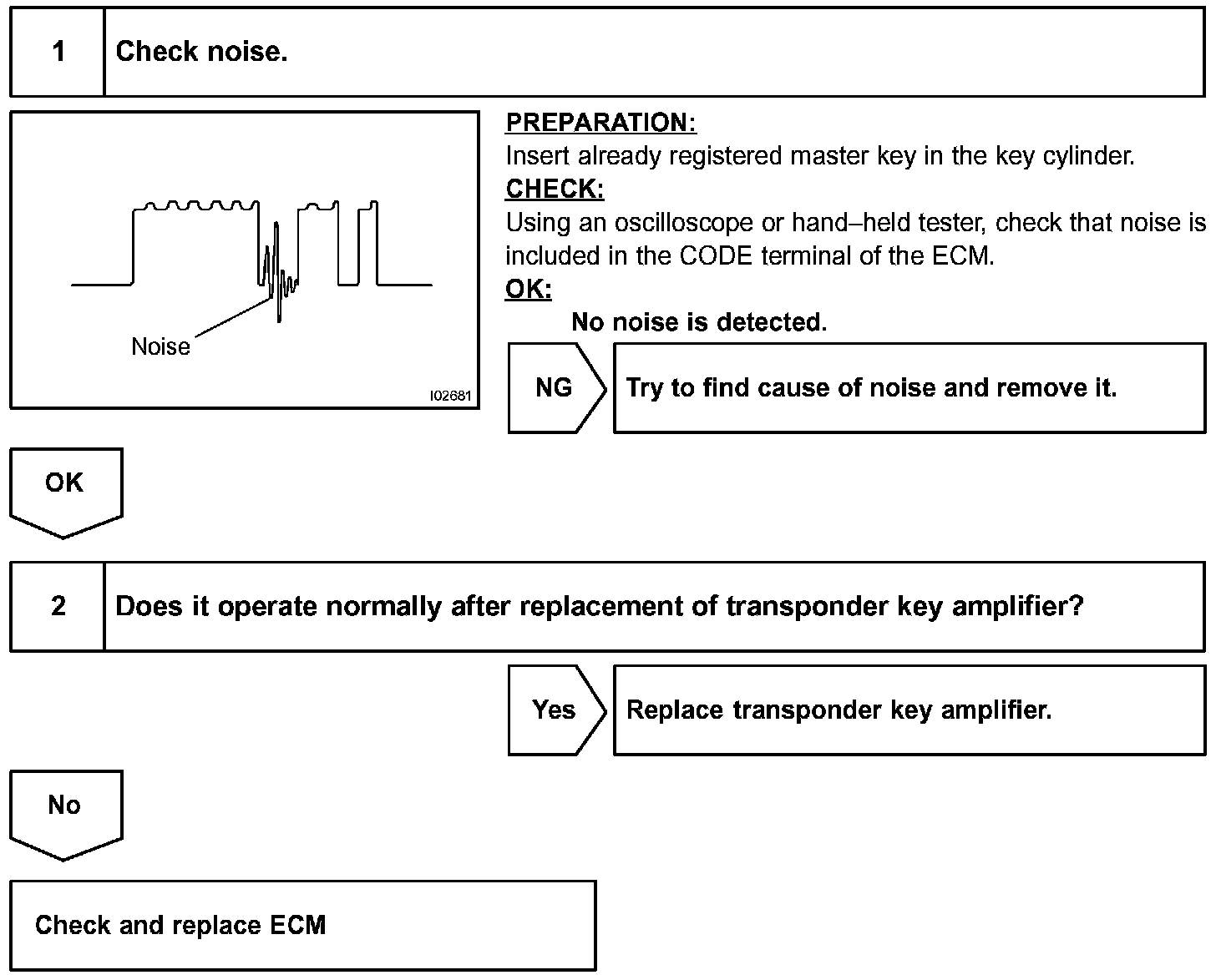

Step 1 - 2:

INSPECTION PROCEDURE
