DTC 99
>>
No Communication In Immobilizer System
No Communication In Immobilizer System
DTC B2796/99 NO COMMUNICATION IN IMMOBILIZER SYSTEM

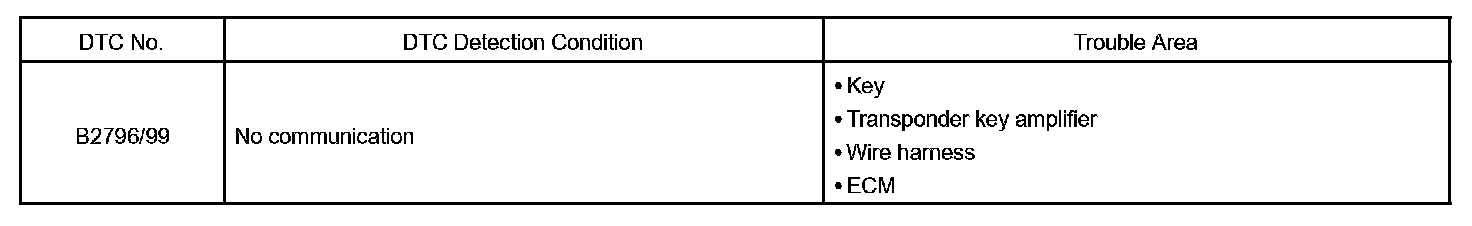

DTC Detection Condition:
CIRCUIT DESCRIPTION
Wiring Diagram:

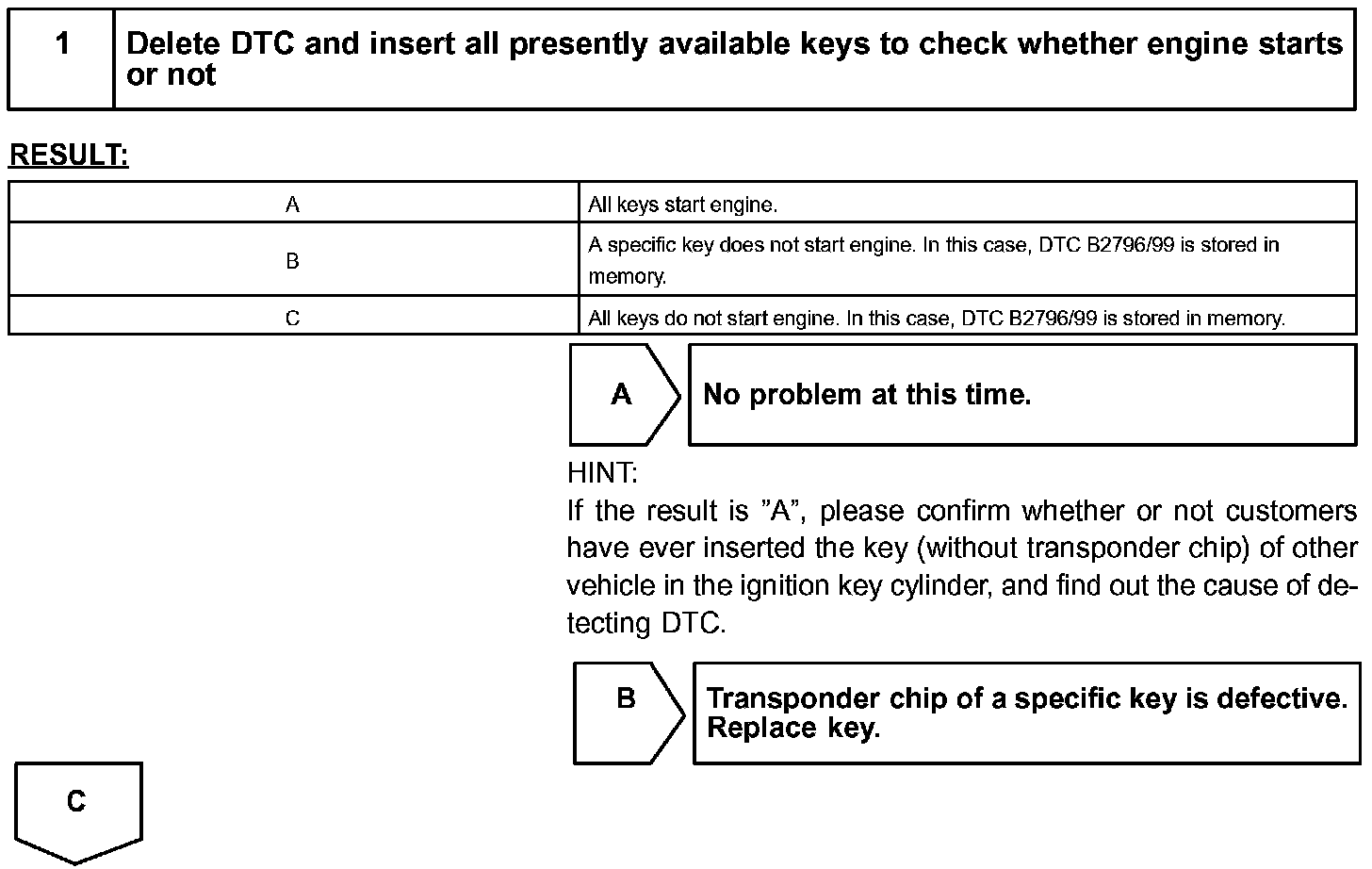

Step 1:

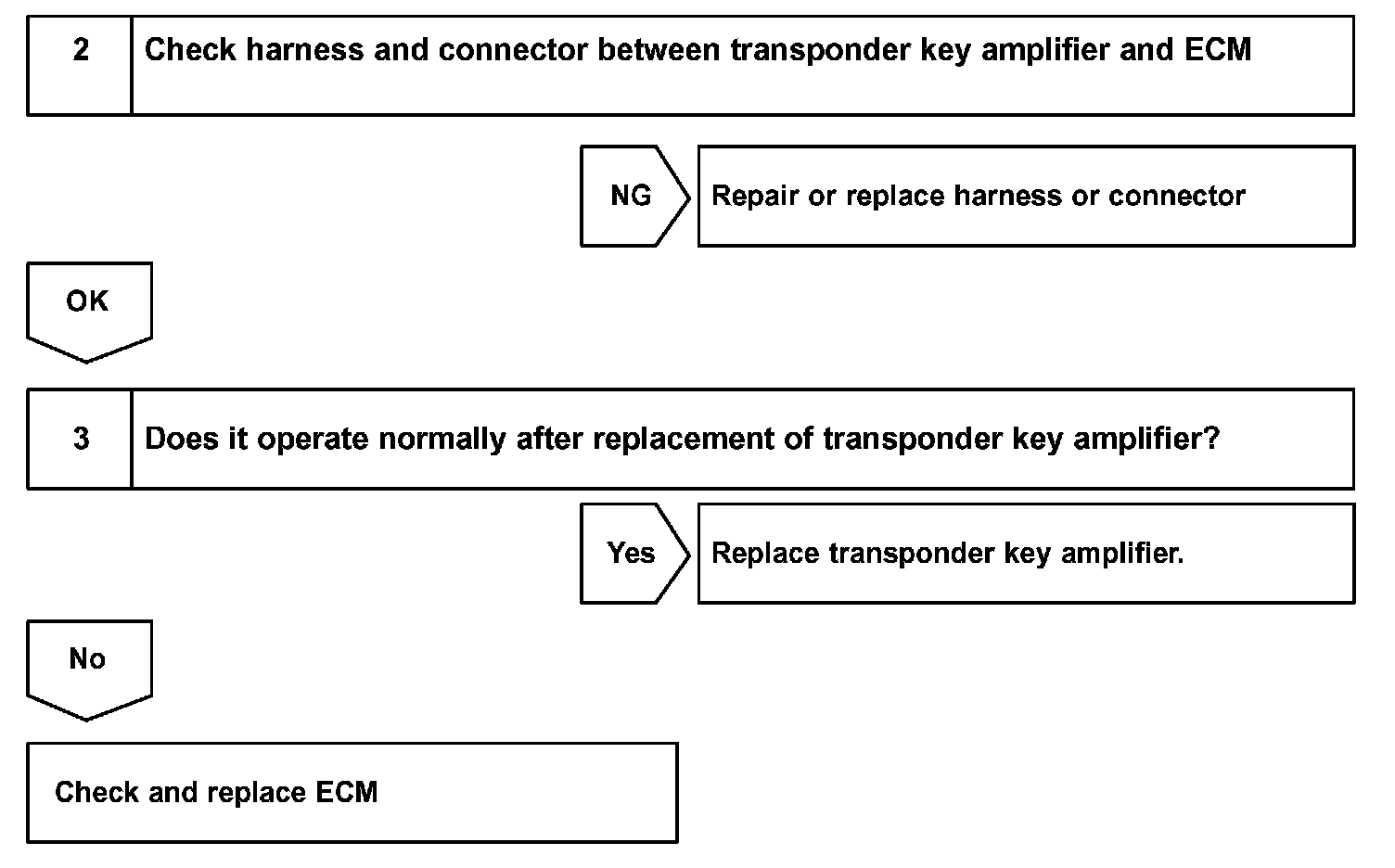

Step 2 - 3:
INSPECTION PROCEDURE
