DTC Always ON - Malfunction In ECU

DTC ALWAYS ON - MALFUNCTION IN ECU

CIRCUIT DESCRIPTION

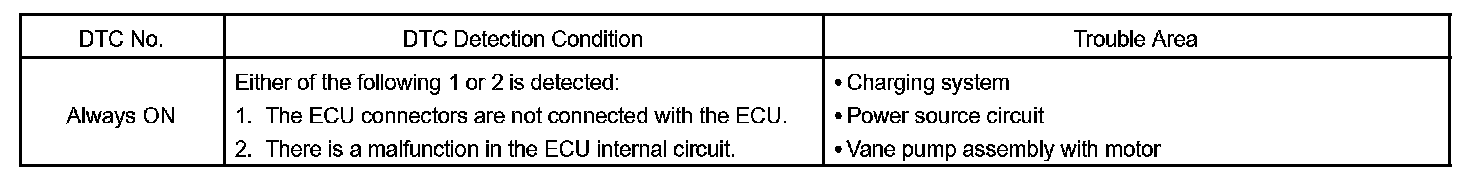

DTC Detection Condition:

HINT: There is a case where hand-held tester cannot be used when ECU is abnormal.

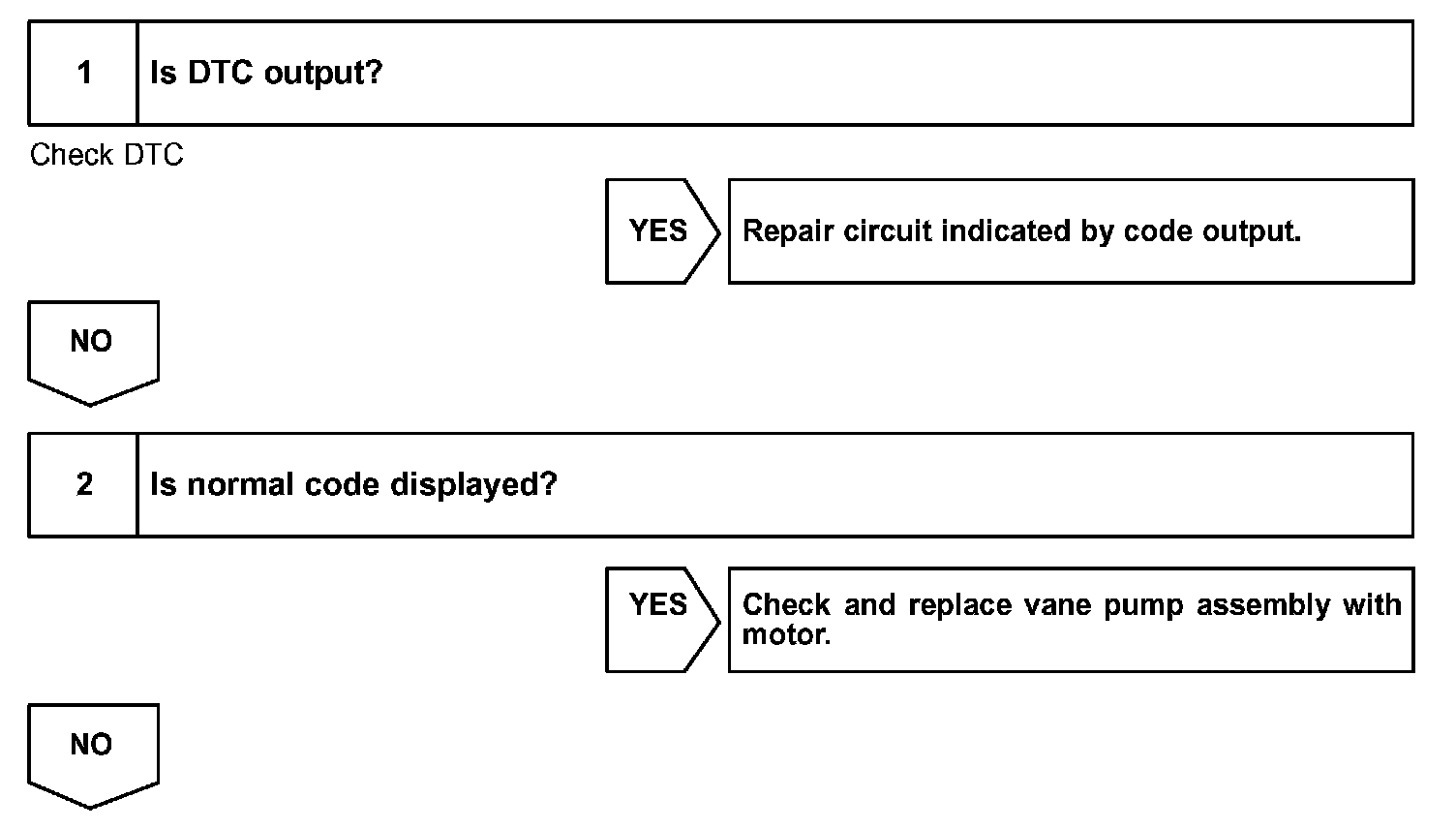

Step 1 - 2:

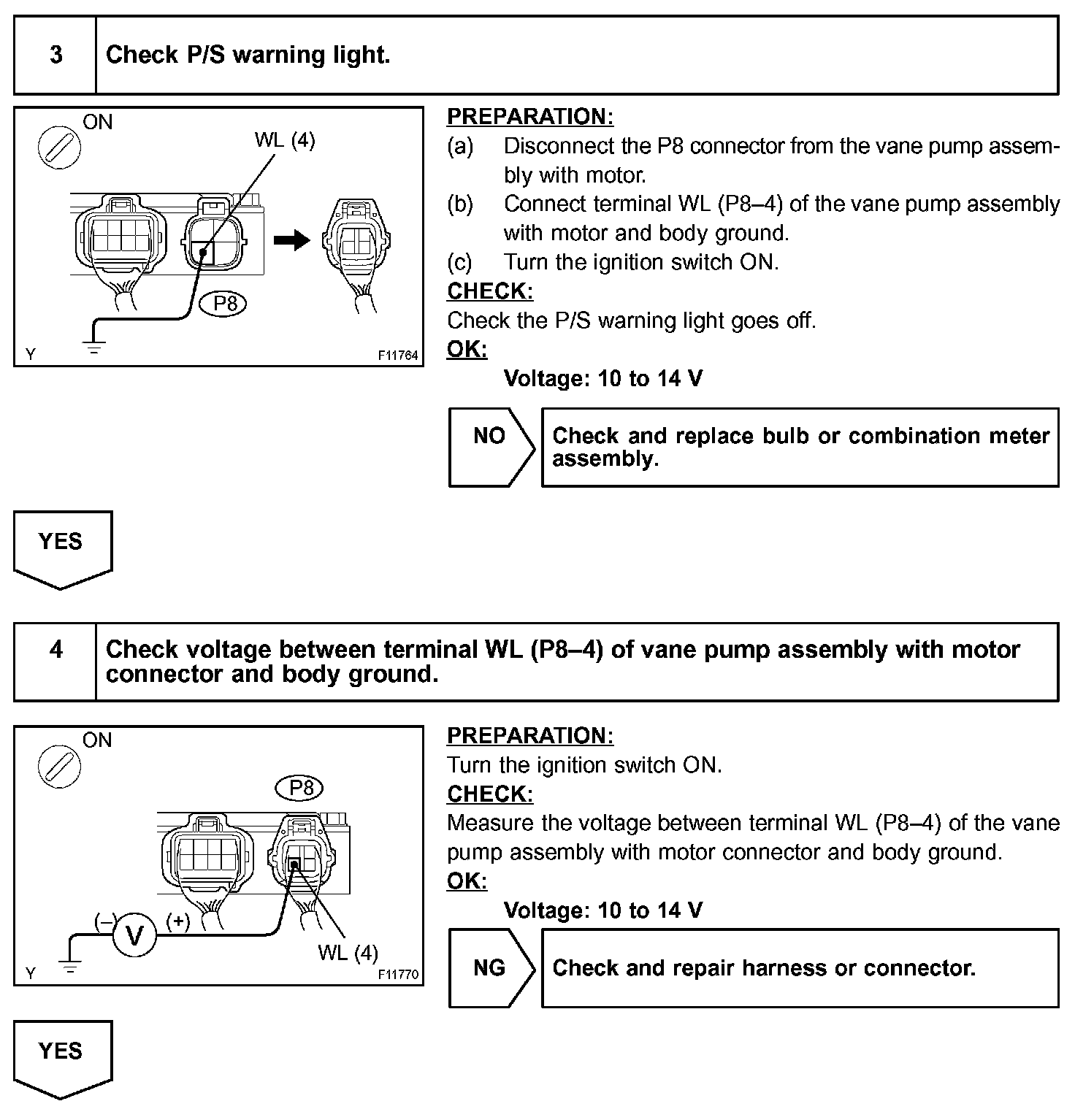

Step 3 - 4:

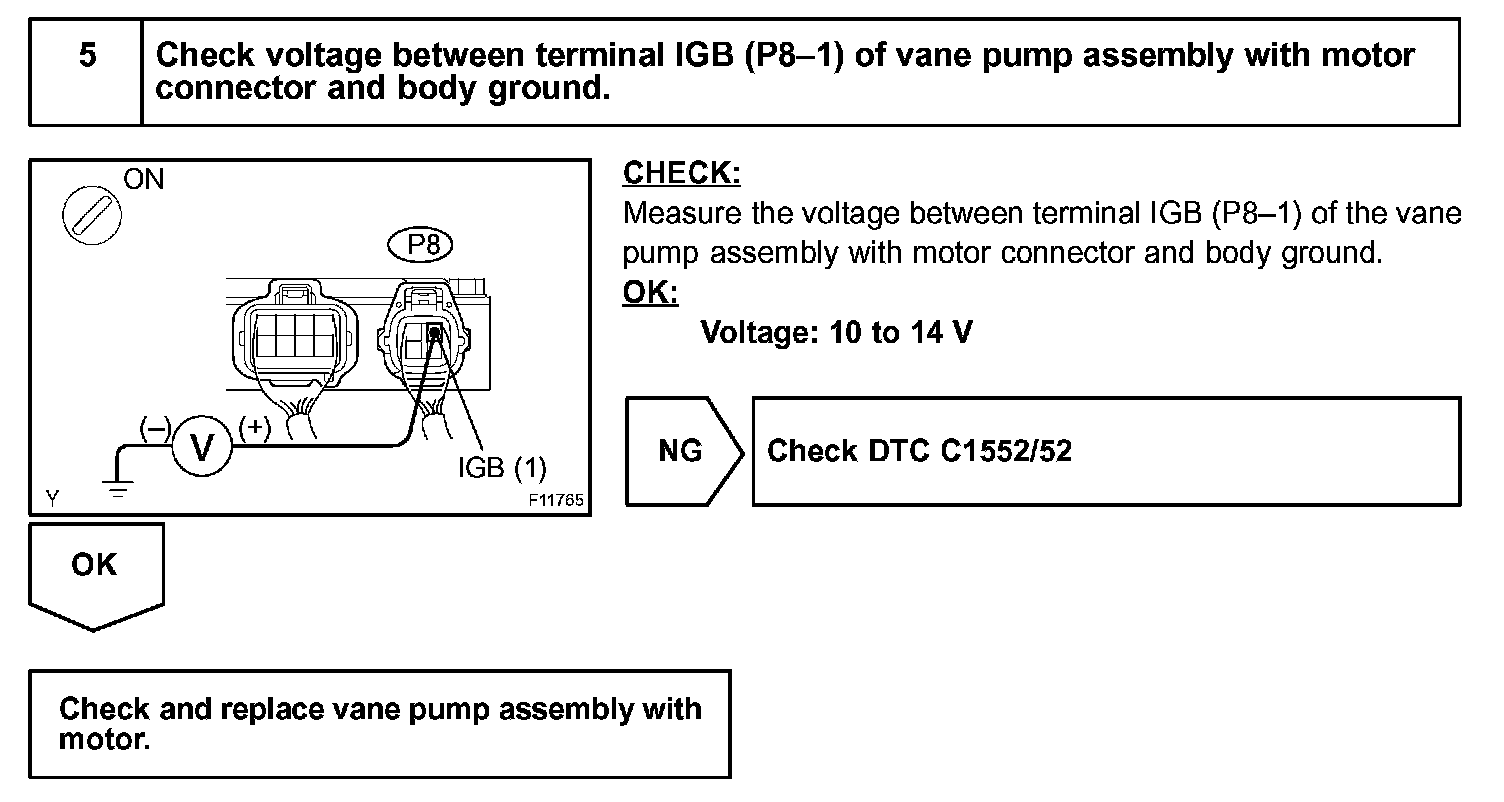

Step 5:

INSPECTION PROCEDURE
